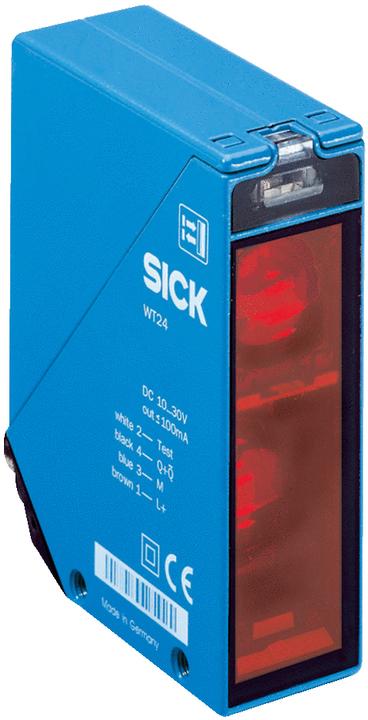

Sick WT24-2V220 diffuse reflection light scanner Manufacturer :Sick Designation :diffuse reflection light scanner Type :WT24-2V220 With time function :yes Rated switching distance :2500 mm Max. switching distance :2500 mm Max. switching distance :2500 mm Version of the interface for safety-related communication :other Version of the electrical connection :terminal Version of the switching output :NPN Equipment protection class :Protection class 2 Housing design :Cuboid Width of the sensor :27 mm Height of the sensor :87.5 mm Length of the sensor :65 mm Scanning function :Light/dark switching Material of the optical surface :Plastic Material of the housing :Metal Max. output current at the safe output :100 mA Max. output current at safe output :100 mA Ambient temperature :60 °C Response time :0.5 ms Switching frequency :1000 Hz Rated control supply voltage Us at AC 50 Hz :10 V Voltage type :DC Light type :Infrared light Protection class (IP) :IP67 Sick WT24-2V220 diffuse reflection light scanners: further details Compact photoelectric sensors, W24-2, WT24-2V220, Sensor principle: Diffuse reflection light scanner, Detection principle: Background suppression, Switching output: NPN, PNP, Switching type: Light/dark switching, Connection type: Terminal connection with M16 screw connection, Light emitter: LED, Setting: potentiometer, Communication interface: - , EAN: 4047084122170.
