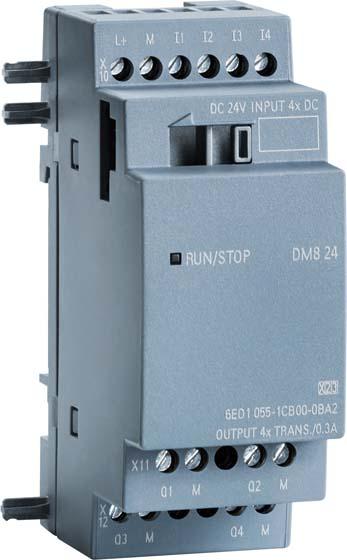

Siemens Dig.Industr. SIPLUS LOGO! 6AG1055-1CB00-7BA2

Manufacturer: Siemens Dig.Industr.
Designation: SIPLUS LOGO! DM8 24 based
Type: 6AG1055-1CB00-7BA2
Supply voltage at DC: 20.4..28.8 V
Type of supply voltage: DC
Number of digital inputs: 4
Number of digital outputs: 4
Configurable digital inputs: yes
Configurable digital outputs: yes
Input current at signal 1: 4 mA
Permissible voltage at input: 0..28.8 V
Type of input voltage: DC
Type of digital output: Transistor
Output current: 0.3 A
Permissible voltage at output: 0..28.8 V
Type of output voltage: DC
Short-circuit protection, outputs available: yes
Redundancy capability: no
Type of electrical connection: Screw/spring terminal connection
Delay time on signal change: 1.5..2 ms
Suitable for safety functions: no
Associated operating equipment (Ex ia): no
Associated operating equipment (Ex ib): no
Explosion protection category for gas: none
Explosion protection category for dust: none
Width: 35.5 mm
Height: 90 mm
Depth: 58 mm

SIPLUS LOGO! DM8 24 is based on 6ED1055-1CB00-0BA2 with conformal coating, -40 +70°C, start-up -25°C, expansion module, SV/E/A: 24V/24V/trans., 4 DI/4 DO for LOGO! 8. The LOGO! expansion modules allow for a highly customizable LOGO! configuration. A LOGO! 8 base unit can be expanded to 24 digital inputs, 20 digital outputs, 8 analog inputs, and 8 analog outputs. Ten different expansion modules are available, enabling the addition of digital and analog inputs and outputs with varying input voltages. SIPLUS extreme is ideal when your automation components are exposed to fluctuating temperatures, high humidity, and even condensation and frost. This ensures reliable functionality.
EAN: 4047618064181.
