Siemens Dig.Industr. motion detector UP 251/11

Manufacturer: Siemens Dig.Industr.
Designation: Motion detector
Type: UP 251/11
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Without
Radio bidirectional: No
Design: Presence detector
Mounting type: Flush-mounted
Material: Plastic
Material quality: Thermoplastic
Surface protection: Other
Surface finish: Matt
Colour: Grey
RAL number (similar): 7016
Transparent: No
With bus coupling: Yes
Min. depth of device box: 60 mm

Siemens Dig.Industr. motion detector UP 251/11: more details

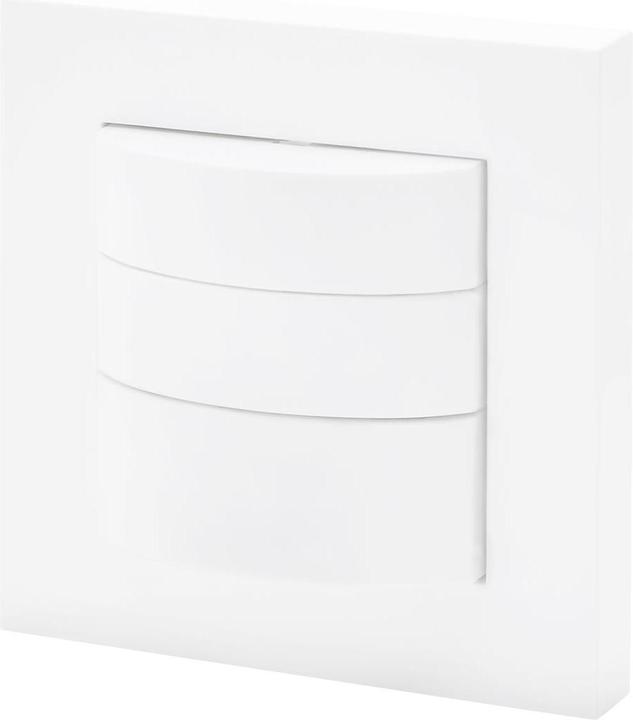

Passive infrared detector for wall mounting in stairwells and corridors

• Motion detection angle of 180°
• Motion detection up to 18 m frontally and 4-14 m (depending on the detection angle) laterally
• Separate frame in the packaging
• Brightness, temperature, and relative humidity measurement
• Integrated pushbutton for overriding the controlled light or for sending commands for light, blinds, and scenes
• Integrated bus coupling unit, bus connection via bus terminal, operation of the electronics via bus voltage
• LED for displaying detected movements in the delivered state for easy commissioning
• Height: 1.10 m, valid for sockets type CEE/VDE, China, and Switzerland
• Colour white (similar to RAL 9010)
• Protection class: IP 20
• EAN: 4047625022921.
