Siemens Dig.Industr. Ultrasonic Sensor 7ML1118-0CA30

Manufacturer: Siemens Dig.Industr.
Description: Ultrasonic Sensor 15m
Type: 7ML1118-0CA30
Analog output type: other
Electrical connection type: plug connection
Switch output type: other
Switch function type: other
Adjustment method: manual adjustment
Explosion protection category for gas: other
Explosion protection category for dust: other
Housing design: special design
Interface standard: other
Voltage type: other
Synchronization possible: no
Material of the sensor's active area: other
Material of the housing: other
Material of the cable sheath: other

Further details:

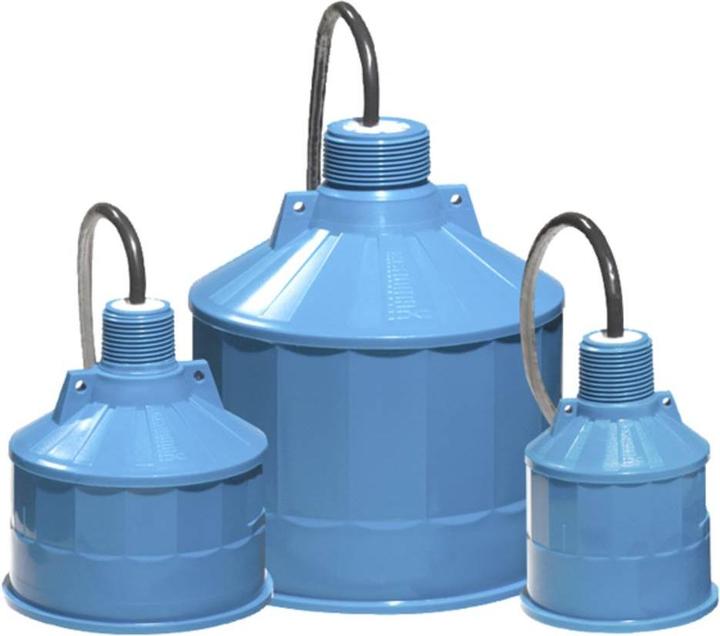

The Echomax® XPS/XCT ultrasonic sensors utilize ultrasonic technology for level measurement in a wide range of liquids and bulk materials. They are flood-proof, resistant to steam and aggressive chemicals, and can be installed without a flange. The XPS series offers versions for various measuring ranges up to 40 m and a maximum temperature of +95 °C. In applications with high temperatures, the XCT series can be used. It measures levels in measuring ranges up to 12 m and temperatures of up to +145 °C. During operation, the Echomax ultrasonic sensors emit acoustic pulses in a narrow sound cone. The level measuring transducer measures the time taken between sending the pulse and receiving the echo, calculating the distance from the sensor to the material.
EAN: 4019169849562.
