SKF Single action thrust ball bearings
Price in EUR including VAT, plus shipping
Delivered between Sat, 31.5. and Tue, 3.6.
Only 3 items in stock at supplier
Only 3 items in stock at supplier
Product details

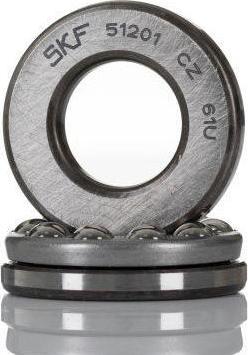

SKF axial deep groove ball bearing, single acting, 51201 12 x 28 x 11
Bearing series 511, 512

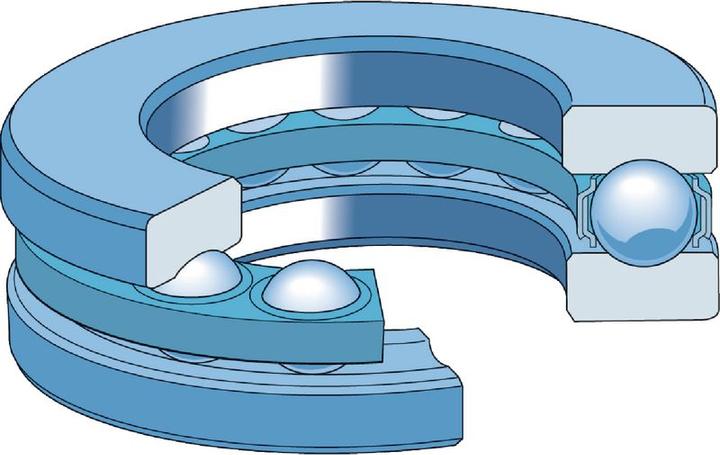

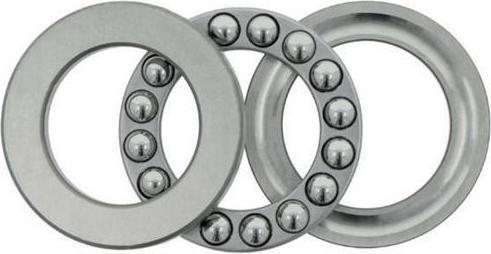

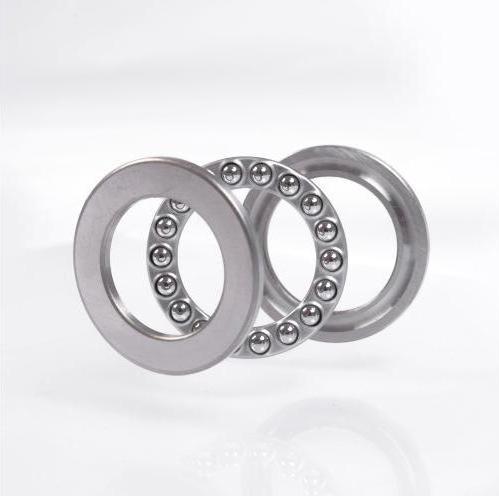

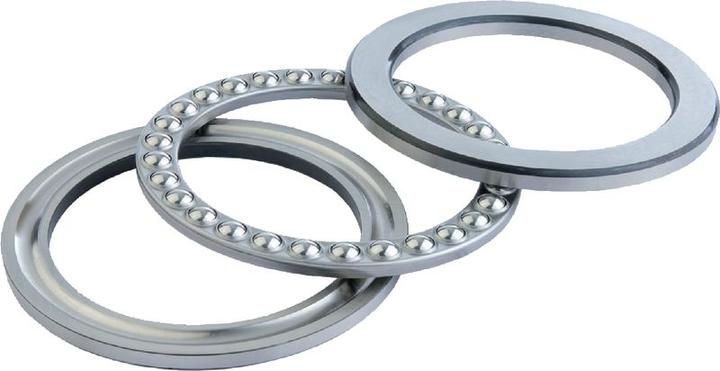

Single acting axial deep groove ball bearings are suitable for absorbing axial loads in one direction and can support the shaft on one side, but they must not be subjected to radial loads. They consist of a shaft washer, a housing washer, and a ball set held by a cage. Due to their design, the bearings are not self-retaining, allowing for separate installation of the bearing components, making it straightforward. Cage made of steel sheet. Main dimensions according to DIN 616:2000 / ISO 104:2002.
Ball bearing type | Deep groove ball bearing |
Outside diameter | 28 mm |
Internal diameter | 12 mm |
Width | 11 mm |
Item number | 9984373 |
Manufacturer | SKF |
Category | Ball bearings |
Manufacturer no. | 51201 7316577006769 |
Release date | 24.10.2018 |
Material group | Metal |
Material | Standard rolling bearing steel |
Ball bearing type | Deep groove ball bearing |
Load rating dyn. | 13.30 kN |
Load rating stat. | 20.80 kN |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Axial deep groove ball bearings only, Without washer(s) |
Outside diameter | 28 mm |
Internal diameter | 12 mm |
Width | 11 mm |
Weight | 34 g |
Specifications may include unverified machine translations.
