SKF Spherical Roller Bearing, Open Design, 22215 EK 75x130x31

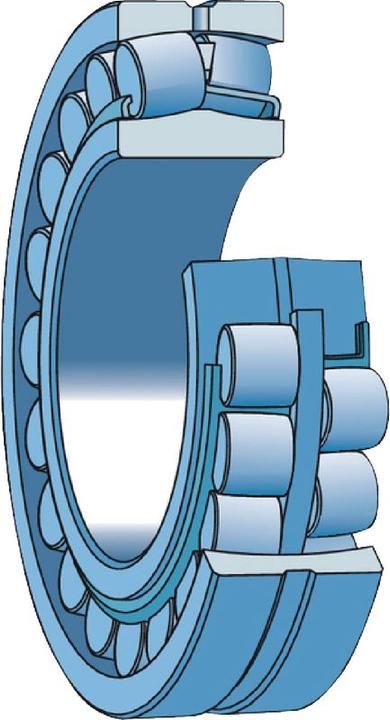

This design features cylindrical and tapered bore. Spherical roller bearings have two rows of rollers with a common sphered raceway in the outer ring and two inclined raceways on the inner ring. This combination provides a range of advantageous properties that make them indispensable for many demanding bearing applications. Spherical roller bearings are angularly movable and therefore insensitive to misalignment of the shaft to the housing or shaft deflections. They are exceptionally high-load radial bearings and can also accommodate relatively high axial loads in both directions.

Main dimensions: DIN 635-2:1984 / DIN 5416:1990 / ISO 2982-1:1995

Suffixes:
E Optimized internal design
K Tapered bore, taper 1:12
C3 Clearance greater than normal.
