SSF Panic mortice lock Series 20 APE Panic function E rounded 20/65/72/9 mm DIN right Stainless steel
Mortise lockPrice in EUR including VAT
free shipping

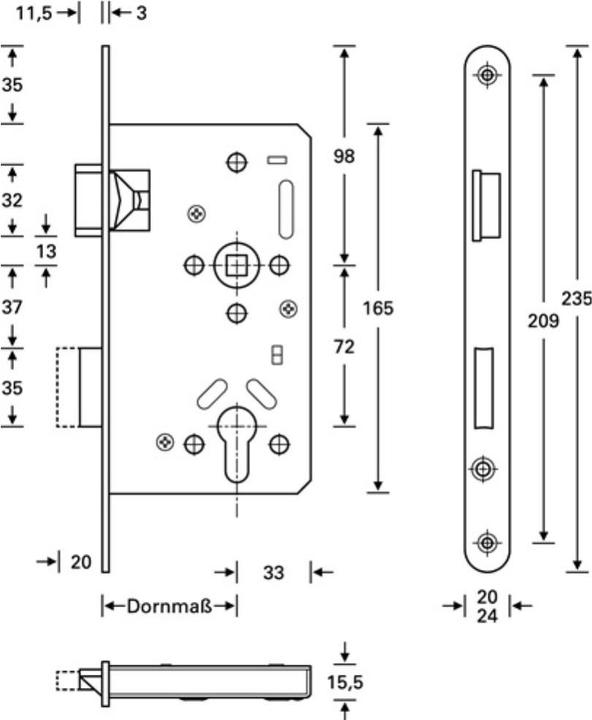

Panic exit function E is designed for single-leaf timber or steel doors. It is suitable for fire protection according to DIN 18250 class 3 and DIN EN 179. The PZW version features a two-turn latch made of steel with a malleable iron head, nickel plated. The deadbolt is also made of steel and nickel plated. The distance is 72 mm with a square of 9 mm. The forend length is 235 mm, made of rounded stainless steel. The lock case is closed on all sides and cannot be combined with other locks. The bolt is made of steel and nickel plated. Additional technical features include a bolt made of steel, compliance with DIN 18250 and EN 179 standards, and a closed lock case. The latch is made of steel.
applicability | Object door |
Material | Stainless steel |
Item number | 22131944 |
Manufacturer | SSF |
Category | Lock cylinders |
Manufacturer no. | A2001A5L/502 |
Release date | 9.9.2022 |
Colour | Silver |
Exact colour description | Stainless steel |
Material group | Metal |
Material | Stainless steel |
Surface finish | Nickel plated |
Escape route standard | EN 179 |
Cylinder + Key Type | Door lock |
applicability | Object door |
Lock cylinder type | Mortise lock |
Lock cylinder version | Profile cylinder |
Forend form | Round |
Distance | 72 mm |
Closure | E |
Suitable door type | single-winged |
Panic function | E |
Escape direction | DIN right |
mandrel diameter | 65 mm |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | 1x SSF panic mortise lock Series 20 APE Panic function E rounded |
Length | 245 mm |
Width | 105 mm |
Height | 30 mm |
Weight | 0.84 kg |
