Stahl 8146/1S73-C1162
5 pieces in stock at supplier
Product details
The terminal box type 8146/1S73-C1162 from Stahl is an explosion-proof device designed for use in hazardous environments. With a rated operating voltage of up to 690 V and a connection cross-section of 4 mm², this product offers a reliable solution for the safe connection of electrical cables. The housing is made of fiberglass-reinforced polyester resin, which is not only robust but also suitable for outdoor use. The terminal box meets the requirements of protection classes II 2 G Ex eb IIC T6....T5 Gb for gas explosion protection and II 2 D Ex tb IIIC T80 °C ....T95 °C Db for dust explosion protection. With a temperature range of -30 °C to +40 °C, it is versatile and ensures high operational safety in various environments. The installation is surface-mounted, which facilitates installation and increases flexibility.
- Suitable for zones 1, 2, 21, and 22 for explosion-risk areas
- Protection class IP66 for high resistance to dust and water
- Temperature range of -30 °C to +40 °C for versatile applications
- Housing made of fiberglass-reinforced polyester resin for increased robustness
- Mounting type: surface-mounted for easy installation.
Junction box type | Connector socket |
Protection type (IP code) | IP66 |

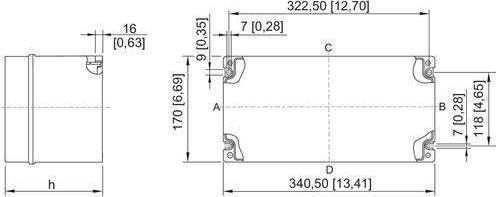

Height | 170 mm |
Width | 340.50 mm |
Length | 150 mm |
Item number | 34047296 |
Manufacturer | Stahl |
Category | Junction box |
Manufacturer No. | 136243 |
Release date | 17.5.2023 |
Colour | Grey |
Exact colour description | Dark grey |
Material group | Plastic |
Material | Glass fibre reinforced, Polyester resin |
Junction box type | Connector socket |
mounting style | Finery |
Area of use | Outside |
Protection type (IP code) | IP66 |
Country of origin | Germany |
CO₂ emissions | 1,12 kg |
Climate contribution | EUR 0,12 |
Items per sales unit | 1 pcs. |
Height | 170 mm |
Width | 340.50 mm |
Length | 150 mm |
