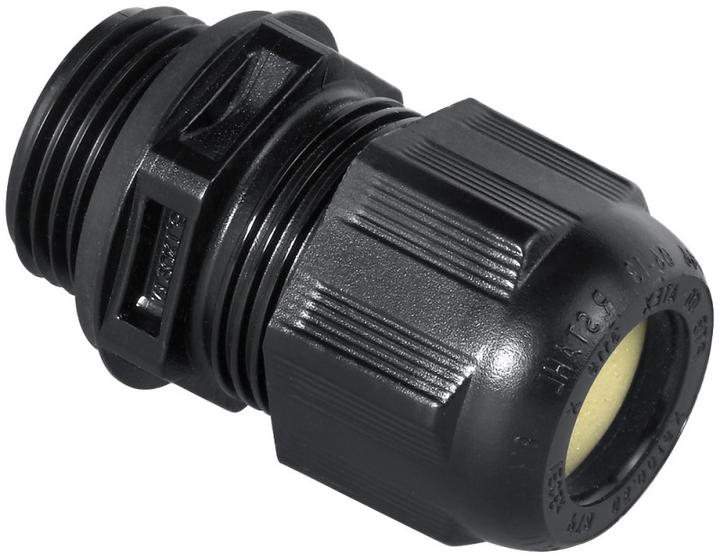

Stahl Exe Cable Gland 8161/7-M25-1710

Manufacturer: Stahl
Designation: Exe Cable Gland M25x1.5, 10-17mm
Type: 8161/7-M25-1710
Thread Type: Metric
Nominal Thread Size Metric/PG: 25
Thread Pitch: 1.5 mm
Thread Length: 10 mm
Width Across Flats: 29 mm
Hex Size: 32 mm
Suitable for Cable Diameters: 10 to 17 mm
Material: Plastic
Material Quality: Polyamide (PA)
Surface Protection: Untreated
Halogen-Free: Yes
Glass Fiber Reinforced: Yes
Protection Class (IP): IP66
Impact Resistant: Yes
Color: Black
RAL Number: 9004
Bend Resistance: No
With Locknut: No
With Opening Engagement: No
Design: Straight
Multiple Seal Insert: No
Flat Cable Gland: No
With Strain Relief: No
Seal Type: O-Ring
Disconnectable Gland: Yes
Operating Temperature: -40 to 75 °C
Explosion-Proof Version: Yes
For Ex Zone Gas: 1, 2
For Ex Zone Dust: 21, 22
For Armored Cables: No
EMC Version: No
Shielded: No

The cable glands of series 8161/7 and 8161/8 from R. Stahl are used for secure cable entry into Ex e enclosures. They are suitable for cable diameters from 1 to 48 mm. They are available for Ex e and Ex i circuits; the Ex i version is marked by a blue cap nut. A sealing plug for unused entries can be integrated into the entries.

Cable gland without reducer seal insert, explosion-proof, Type: 8161/7-M25-1710, Thread Size: M25x1.5 mm, Thread Length: 10 mm, Material: Polyamide, Color: Black, Clamping Range: 10 to 17 mm, Width Across Flats: 29.00 mm, Type of Armor: Unprotected cable types, Application Area (Zones): 1, 2, 21, 22, Protection Class (IP): IP66.

Gas Explosion Protection: II 2 G Ex eb IIC Gb, Dust Explosion Protection: II 2 D Ex tb IIIC Db, Minimum Ambient Temperature: -40 °C, Maximum Ambient Temperature: +75 °C.
