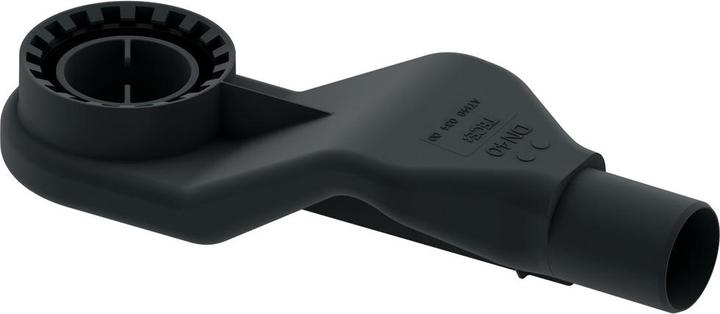

Super flat drain for TECEdrainline shower channel for swivel mounting on the channel body, for lateral connection to DN 40 wastewater pipe, with removable siphon dip tube. The installation height from the bottom edge of the drain to the top edge of the shower channel is 67 mm, and the reduced backwater height is 30 mm (20 mm without dip tube). The drainage capacity according to DIN EN 1253 at 10 mm/20 mm backwater over the grate is: Design grate basic: 0.5 l/s, 0.6 l/s - drainage capacity with tile trough plate/plate II: 0.5 l/s, 0.6 l/s.

Installation note according to § 13 NAV.

Please note that devices with a connection value of 230V are delivered either with a protective contact plug or a fixed connection (without plug) depending on the power rating. If the device has a fixed connection, a qualified technician must be commissioned for the installation. All devices with a connection value of 400V and above must be operated via a suitable high-voltage connection and may only be connected by a qualified electrician. For devices with a rated power of more than 12 kW, approval from your network operator is required. Please contact the network operator or an installation company registered in the network operator's installer directory before installation. Such an installation company will assist you in obtaining the necessary approval from the respective network operator.
