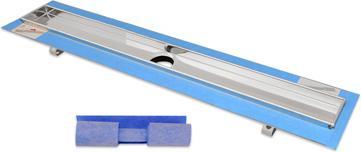

TECEdrainline Straight Shower Channel, Length 900 mm, Stainless Steel

This straight channel body is designed for the TECEdrainline shower channel and is suitable for installation in the screed. It features an insulating flange and a sealing collar for on-site sealing. The TECEdrainline shower channels eliminate disruptive separations such as shower trays and cabins, allowing for a uniform floor design. This creates barrier-free bathrooms with a spacious character that transform into true living spaces.

Consists of:

• Channel body made of stainless steel
• Fitting with insulating flange and waterproof special adhesive surface for on-site bonding of the sealing sleeve
• Sealing sleeve made of waterproof fleece for integration into the insulation coating of the thin-bed sealing by the customer
• Connection angle for anchoring in the screed and for mounting optional mounting feet
• Central connection line for drainage
• Seals
• Total length including insulating flange: 900 mm
• Visible length after installation: 855 mm
• Total width including insulating flange: 155 mm
• Visible width after installation: 75 mm
• Total height to top of finished floor: 67/95/120/148 or 65 mm (depending on drainage)

Please order separately:

• Designer grate or tile recess
• Drain
• Mounting feet (optional).
