Tehalit Supply unit VE09127011
Product details

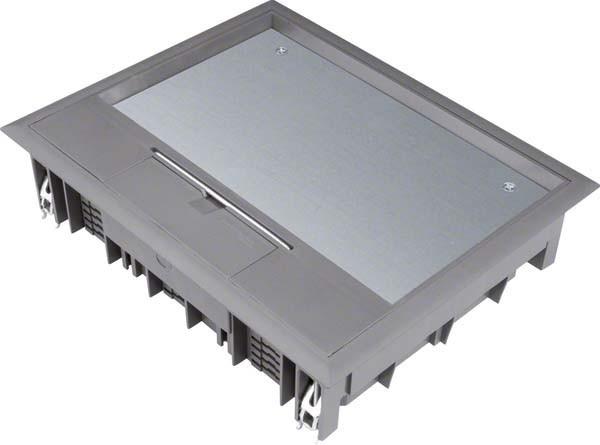

The supply unit VE09127011 from Tehalit is a high-quality solution for electrical installations, specifically designed for use with 12 mm floor coverings. With a robust housing made of polyamide in iron gray, this unit not only offers an appealing appearance but also meets the requirements of the standards DIN EN 50085-1 and DIN EN 50085-2-2. Its compact design, with dimensions of 200 x 253 mm, allows for easy integration into various environments. The supply unit comes equipped with a universal mounting kit and features a covering protection frame that provides additional protection for the floor covering. The device cup can be gradually lowered by up to 18 mm, allowing for flexible adjustment to different installation requirements. Additionally, the unit provides a connection option for flat chains, further enhancing its versatility and functionality.
- Meets the standards DIN EN 50085-1 and DIN EN 50085-2-2
- Universal mounting kit included
- Device cup can be gradually lowered by up to 18 mm
- Connection option for flat chain.
Item number | 31805139 |
Manufacturer | Tehalit |
Category | Electrical installation small parts |
Manufacturer no. | VE09127011 |
Release date | 12.10.2022 |
Colour | Grey |
Exact colour description | Satinized steel |
Material group | Plastic |
Material | Plastic |
Protection type (IP code) | IP20 |
Manufacturer Type | VE09127011 |
Country of origin | Greece |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 pcs. |
Scope of delivery | Device cup can be lowered in stages up to 18 mm, Supply unit E09 200x253mm for 12mm polyamide floor covering, iron grey. Supply unit in accordance with DIN EN 50085-1 and DIN EN 50085-2-2, Universal mounting set included, with connection option for flat chain., with decking protection frame |
Width | 272 mm |
Length | 219 mm |
Height | 200 mm |
Diameter | 253 mm |
Product Safety |
