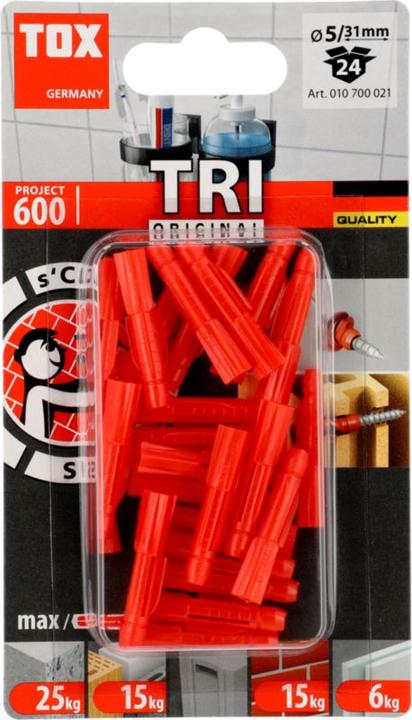

Tox All-purpose dowel Tri 5x31 mm, blister 24 pieces

24 pcs.
Price in EUR including VAT
EUR0,29/1pcs.
Ratings
Delivered between Sat, 27.9. and Sat, 4.10.
10 pieces in stock at supplier
Free shipping starting at 30,–

Product details

3-part split dowel body without a dowel cap. Rotation locks on the dowel neck and dowel body prevent it from rotating in the building material. TRI + screw: countersunk screw with PZ drive.

Additional information:

  • Create a drill hole the size of the dowel diameter.
  • Drill in hollow blocks and drywall without impact in rotary mode to prevent the webs in the hollow blocks from breaking out.
  • The drill hole in drywall should be made with a wood or metal drill bit.
  • Drill in concrete and solid brick with impact.
  • Minimum screw length = dowel length + thickness of the attachment part + 1x screw diameter.
  • Pre-assembly and through-mounting are possible.
  • The specified holding values refer to screws with the largest screw diameter.
  • Thread formation similar to DIN 7998.
  • The anchoring depth of the dowel must be adhered to.
  • Drilling method and hole cleaning must be adapted to the building material.
  • The recommended loads apply to installation in the building material, not for installation in joints.
  • Approved dowels must be used for safety-relevant fastenings.
  • For items with an included screw, any differing values on the packaging should be noted.
  • Holding value applies to fastening in aerated concrete PP4.

Key specifications

anchor type
Universal plugs
borehole diameter
5 mm
Dowel length
31 mm
Items per sales unit
24 pcs.
bolt diameter
3 mm, 3.2 mm, 3.3 mm, 3.5 mm, 3.6 mm, 3.8 mm, 3.9 mm, 4 mm
Item number
13362591

General information

Manufacturer
Tox
Category
Wall plugs
Manufacturer no.
10700021
Release date
22.6.2020

Colour

Colour
Red
Exact colour description
Red

Material

Material group
Plastic
Material
Polyester

Dowel Properties

anchor type
Universal plugs
borehole diameter
5 mm
Dowel length
31 mm
bolt diameter
3 mm, 3.2 mm, 3.3 mm, 3.5 mm, 3.6 mm, 3.8 mm, 3.9 mm, 4 mm
screw drive
PZ2
borehole depth
45 mm
building material surface
Cellular concrete, Concrete, Perforated lime sand brick, Solid brick
Material application
Cellular concrete, Concrete

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
24 pcs.
