Output voltage = ±15V dc
Input voltage = 18 → 36 V dc
Nominal input voltage = 24 V dc
Isolation voltage = 1500V dc
Rated power = 6W
Output current = ±200mA
Mounting type = through hole mounting
Number of outputs = 2
Housing = DIP 24
efficiency = 86%
Temperature min. = -40°C
Temperature max. = +85°C
Load regulation = ±5%
Mains regulation = ±0.3%
Width = 20mm

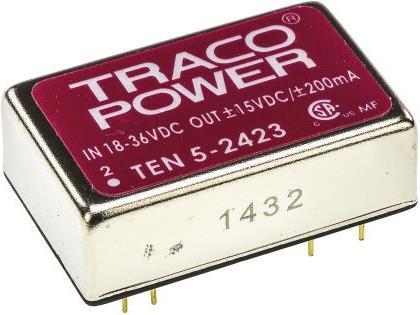

UL 60950-1, IEC/EN 60950-1. CSA File No. 226037. regulated isolated DC/DC converter with single/dual output Traco 3.96 W to 6 W DIP - TEN 5 series. Traco Power's TEN 5 series is a range of isolated DC/DC converters, 5 watts, in an industry standard DIP-24 package with footprint. With their high efficiency, these regulated converters allow an operating temperature range of -40 °C up to +75 °C. The SMD design of these DC/DC converters guarantees high reliability. The TEN 5 series comes with integrated EMI input filter and complies with EN 55022 and FCC, level A, without external components. Ideal applications for these DC/DC converters are in battery-powered equipment, industrial process control systems, tele/data transmission, and other applications where a wide operating voltage range is required. Wide input voltage range of 2:1 Complete SMD design High efficiency up to 86% Extended operating temperature range: -40 °C to 85 °C maximum. I/O isolation: 1500 V dc Continuous short-circuit proof Input filter complies with EN 55022 Class A and FCC Level A without external components Shielded metal housing with isolated base plate 24-pin DIP with industry standard pinout High reliability, MTBF >1 million h.
