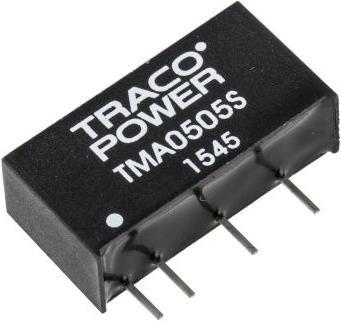

TracoPower TMA0505S unregulated DC-DC,5V 1W

Ratings
BrandMore from TracoPower
Currently out of stock
Free shipping starting at 30,–

Product details

Output voltage: 5 V dc
Input voltage: 4.5 → 5.5 V dc
Input nominal voltage: 5 V dc
Isolation voltage: 1000 V dc
Nominal power: 1 W
Output current: 200 mA
Mounting type: Through-hole mounting
Number of outputs: 1
Case: SIP 6
Efficiency: 71 %
Minimum temperature: -40 °C
Maximum temperature: +85 °C
Load regulation: ±10 %
Line regulation: ±1.2 %
Depth: 10.2 mm

Unregulated isolated DC/DC converter with single/dual output Traco-1-W-SIP – TMA series. The TMA series from Traco Power includes isolated miniature DC/DC converters for 1 W in a SIP package. The SMD technology of these isolated converters ensures a product with high performance at low cost. The DC/DC converters of the TME series occupy only 1.2 cm² on the PCB and are the perfect solution for space-critical applications for power distribution at the board level. SIP package (inline, single) models with single and dual output isolation: 1000 V dc. High efficiency of up to 81 %. Operating temperature range: -40 °C to +85 °C. Pinout according to industry standard. 100 % burn-in (8 h). Lead-free, RoHS compliant.

Key specifications

input voltage
5 V
Output voltage
5 V
Power output
1 W
Length
1.95 cm
Height
1.02 cm

General information

Item number
9892496
Manufacturer
TracoPower
Category
Power inverters
Manufacturer no.
TMA 0505S
Release date
15.10.2018

Voltage Transformer Properties

input voltage
5 V
Output voltage
5 V
Power output
1 W
Electric current output
0.20 A

Product dimensions

Length
1.95 cm
Height
1.02 cm
