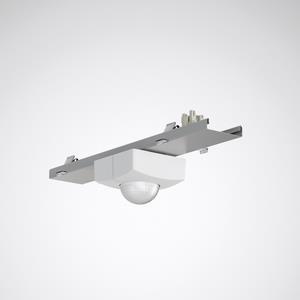

The device carrier with sensor from Trilux is a highly advanced presence detector specifically designed for indoor use. Equipped with a Passive Infrared (PIR) motion sensor, this device offers reliable ON/OFF sensing, making it ideal for applications in areas with high installation heights. The sensor features an extra-large detection range that allows for comprehensive monitoring. With a detection angle of 360° and a radial detection range of up to 14 meters, the device carrier covers an area of up to 154 m². For larger areas, the tangential detection range of up to 36 meters (1018 m²) can be utilized. The mounting height can vary between 4.0 and 14.0 meters, allowing for flexible installation. The device carrier is made of coated steel sheet and provides high switching performance through a strong relay. Commissioning is done via a separately available remote control, which facilitates parameterization and adaptation to specific requirements.

• Detection angle of 360° for comprehensive monitoring
• Radial detection range of up to 14 m (154 m²)
• Tangential detection range of up to 36 m (1018 m²)
• Flexible mounting height from 4.0 to 14.0 m
• Robust construction made of coated steel sheet with IP20 protection class.
