Turck Opto-sensor
Product details
Turck Opto-Sensor QS30EQ
Manufacturer: Turck
Designation: Opto-Sensor One-Way Light Barrier
Type: QS30EQ
Rated Switching Distance: 60000 mm
Max. Switching Distance: 60000 mm
Electrical Connection Type: M12 Connector

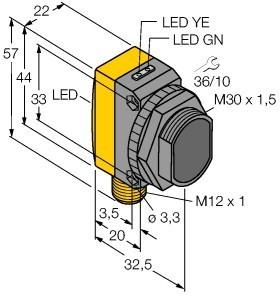

Housing Design: Rectangular
Sensor Width: 22 mm
Sensor Diameter: 30 mm
Sensor Height: 57 mm
Sensor Length: 35 mm
Material of Optical Surface: Plastic
Material of Housing: Plastic
Min. Reflector Distance: 0 mm
Ambient Temperature: -20 to 70 °C
Response Time: 5 ms
Sensor Wavelength: 875 nm
Light Type: Infrared Light
Cable Jacket Material: Polyvinyl Chloride (PVC)
Suitable for Safety Functions: No
Protection Class (IP): IP67
Additional Details: Opto-Sensor, One-Way Light Barrier (Emitter), Connector, M12 x 1, 5-pole, Protection Class IP67, Operating Voltage: 10 to 30 VDC, LED visible all around, Max. Range: 60000 mm, EAN: 0662488730826.
Item number | 36814805 |
Manufacturer | Turck |
Category | Electrical installation small parts |
Manufacturer no. | 3073082 |
Release date | 28.6.2023 |
Material group | Plastic |
Material | Plastic |
Max. temperature | 70 °C |
Min. temperature | -20 °C |
External thread | M12 x 1 mm |
Protection type (IP code) | IP67 |
Nominal voltage | 30 V |
Plug type | Solid metal connector |
Manufacturer Type | QS30EQ |
Country of origin | USA |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 pcs. |
Scope of delivery | Opto-sensor |
Width | 22 mm |
Length | 35 mm |
Height | 57 mm |
Diameter | 30 mm |
