Turck Opto Sensor Retroreflective sensor with polarisation filter QS30VR3LP
Product details
Turck Opto Sensor QS30VR3LP W/30
Manufacturer: Turck
Description: Opto Sensor Light Barrier
Type: QS30VR3LP W/30
Rated Switching Distance: 8000 mm
Max. Switching Distance: 8000 mm
With Reflector: No
Electrical Connection Type: Cable
Switch Output Type: Relay Contact
Switch Function Type: Changeover (NO/NC)
Housing Design: Rectangular

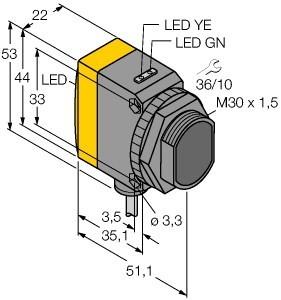

Width of Sensor: 22 mm
Diameter of Sensor: 30 mm
Height of Sensor: 44 mm
Length of Sensor: 51.5 mm
Material of Optical Surface: Plastic
Material of Housing: Plastic
Min. Reflector Distance: 0 mm
Ambient Temperature: -20 to 70 °C
Response Time: 15 ms
Switching Frequency: 250 Hz
Wavelength of Sensor: 630 nm
Light Type: Polarized Red Light
Suitable for Safety Functions: No
Protection Class (IP): IP67
Additional Details: Opto-sensor, reflective light barrier with polarization filter, cable, PVC, 9 m, protection class IP67, operating voltage: 12 to 250 VDC or 24 to 250 VAC, relay output, changeover, LED visible all around, sensitivity adjustment via potentiometer, max. range: 8000 mm, EAN: 0662488731984.
Item number | 36330148 |
Manufacturer | Turck |
Category | Electrical installation small parts |
Manufacturer no. | 3073198 |
Release date | 15.6.2023 |
Material group | Plastic |
Material | Plastic |
Protection type (IP code) | IP67 |
Corrugated tube Special features | For high mechanical load |
Nominal voltage | 250 V |
Manufacturer Type | 30, QS30VR3LP W |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 pcs. |
Scope of delivery | 9 m, Cable, Changer, LED visible all round, max. reach: 8000 mm, Operating voltage: 12 250 VDC or 24 250 VAC, Opto sensor, Protection class IP67, PVC, Relay output, Retroreflective sensor with polarisation filter, Sensitivity adjustment via potentiometer |
Width | 22 mm |
Length | 51.50 mm |
Height | 44 mm |
Diameter | 30 mm |
