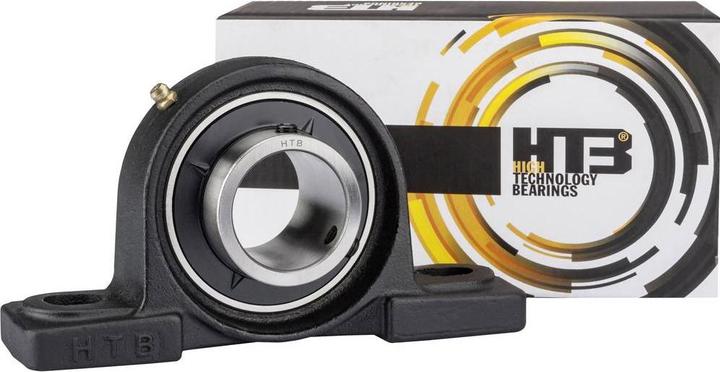

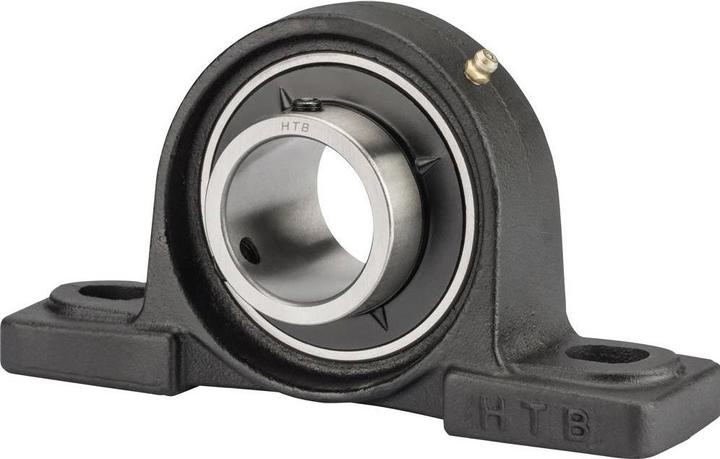

UBC Bearing Pedestal bearing UCP, grey cast iron housing UCP 204 Bore diameter 20 mm Hole spacing 96 mm

Price in EUR including VAT
1Ratings
BrandMore from UBC Bearing
Delivered between Sat, 16.8. and Wed, 20.8.
More than 10 pieces in stock at supplier
Free shipping starting at 30,–

Product details

UCP Pillow Block, gray cast iron housing for simple bearings such as those used in agricultural machinery, conveyor systems, and construction equipment. The UCP unit consists of a sealed bearing with a spherical outer surface and a pillow block housing made of gray cast iron. The shaft is secured using set screws on the inner ring. Due to the spherical outer surface of the bearing, misalignment of the shaft can be compensated.

Technical data:

  • Bore diameter: 20 mm
  • Housing material: gray cast iron
  • Weight: 0.65 kg
  • Bearing type: pillow block
  • Hole spacing: 96 mm

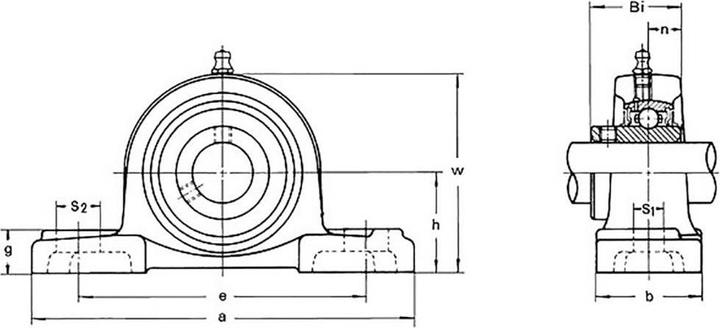

  • Dimensions: 33.3 x 127 x 96 x 38 x 13 x 19 x 15 x 65 x 31 x 12.7
  • Dynamic radial load rating: 10,100 N
  • Static radial load rating: 6,300 N
  • Type: UCP 204.

Key specifications

Outside diameter
20 mm
Item number
24127537

General information

Manufacturer
UBC Bearing
Category
Ball bearings
Manufacturer no.
UCP 204
Release date
10.2.2023

Material

Material group
Metal
Material
Gray iron

Ball bearing properties

Load rating dyn.
10.10 kN
Load rating stat.
6.30 kN

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Outside diameter
20 mm
Weight
650 g
