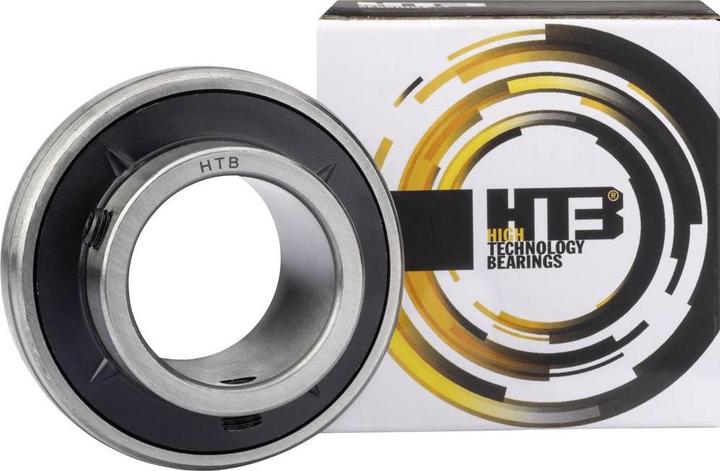

UBC Bearing UC Radial insert UC 206 / YAR 206 / GYE 30 KRRB Bore diameter 30 mm Outer diameter 40
Price in EUR including VAT
Delivered between Sat, 13.9. and Wed, 17.9.
More than 10 pieces in stock at supplier
More than 10 pieces in stock at supplier
Free shipping starting at 30,–
Product details
UC tension bearing inserts are ready-to-mount inserts for pedestal and flanged bearings. When these bearing inserts are mounted in a corresponding housing, they compensate for static misalignments of the shaft. UC bearing inserts are particularly easy to fit; they are positioned on the shaft and fixed with grub screws in the inner ring.
Technical data:
- Outer diameter: 40.5 mm
- Bore diameter: 30 mm
- Speed: -
- Ball bearing type: Radial insert

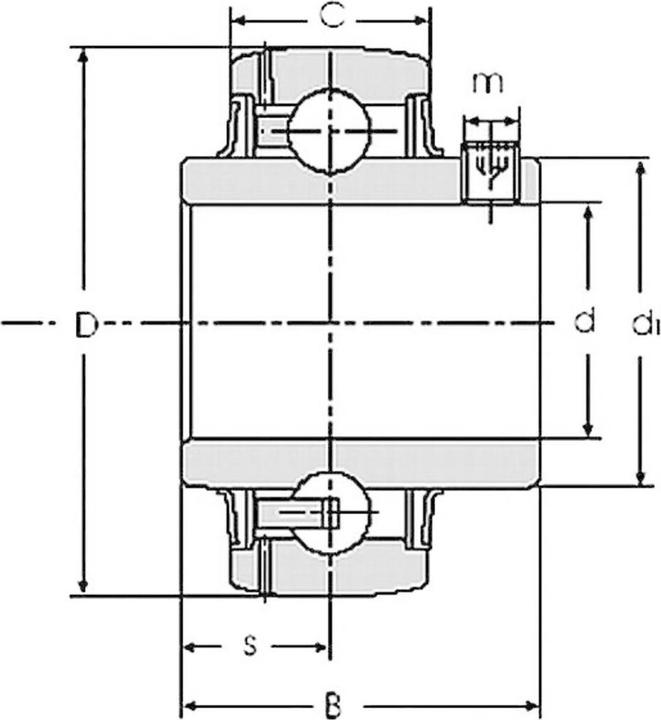

- Dimensions: 30 x 62 x 38.1 x 19 x 40.5 x 15.9 x M 6x1 mm
- Load rating dynamic radial: 19500 N
- Load rating static radial: 11300 N
- Type: UC 206 / YAR 206 / GYE 30 KRRB.
Outside diameter | 40.50 mm |
Internal diameter | 30 mm |
Width | 38.10 mm |
Item number | 32990927 |
Manufacturer | UBC Bearing |
Category | Ball bearings |
Manufacturer no. | UC 206 |
Release date | 10.5.2023 |
Load rating dyn. | 19.50 kN |
Load rating stat. | 11.30 kN |
CO₂-Emission | |
Climate contribution |
Outside diameter | 40.50 mm |
Internal diameter | 30 mm |
Width | 38.10 mm |
Product Safety |
