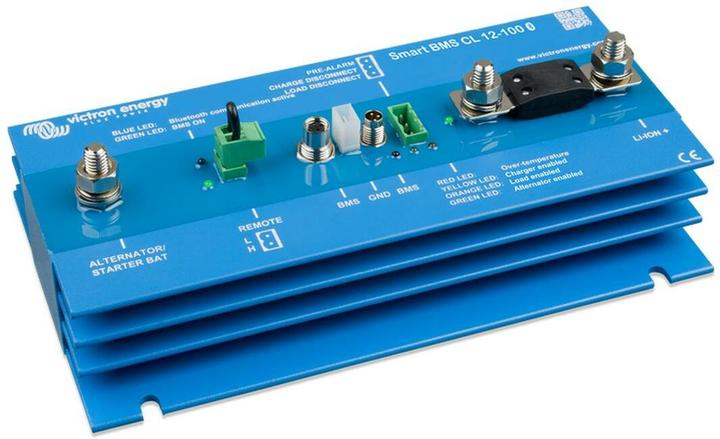

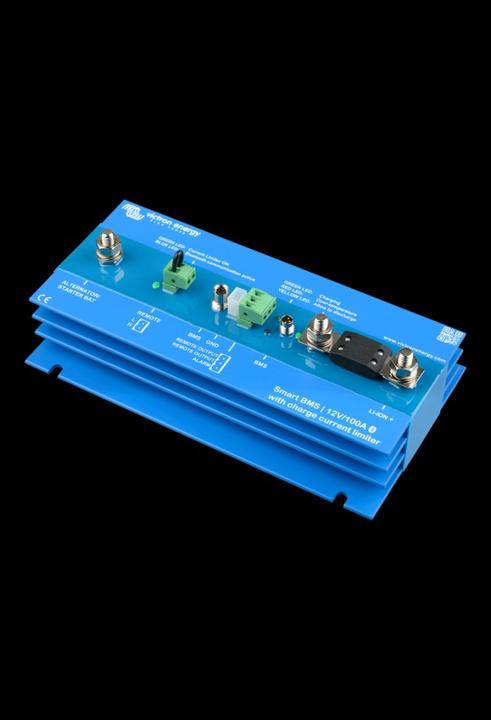

Smart BMS CL 12/100

The Smart BMS CL 12/100 is a battery management system for intelligent lithium iron phosphate batteries (LiFePO4) from Victron. It is specifically designed for 12V systems with a 12V generator.

The BMS CL 12/100 monitors and protects each individual battery cell within the battery or battery bank and disconnects the generator, charging sources, or DC loads in case of low battery voltage, high battery voltage, or overheating.

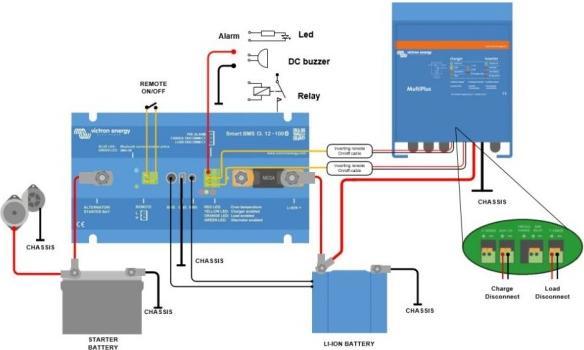

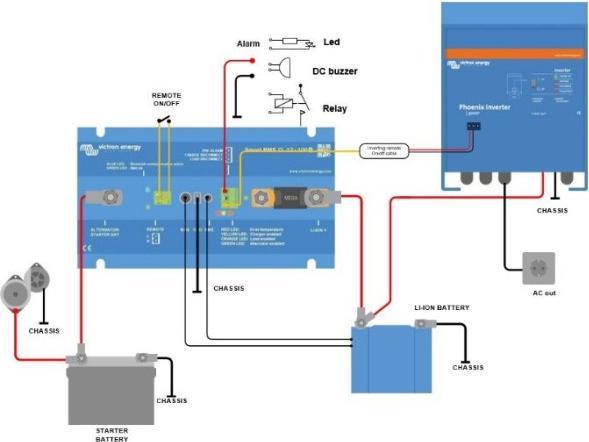

The dedicated generator input ensures current limitation and one-way traffic from the generator to the battery, allowing a generator and a starting battery of any size to be safely connected to the Smart Lithium battery or batteries.

The BMS is also equipped with a remote on/off connection to turn off the BMS and the system via a remote switch, as well as a pre-alarm contact to provide a warning signal before the BMS disconnects the batteries from the system.

VictronConnect
With VictronConnect, you can query live status information and configure all Victron products that either have a built-in Bluetooth function or are connected via a VE.Direct Bluetooth Smart Dongle.
