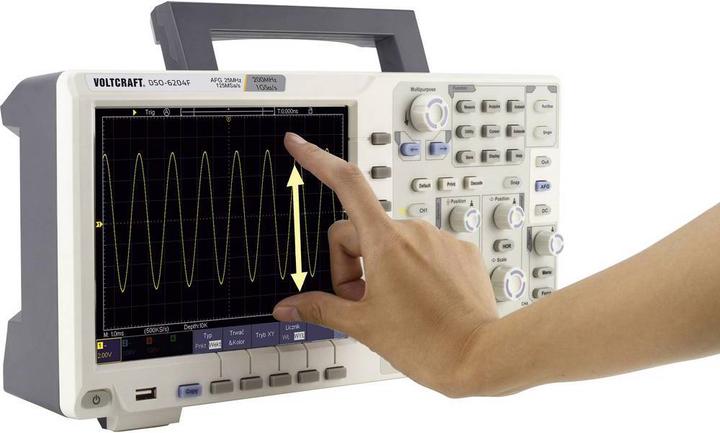

Settings can be adjusted as usual using the control knobs or directly on the screen. Moving and zooming is as intuitive as on a smartphone or tablet.

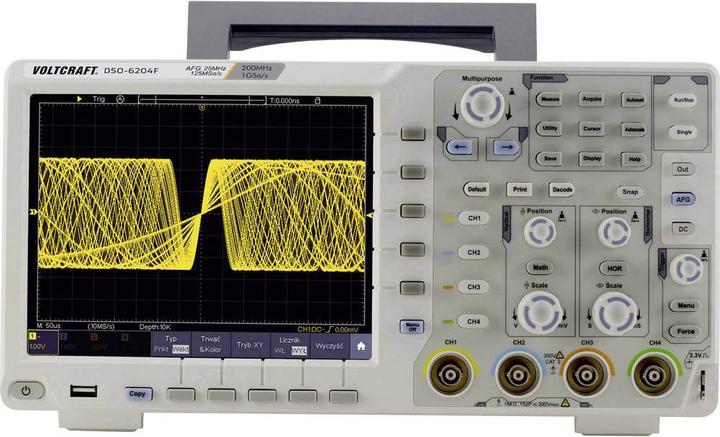

Color temperature view: With changing frequencies, recurring waveforms are displayed in rainbow colors according to their frequency.

Bus decoding: SPI, I²C, RS232, and CAN bus signals can be decoded. Decoded values can be displayed in binary, decimal, hex, or ASCII and can be recorded in event tables. Values from decoded CAN bus signals are color-coded, making it easier to distinguish between Data, Data Length Code, and Frame information. CAN bus checksums also change color in case of errors.

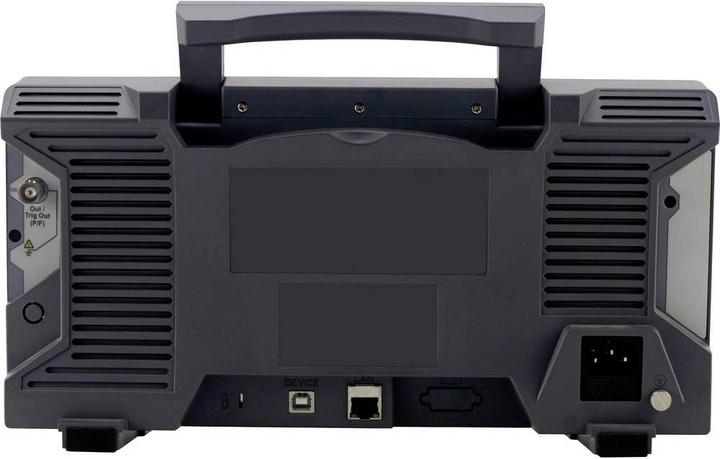

Documenting and processing data: All measurement results and screen contents can be transferred to a PC via USB or network for documentation purposes. When saving to USB drives, the filename can be conveniently entered on the touch display.

Function generator with touch operation: The 25 MHz function generator can be operated via the touch panel or traditionally using buttons. Sine, square, ramp, and pulse waveforms can be called up. An additional 46 arbitrary waveforms, including exponential, sine functions, steps, and noise, are predefined. Custom arbitrary shapes can be saved.

Clone function: Waveforms at the oscilloscope input can be cloned to the function generator. The selection of the section to be cloned is conveniently made via the touchscreen.

Prepared for battery operation: With the optionally available Li-Ion battery, the range of applications is significantly expanded. The oscilloscope with the optional battery is also intuitively operable on the go and allows for 3 hours of continuous use without additional power supply. Battery operation is also helpful in the lab for isolating from mains potential.
