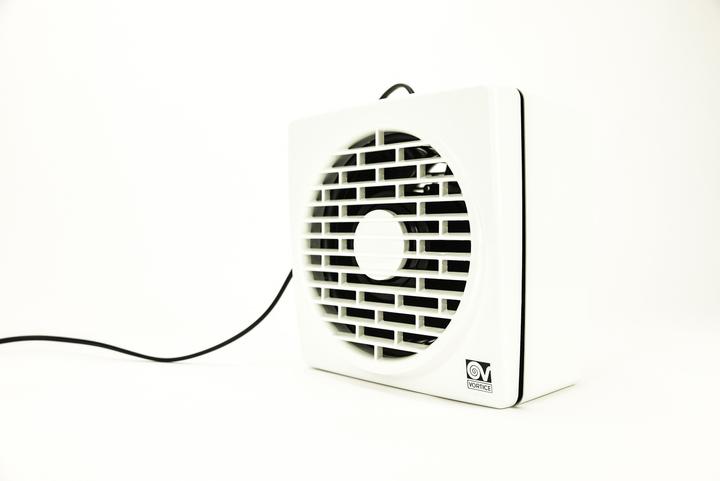

Vortice Vario 230/9

Ratings
BrandMore from Vortice
Currently out of stock
Free shipping starting at 30,–

Product details

Dimensions and technical details:

  • Voltage: 220-240 V ~ 50 Hz
  • Colour: White
  • Material: Impact-resistant, UV-resistant ABS plastic
  • Nominal size: 230 mm
  • Speed levels: 1
  • Wattage: 26 W
  • Current consumption: 0.13 A
  • Revolutions per minute (supply air): 1080
  • Revolutions per minute (exhaust air): 790
  • Max. airflow rate (supply air): 310 m³/h
  • Max. airflow rate (exhaust air): 480 m³/h
  • Sound pressure level (Lp-3m): 35.6 dB(A)
  • IP rating: IPX4
  • Protection class: II
  • Max. ambient temperature: +50°C
  • Weight: 3.45 kg
  • Self-lubricating ball bearings
  • Automated internal shutter flap prevents cold air from entering once the fan is turned off (can be opened manually)
  • Optional CR controllers allow reversing and speed control

Model specifications:

  • A: 294 mm
  • B: 297 mm
  • C: 31 mm
  • D: 130 mm
  • E min.: 2 mm
  • E max.: 38 mm
  • Ø Cutout: 257-262 mm.

Key specifications

Airflow
480 m³/h
Noise emission
36 dB
Item number
17544539

General information

Manufacturer
Vortice
Category
Ventilation technology
Manufacturer no.
12452
Release date
22.11.2021

Colour

Colour
White
Exact colour description
White

Material

Material group
Plastic
Material
Plastic

Ventilation technology Features

Airflow
480 m³/h
Noise emission
36 dB
Suitable for pipe diameter
230 mm

Power supply

Power
26 W

Origin

Country of origin
Germany, Italy

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
161 mm
Width
294 mm
Height
294 mm
Weight
3450 g
