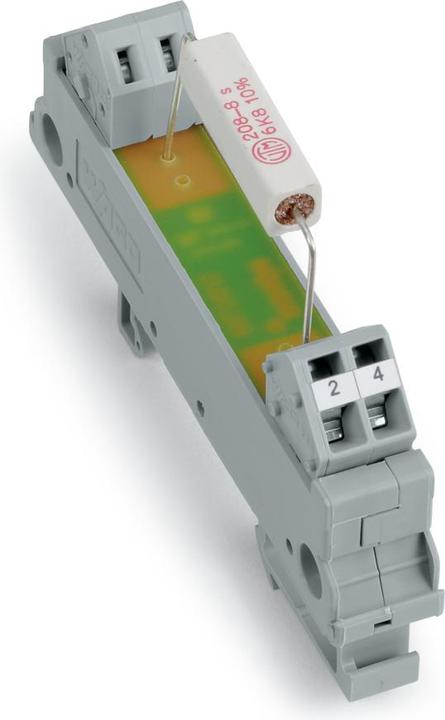

WAGO GmbH & Co. KG Resistor module 289-128

Manufacturer: WAGO GmbH & Co. KG
Designation: Resistor module
Type: 289-128
Explosion-proof version "Ex e": No
Connectable conductor cross-section fine-stranded without ferrule: 0.08 to 2.5 mm²
Connectable fine-stranded conductor cross-section with ferrule: 0.25 to 1.5 mm²
Connectable solid conductor cross-section: 0.08 to 2.5 mm²
Connectable stranded conductor cross-section: 0.08 to 2.5 mm²
Electrical connection type 1: Spring-loaded connection
Electrical connection type 2: Spring-loaded connection
Floors internally bridged: No
Mounting type: Top-hat rail TH35
Material of the insulating body: Thermoplastic
Operating temperature: -20 to 50 °C
Flammability class of the insulating material according to UL 94: V0
Width: 13 mm
Height: 85 mm
Depth: 34 mm
End plate required: No
Colour: Grey
Component type: Resistor

WAGO GmbH & Co. KG Resistor module 289-128: Further details
Component module with resistor with 1 piece resistor 9K1 5 Watt in mounting base. EAN: 4044918147620.
