Wago Connection line

5 m
Price in EUR including VAT
EUR8,18/1m
Ratings
BrandMore from Wago
Delivered between Wed, 22.10. and Wed, 29.10.
free shipping

Product details

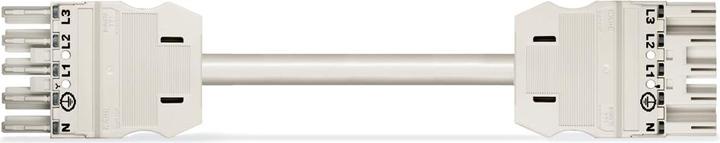

WAGO GmbH & Co KG connecting cable 771-9995/007-502

Manufacturer: WAGO GmbH & Co. KG
Designation: Connecting cable 5x2.5mm² white
Type: 771-9995/007-502
Rated voltage: 400 V
Rated current: 20 A
Number of poles: 5
Type of protection (IP): IP20
Type of prefabricated cable: Other
Version side 1: Socket
Version side 2: Conductor
End treatment: Ultrasonically compacted wire ends
Total length: 5000 mm
Mechanical coding: Yes
Colour of coding/contact insert: White
Housing colour: White
Cable type: H05VV-F
Cable diameter: 11.2 - 13.9 mm
Sheath colour: White
Pole marking: 3, N, PE, 2, 1
Nominal conductor cross-section: 2.5 mm²
Type of interlock: Separate
Insulating part withstands continuous temperatures up to: 105 °C
Cable withstands continuous temperatures up to: 70 °C
Max. operating temperature at conductor: 75 °C
Halogen-free: No
Fire load: 41.54222 kWh
Surface treatment contacts: Tin-plated
Degree of contamination: 3
Contact resistance: 1 mΩ
Rated impulse voltage: 6 kV
Fire behaviour class to EN 13501-6: Eca

WAGO GmbH & Co. KG connecting cable 771-9995/007-502: More details prefabricated connecting cable Eca socket plug 5-pole cod. A H05VV-F 5G 2.5 mm² 5 m 2.50 mm² white.

Key specifications

cable type
Installation management
Cable cross section
2.50 mm²
Voltage
400 V
Cable length
5 m
Exact colour description
White
Item number
36750670

General information

Manufacturer
Wago
Category
Cable conductors
Manufacturer no.
771-9995/007-502
Release date
28.6.2023

Colour

Colour
White
Exact colour description
White

Cable properties

cable type
Installation management
Cable cross section
2.50 mm²
Number of cores
5 x
Nominal voltage U
400 V
Nominal current
20 A
Cable type according to DIN/VDE
H05vv-f 5g 2,5 mm²

Power supply

Voltage
400 V

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Cable length
5 m
