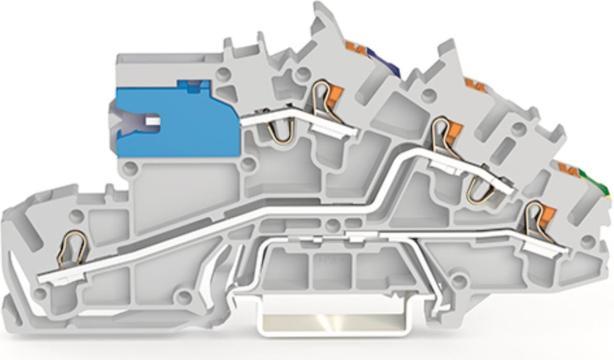

Wago Installation floor terminal 2203-7541,with actuation opening

Price in EUR including VAT, plus shipping
Ratings
Delivered between Wed, 28.5. and Sat, 31.5.
More than 10 items in stock at supplier

Product details

WAGO GmbH & Co. KG installation terminal block 2203-7541. Manufacturer: WAGO GmbH & Co. KG. Designation: Installation terminal block 2.5 mm². Hybrid type: 2203-7541. Connectable conductor cross-section flexible without end sleeve: 0.25 to 4 mm². Connectable fine-stranded conductor cross-section with wire end ferrule: 0.75 to 2.5 mm². Connectable solid conductor cross-section: 0.75 to 4 mm². Connectable stranded conductor cross-section: 0.25 to 2.5 mm². Rated current: 29 A. Rated voltage: 250 V. Electrical connection type 1: Spring-loaded connection. Electrical connection type 2: Spring-loaded connection. Number of potentials: 3. Mounting type: Top-hat rail TH35. Material of the insulating body: Thermoplastic. Operating temperature: 105 °C. Flammability class of the insulating material according to UL 94: V0. Width: 5.2 mm. Height: 95.6 mm. Depth: 46.6 mm. End plate required: Yes. Basic colour: Grey. With PE function: Yes. With N-disconnect slide: Yes. N-function possible: Yes. Installation floor terminal block with actuation opening and push-button 2.5 mm² with N-disconnect slide NT/L/PE ground floor green-yellow. Push-in CAGE CLAMP® 2.50 mm² grey. EAN: 4066966121896.

Key specifications

Item number
24561480

General information

Manufacturer
Wago
Category
Cable joints
Manufacturer no.
2203-7541
Release date
7.10.2022

Colour

Exact colour description
Grey
Colour
Grey

Material

Material
Thermoplastic resin
Material group
Plastic

Cable connection Properties

Cable connection type
Terminal blocks
Suitable for cable cross-section
4 mm²

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Installation floor terminal 2.5 mm² Hybrid
Items per sales unit
50 x

Product dimensions

Length
46.60 mm
Width
5.20 mm
Height
95.60 mm

14-day cancellation right
30-day right of return
24 Months Statutory warranty
