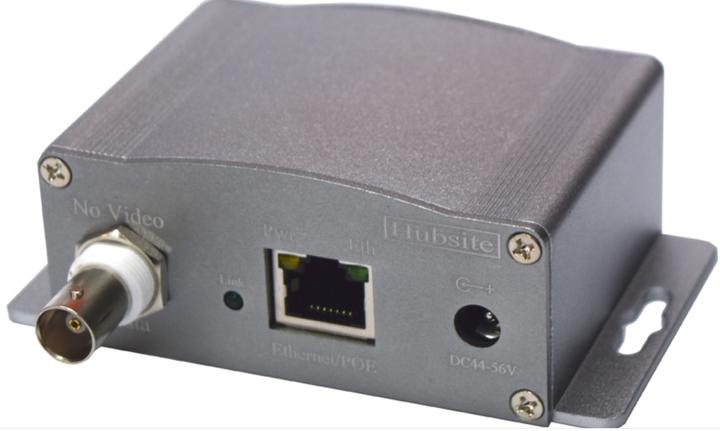

With the 2wIP, a network connection can be established over a 2-wire line. Additionally, PoE is transmitted over the line. The adapter is scalable, allowing one transmitter to control up to 4 receivers. Power supply for the 2wIP D series can be provided via a power adapter or PoE.

Main features:

• Network: Ethernet LAN
• Data transfer rates: 10, 100 Mbit/s
• Cabling technology: 10/100
• Network standard: IEEE 802.3af, IEEE 802.3at
• Duplex system: Full, Half
• Plug & Play: Yes
• Maximum operating distance: 1500 m
• LED indicators: Yes

Connections and interfaces:

• Number of Ethernet LAN ports (RJ-45): 1
• DC connection: Yes

Power:

• Output power: 25.4 W

Operating conditions:

• Operating temperature range: 10 - 50 °C

Weight and dimensions:

• Width: 99 mm
• Depth: 58 mm
• Height: 35 mm
• Weight: 152 g.
