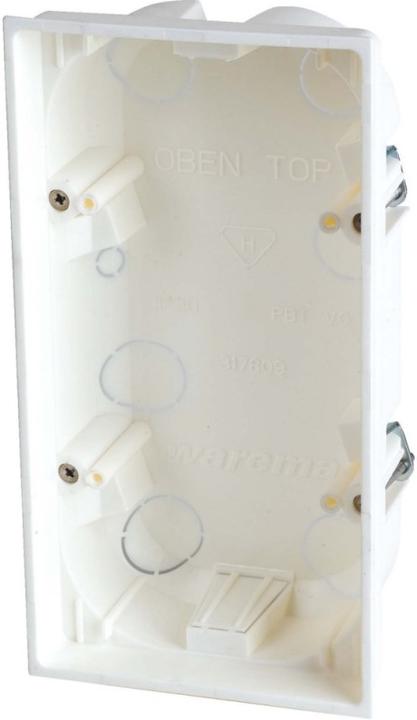

Warema Sonnen cavity wall/UP housing 1002837

Manufacturer: Warema Sonnen
Designation: Cavity wall/UP housing for complete installation Wisotr.
Type: 1002837
Mounting type: Cavity wall
Shape: Rectangular
Design: Junction box
Design: Single
With rotating ring: No
Couplable: No
Mounting: Terminal
Diameter: 68 mm
Length: 169.1 mm
Width: 89.3 mm
Depth: 49 mm
Internal depth: 1 mm
Suitable for wall/board thickness: 1 mm
For number of service outlets: 1
Mounting of units: Screws
With screws: Yes
Enclosure lead-through through knock-out opening: Yes
Enclosure lead-through through sealing diaphragm: No
Enclosure lead-through through pipe socket: No
Enclosure lead-through through stepped diaphragm: No
For tube diameter: 19 mm
Suitable for cable diameter: 1 mm
Tube locking: No
Tube locking optional: No
Entry from rear: Yes
Number of entries: 6
Material: Plastic
Halogen-free: No
Surface protection: Untreated
Colour: Other
Protection class (IP): IP30
Protection class (NEMA): Other
Version Cover: Without
Transparent cover: No
Cover fastening: Other
Sealable: No
Functional integrity: Without
With shield: No
Airtight: No
Max. conductor cross-section: 2.5 mm²
Number of poles of terminal: 1
Terminal position-fixed: No
Luminaire hook fastening: No
Spigot: Without
With nail straps: No
Special application: Without

Warema Sonnen cavity wall/UP enclosure 1002837: further details
Cavity wall box for Warema Wistronic with a wall projection of 7 mm, which allows the control panel to be installed almost flush with the surface. Cavity wall box only available in white.
