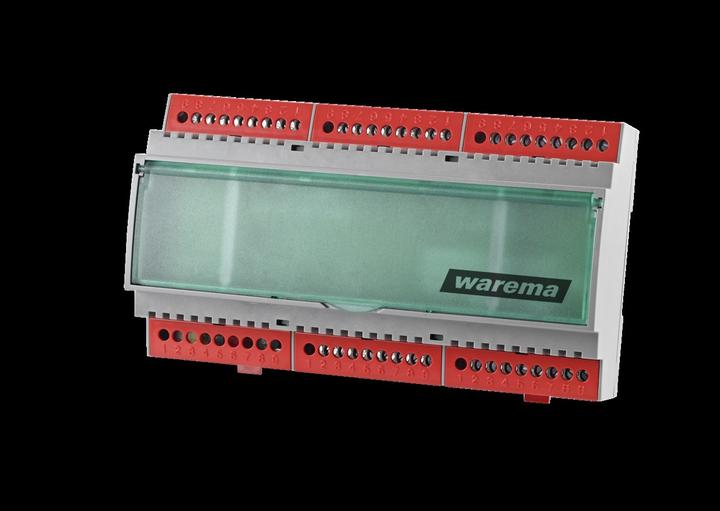

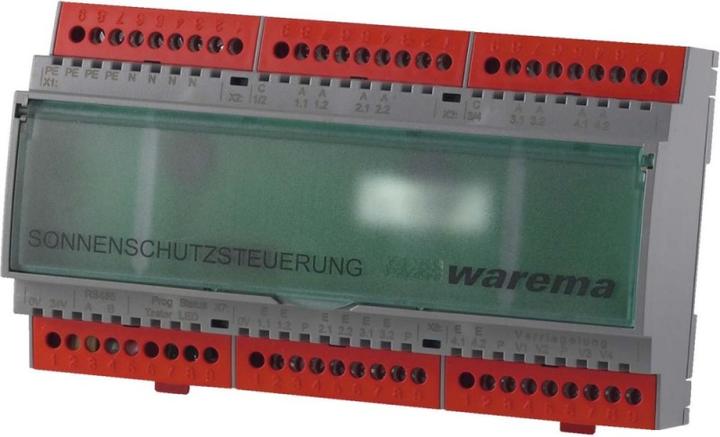

Warema Motor control unit MSE Inside 4 REG
Product details
Motor control unit (REG) for controlling four sun protection or window drives (24 V drive). It allows for direct control of four 24 V sun protection drives via a sun protection central unit and a local switch. Additionally, multiple motor control units can be grouped together and operated collectively from a single switch. Furthermore, the logic behavior of the switch can be toggled between time logic and permanent logic. Time logic means that the MSE will switch to self-holding mode after approximately 2 seconds of switch activation. A shorter activation of the switch generates a reverse pulse (for slat products), while permanent logic causes the MSE to immediately switch to self-holding mode upon switch activation (for fabric products/roller shutters). The program also includes a slat opening function, which ensures that the slats, for example in blinds, do not twist or stick together. A brief activation at the lower end position ensures a uniform slat alignment. Through a locking input, the sun protection motor can be disabled as soon as, for example, a window is opened. Local grouping is done via DIP switches. Note: An external power supply for the 24 V motor is required.
Item number | 31935469 |
Manufacturer | Warema |
Category | Electrical installation small parts |
Manufacturer no. | 1002085 |
Release date | 12.10.2022 |
Protection type (IP code) | IP30 |
Nominal voltage | 30 V |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 pcs. |
