Weidmüller A2C 6
More than 10 pieces in stock at supplier
Product details

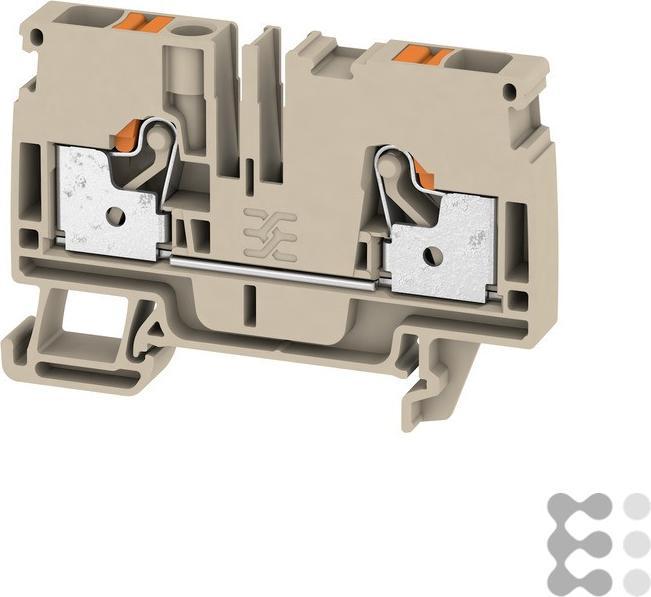

Weidmüller Terminal Block A2C 6
Manufacturer: Weidmüller
Designation: Terminal block 0.5-6.0 mm², beige
Type: A2C 6
Connectable conductor cross-section for fine-stranded without ferrule: 0.5..10 mm²
Connectable conductor cross-section for fine-stranded with ferrule: 0.5..10 mm²
Connectable conductor cross-section for single-stranded: 0.5..6 mm²
Connectable conductor cross-section for multi-stranded: 0.5..6 mm²
Rated current In: 41 A
Rated voltage: 800 V
Type of electrical connection 1: Plug connection
Type of electrical connection 2: Plug connection
Number of levels: 1
Number of connection points per level: 2
Suitable for conductor material: Copper
Mounting type: TH35 rail
Material of insulating body: Thermoplastic
Operating temperature: -60..130 °C
Flammability class of insulating material according to UL 94: V0
Width: 8.1 mm
Height: 66.5 mm
Depth: 45.5 mm
Explosion-proof version "Ex e": yes
End plate required: yes
Color: beige
Internally bridged levels: no
Weidmüller Terminal Block A2C 6: additional details
Rail-mounted terminal for connecting or joining conductors with permanently secure contact. Hardened steel withstands mechanical forces, while tin-plated copper ensures optimal conductivity.
EAN: 4050118377064.
Item number | 9908910 |
Manufacturer | Weidmüller |
Category | Cable joints |
Manufacturer no. | 1992110000 |
Release date | 16.10.2018 |
Exact colour description | Beige |
Colour | Beige |
Material | Thermoplastic resin |
Material group | Plastic |
Cable connection type | Plug-in terminals |
Suitable for cable cross-section | 6 mm² |
Plug type | Angled on one side |
Country of origin | Germany, Romania |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Feed-through terminal 0.5-6.0 qmm, beige |
Items per sales unit | 1 x |
Length | 45.50 mm |
Width | 8.10 mm |
Height | 66.50 mm |
