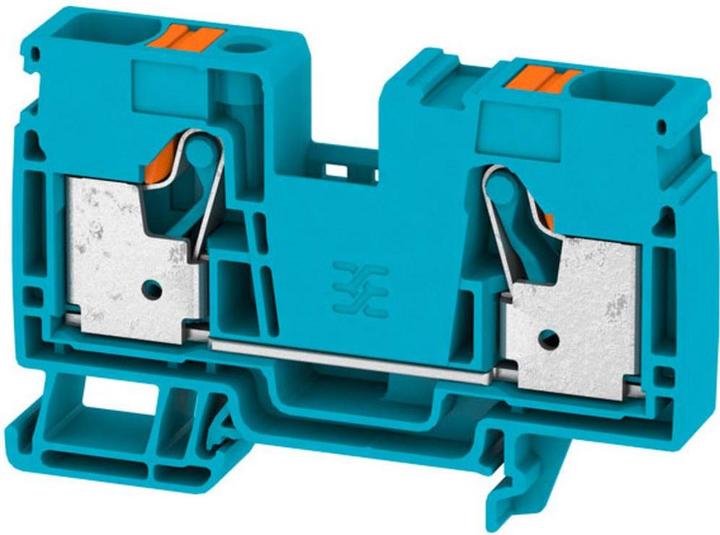

Weidmüller Through Terminal Block A2C 16 BL

Manufacturer: Weidmüller
Description: Through Terminal Block
Type: A2C 16 BL

Connectable conductor cross-section fine-stranded without ferrule: 0.5..25 mm²
Connectable conductor cross-section fine-stranded with ferrule: 0.5..16 mm²
Connectable conductor cross-section solid: 0.5..16 mm²
Connectable conductor cross-section multi-stranded: 10..25 mm²

Rated current In: 76 A
Rated voltage: 1000 V
Type of electrical connection 1: Plug connection
Type of electrical connection 2: Plug connection

Number of levels: 1
Number of connection points per level: 2
Suitable for conductor material: Copper
Mounting type: TH35 rail
Material of insulating body: Thermoplastic
Operating temperature: -60..130 °C
Flammability class of insulating material according to UL 94: V0

Width: 12 mm
Height: 80.5 mm
Depth: 51.5 mm
Explosion-proof version "Ex e": yes
End plate required: yes
Color: blue
Internally bridged levels: no

Weidmüller Through Terminal Block A2C 16 BL: additional details
Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands mechanical forces, tin-plated copper ensures optimal conductivity.
EAN: 4050118504101.
