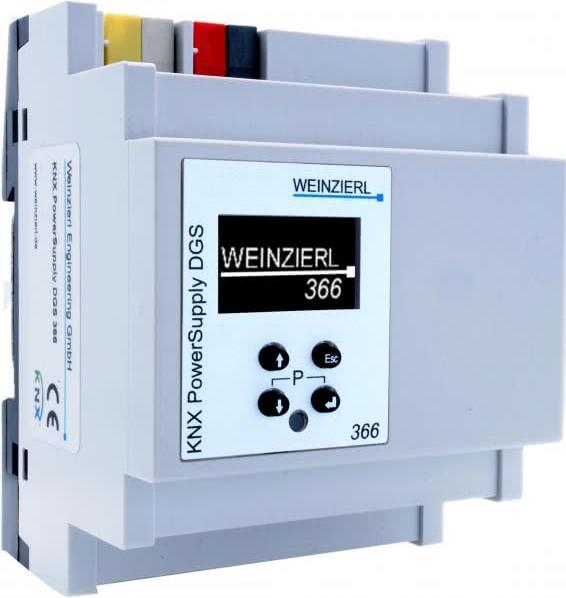

The KNX PowerSupply DGS 366 is a 640 mA bus power supply with high efficiency and a compact footprint of only 4 units (72 mm). The device features a bus choke and additionally offers an output for auxiliary power.

Power, diagnostic, and logic functions

The integrated KNX node monitors output current, bus voltage, and temperature in the control cabinet. Various logic functions are available for the intended application. Configuration is done using the ETS (version 4.2 or higher). A clearly readable OLED display on the front allows the user to view operating parameters directly on the device.

TECHNICAL DATA

Mechanical data

Housing: Plastic
Device for DIN rail mounting, width: 4 modules (72 mm)
Weight: approx. 260 g

User interface

Four buttons for device settings
OLED display
KNX programming LED

KNX

Device model System B
Compatible with ETS 4.2 (or higher)

Connections

Connector for external power supply 230 V AC
Connection for KNX TP (red/black)
Connector for auxiliary voltage output (yellow/white).
