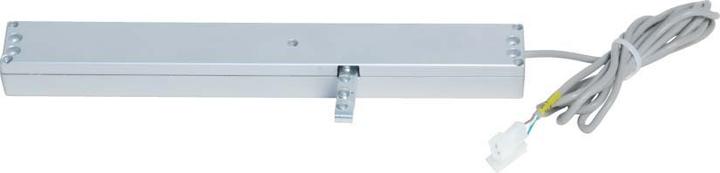

WindowMaster chain drive sync/motor WMX 504-2W250E 03

Manufacturer: WindowMaster
Description: Chain drive sync/motor, 0.5A/250mm/white
Type: WMX 504-2W250E 03
Max. opening width: 250 mm
Opening width: 250 mm
Protection class (IP): IP20
Current consumption: 0.5 A
Supply voltage: 24 V
Length of connecting cable: 2 m
Width: 332 mm
Height: 29 mm
Length: 42 mm

The WindowMaster chain drive sync/motor WMX 504-2W250E 03 is suitable for integrated installation in window profiles. It can be used for comfort ventilation and is compatible with all types of openings. It works together with ± 24V control units or control units with MotorLink and can be used alongside a WMB locking drive. The compression force depends on the chain stroke length, ranging from 45 to 150 N, with a traction force of 200 N. EAN: 5706654318748.
