Best selling Door hinges from Dr. Hahn
On this page you’ll find a ranking of the best Door hinges from Dr. Hahn. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.

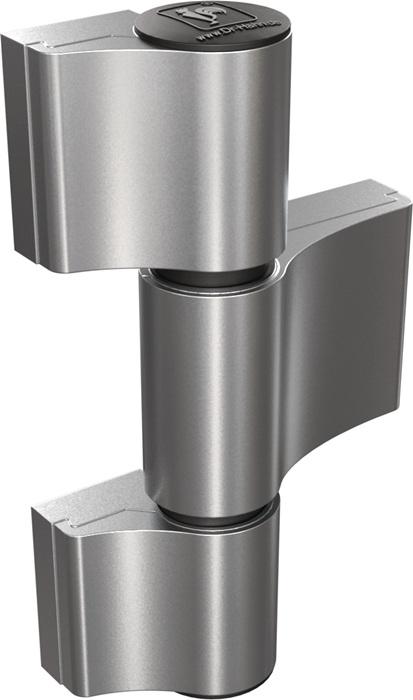

1. Dr. Hahn Door Hinge Rooster Series 4 / A 951
Hahn Door Hinge 4 AT Two- and Three-Part
New to these door hinges is the half-measure zero, where the frame hinge part has been minimized in space requirements. This new variant is particularly useful in situations where there is limited space on the frame side. The fastening is done through the hinge part. Whether using anchor screws, screw anchors, or mounting plates, all available Hahn fastening materials can be used for installation.
Available for all common aluminum profiles. Combination options and fastening variants for inward and outward opening doors - even with change profiles and corner post constructions. Variants for doors with extreme construction widths as well as doors with narrow frame profiles. Load capacity up to 220 kg (three-part) or 180 kg (two-part) - depending on profile construction and application situation. Adjustable in six directions. Usable DIN left/right. Opening angle over 180°. CE certified according to EN 1935:2002, hinge class 14.
Technology / Application:
Suitable for aluminum shells up to a height of 23 mm. Horizontal adjustment infinitely ± 2.5 mm for faster processing. Height adjustment infinitely +3 / -2 mm without lifting or lowering the leaf. Seal pressure adjustment ± 0.5 mm on the installed door leaf.
Fastening: Anchor screws 58 mm.
Scope of delivery: including anchor screws.
Center distance (mm): 65. Pivot point (mm): 20. Type: Series 4 AT, three-part. Design: with anchor screw 58 mm. Material: anodized silver aluminum. Brand: Hahn. Factory number: M9511W000. Content (ST): 1.
2. Dr. Hahn Door hinge wood / aluminum tap series 4 / A 951
The door hinge Wood/Alu Hahn Series 4 / A 951 from Dr. Hahn is a high-quality door fitting designed for reliable and long-lasting use. This three-part object hinge features an invisible screw connection that ensures an aesthetic and clean appearance. The adjustability in both horizontal and vertical directions allows for precise adjustments to ensure optimal functionality. With a maximum leaf weight of 220 kilograms, this door hinge is suitable for heavy doors and offers high stability. The use of aluminum provides a robust construction, while the color in Traffic White RAL 9016 gives it a modern and appealing look. This product is ideal for use in various door systems and meets the requirements for quality and safety.
- Invisible screw connection for a clean appearance
- Adjustability: horizontal +/- 2.5 mm, vertical +3 / -2 mm
- Maximum leaf weight of 220 kilograms.

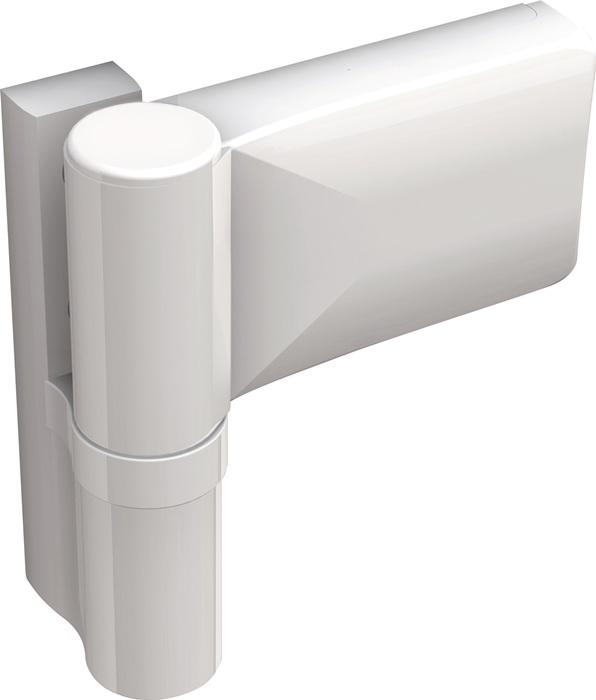

3. Dr. Hahn Kunststofftürband KT-V 6R
The KT-V 6R plastic door hinge from Dr. Hahn is a high-quality solution for representative entrance areas. It is a surface-mounted hinge suitable for both left and right applications. The construction made of extruded aluminum ensures high stability and durability. The plastic parts are designed in an appealing white, contributing to the aesthetic design of doors. A standout feature of this hinge is its infinitely adjustable three-dimensional capability, allowing for precise adjustments. Additionally, the bearing point is maintenance-free, minimizing upkeep efforts. The product is largely pre-assembled, making installation easier and saving time.
- Infinitely adjustable in three dimensions for precise adjustments
- Maintenance-free bearing point for low upkeep
- Made from extruded aluminum for high stability
- Direct mounting for easy installation.
4. Dr. Hahn Door hinge cock series 4 / A 961
Hahn Door Hinge 4 AT Two- and Three-Part
New with these door hinges is the half-measure zero, where the frame hinge part has been minimized in terms of space requirements. This new variant is particularly useful in situations where there is limited space on the frame side. The fastening is done through the hinge part. Whether using anchor screws, screw anchors, or mounting plates, all available Hahn fastening materials can be used for installation.
Available for all common aluminum profiles. Combination options and fastening variants for doors that open inwards and outwards - even with change profiles and corner post constructions. Variants are available for doors with extreme construction widths as well as doors with narrow frame profiles. Load capacity up to 220 kg (three-part) or 180 kg (two-part) - depending on profile structure and application situation. Adjustable in six directions. Usable DIN left/right. Opening angle greater than 180°. CE certified according to EN 1935:2002, hinge class 14.
Technical / Application:
Suitable for aluminum shells up to a height of 23 mm. Horizontal adjustment infinitely ± 2.5 mm for faster processing. Vertical adjustment infinitely +3 / -2 mm without lifting or lowering the wing. Seal pressure adjustment ± 0.5 mm on the installed door leaf.
Fastening: Anchor screws 58 mm.
Scope of delivery: including anchor screws.
Design: with anchor screw 58 mm. Axis distance (mm): 86. Material: anodized silver aluminum. Type: Series 4 AT, three-part. Pivot point (mm): 20. Brand: Hahn. Factory number: M9611W000. Content summary (ST): 1.
5. Dr. Hahn Door hinge cock series 4 / A 963
The door hinge of the Dr. Hahn Series 4 / A 963 is a high-quality door fitting designed for reliable and long-lasting use. This three-part object hinge features an invisible screw connection that ensures an aesthetic and clean appearance. The adjustability of the door hinge allows for precise adjustments to ensure optimal functionality and stability. With a maximum load capacity of 220 kilograms, this door hinge is ideal for heavy doors. Made from aluminum, it offers a robust and corrosion-resistant solution for various applications both indoors and outdoors. The use of countersunk screws with a diameter of 58 mm ensures secure fastening and easy installation.
- Invisible screw connection for an aesthetic appearance
- Adjustability: horizontal +/- 2.5 mm, vertical +3 / -2 mm
- Maximum load capacity of 220 kg for heavy doors
- Made from corrosion-resistant aluminum.
6. Dr. Hahn Kunststofftürband KT-N 6R
The KT-N 6R plastic door hinge from Dr. Hahn is a high-quality solution for securing main and secondary entrance doors. It stands out for its versatile applicability, as it is suitable for both left- and right-hinged doors. The three-dimensional adjustability allows for precise fitting to ensure optimal functionality and durability. Made from extruded aluminum, the hinge offers a robust and reliable construction. The white plastic components blend harmoniously with various door designs, contributing to the overall aesthetic effect. Additionally, the bearing point is maintenance-free, which minimizes upkeep and extends the product's lifespan.
- Three-dimensional adjustability for optimal fitting
- Made from extruded aluminum for high stability
- Maintenance-free bearing point for long-term use
- Suitable for DIN left and right, versatile applicability.
7. Dr. Hahn Door Hinge Rooster Series 4 / A 952
The door hinge of the Dr. Hahn Series 4 / A 952 is a high-quality door fitting designed for reliable and long-lasting use. This three-part object hinge features an invisible screw connection that ensures an aesthetic and clean appearance. The adjustability of the door hinge allows for precise customization to ensure optimal functionality. With a maximum leaf weight capacity of 220 kilograms, this door hinge is suitable for various types of doors and offers high stability. The use of aluminum as the material provides a robust and corrosion-resistant solution, making it ideal for use in different environments. The door hinge is manufactured in Germany and meets high-quality standards.
- Invisible screw connection for a clean appearance
- Horizontal adjustability of +/- 2.5 mm
- Vertical adjustability of +3 / -2 mm
- Maximum leaf weight of 220 kilograms.

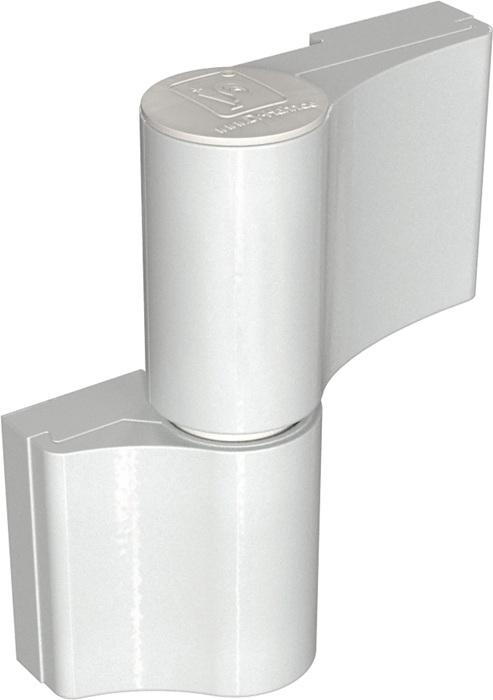

8. Dr. Hahn HAHN door hinge 4 AT, 2-part 20/65/58 with anchor screw, white RAL 9016
Hahn door hinge 4 AT two- and three-part. A new feature of these door hinges is the half measure zero, where the frame hinge part has been minimized in space requirements. This new variant is particularly useful in situations where there is limited space on the frame side. The fastening is done through the hinge part. Whether anchor screw, screw anchor, or mounting plate, all available Hahn fastening materials can be used for installation. Available for all common aluminum profiles. Combination options and fastening variants for doors that open inwards and outwards - even with change profiles and corner post constructions. Variants for doors with extreme construction widths as well as doors with narrow frame profiles. Load capacity up to 220 kg (three-part) or 180 kg (two-part) - depending on profile construction and application situation. Adjustable in six directions. Usable for DIN left/right. Opening angle > 180°. CE certified according to EN 1935:2002, hinge class 14. Technology / Application: suitable for aluminum shells up to a height of 23 mm. Horizontal adjustment stepless ± 2.5 mm for faster processing. Height adjustment stepless +3 / -2 mm without lifting or lowering the wing. Seal pressure adjustment ± 0.5 mm on the installed door leaf. Fastening: anchor screws 58 mm. Delivery includes: including anchor screws. Pivot point (mm): 20. Type: Series 4 AT, two-part. Axis distance (mm): 65. Material: Aluminum white RAL 9016. Version: with anchor screw 58 mm. Brand: Hahn. Factory number: M901GW000. Content (ST): 1.
9. Dr. Hahn Universal tape
Two-part design for doors made of metal profiles, resistant to high pressure and tensile forces. The cover piece is screwed in to enhance break-in protection. Usable for both DIN-left and DIN-right configurations, with maintenance-free bearing points. Adjustment options include horizontal +/- 2.5 mm, vertical +3 / -2 mm, and sealing pressure +/- 0.5 mm.
10. Dr. Hahn Door hinge 4 AT
Available for all common aluminium profiles. Combination options and fastening variants for doorsinward-opening and outward-opening doors with interchangeable profile and corner post constructions. All metal parts are corrosion-protected. Variants for doors with extreme widths and doors with narrow frames. Special versions for burglar-resistant doors. Can be used DIN left/DIN right. Hinges available in anodised shades and RAL colours.
