Best selling EV chargers from Schneider
On this page you’ll find a ranking of the best EV chargers from Schneider. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.

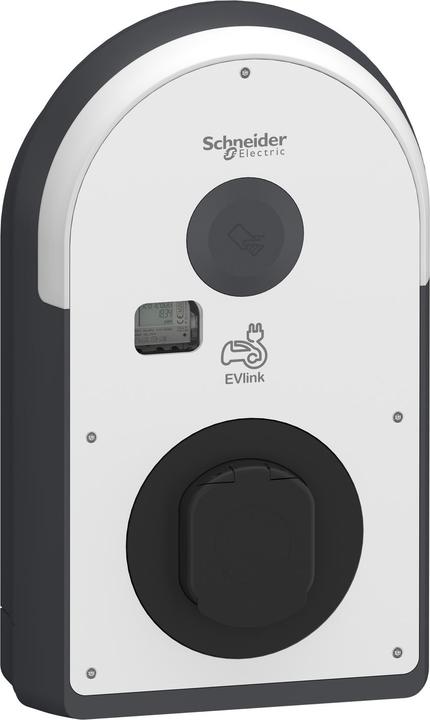

1. Schneider EVB3I22N40M
EVlink Pro AC Wallbox in a metrological compliant version with type socket and shutters. Designed for use in public garages or parking lots, suitable for indoor or outdoor wall installation, on the EVlink pole, or in the metal kit. Charging mode according to IEC 61851-1, 3-phase with a maximum charging power of 22 kW, type socket. Equipped with an integrated metrological compliant meter, 6mA DC fault current detection allows for the use of an RCD type A. Digital inputs: for temporary current limitation, for delayed charging, for EV presence detection. Access control via NFC RFID reader. NFC reader 13.56 MHz compatible with type 1, 2, and badges, RFID reader complies with ISO/IEC 14443 and ISO/IEC 15693 protocols, compatible with Mifare Ultralight, Mifare Classic, Mifare Plus. User information and status messages are displayed via a clearly visible LED arch, commissioning of the wallbox via the eSetup app via Bluetooth. Communication standards: Bluetooth, Ethernet connections for daisy chain, Modbus serial, Modbus TCP, OCPP 1.6J for connection to a backend and the EcoStruxure EV Charging Expert load management system. Optional accessories: Wi-Fi module, modem module, ISO 15118 module, pluggable on the charging controller. Color of the charging station: housing: dark gray RAL 7016 and black RAL 9005, front cover: white RAL 9003. Dimensions WxHxD: 317x529x153mm, weight: 7.5 kg, material: UV-treated polycarbonate. Impact resistance IK10, protection class IP55, operating temperature -25 to 40 °C, storage temperature -40 to 80 °C, maximum operating altitude 2000m without derating, relative humidity up to 95%, self-consumption according to 10W. Earthing system: TT, TNS or TNCS, IT compatible with additional isolation transformer in the power supply. Norms and standards: CE, E.V. Ready, IEC/EN 61851-1 Ed 3.0, IEC/EN 62196-1 Ed 2.0, IEC/EN 62196-2 Ed 1.0, EN 61000-6-2: 2019, EN 61000-6-3:2007 A1:2011, IEC 60884-1 and NF-C 61314.
2. Schneider EVP1HSM23
The Schneider EVP1HSM23 is an electric vehicle charging station designed as a wallbox, making it ideal for installation in both private and commercial settings. This charging station supports the Type 2 connector, which is used in many modern electric vehicles, allowing for efficient and safe charging. With a compact design featuring a height and width of 110 millimeters and a depth of 90 millimeters, the wallbox can be easily integrated into various environments. The EVP1HSM23 also offers access protection through RFID technology, ensuring additional security during the charging process. Manufactured in France, this product stands for quality and reliability. The wallbox is designed as a T2 3Ph subassembly and is suitable for both private use and commercial applications where a reliable charging infrastructure is required. The delivery includes a unit that contains all the necessary components for installation.
3. Schneider EVP1HSM21
The Schneider EVP1HSM21 is a high-quality electric vehicle charging station specifically designed for use in both private and commercial settings. This wallbox is part of the EVLink series and provides a reliable and efficient charging option for electric vehicles with a Type 2 connector. With a compact design measuring 110 millimeters in width and height, and 90 millimeters in depth, the charging station can be flexibly integrated into various environments. The EVP1HSM21 features RFID access protection, ensuring additional security during the charging process. Manufactured in France, this product stands for quality and durability. The wallbox is designed as a replacement part for the EVLink Wallbox G3 and offers easy installation and maintenance. It is an ideal solution for anyone looking for a reliable and user-friendly charging option for their electric vehicle.
4. Schneider Wallbox EVLINK PRO AC 22kW, T2S socket, MID, NFC/RFID Reader
EVlink Pro AC Wallbox with Type 2 socket and shutters. Designed for use in semi-public garages or parking lots, suitable for indoor or outdoor wall installation, on the EVlink pole, or in the metal kit. Mode 3 charging according to IEC 61851-1, 3-phase with a maximum charging power of 22 kW, Type 2 socket. Equipped with an integrated 3-phase MID meter and a Type B-EV residual current device as a separate component included in the delivery. Digital inputs: 1 for temporary power limitation, 1 for delayed/suspended charging, 1 for EV presence detection. Access control via NFC/RFID reader. NFC reader 13.56 MHz compatible with Type 1, 2, 4, and 5 badges, RFID reader complies with ISO/IEC 14443 A & B and ISO/IEC 15693 protocols, compatible with Mifare Ultralight, Mifare Classic, Mifare Plus. User information and status indication via a clearly visible LED arc, commissioning of the wallbox via eSetup app via Bluetooth. Communication standards: Bluetooth, Ethernet 2 ports (1 for Daisy Chain), Modbus serial, Modbus TCP, OCPP 1.6J for connection to a backend and the EcoStruxure EV Charging Expert load management system. Optional accessories: WiFi module, modem module, ISO 15118 module, pluggable onto the charging controller. Color of the charging station: Body: Dark gray RAL 7016 and Black RAL 9005, Front cover: White RAL 9003. Dimensions WxHxD: 317x529x153 mm, Weight: 7.5 kg, Material: UV-treated polycarbonate. Impact resistance IK10, protection rating IP55, operating temperature -30 to 50 °C, storage temperature -40 to 80 °C, maximum operating altitude 2000 m without derating, relative humidity 5 to 95%, self-consumption <10 W. Earthing system: TT, TN(S) or TN(C)(S), IT compatible with additional isolation transformer in the power supply. Standards and regulations: CE, E.V. Ready, IEC/EN 61851-1 Ed 3.0, IEC/EN 62196-1 Ed 2.0, IEC/EN 62196-2 Ed 1.0, EN 61000-6-2: 2019, EN 61000-6-3: 2007 + A1: 2011, IEC 60884-1 and NF-C 61314.
EV chargers
EUR1819,–
Schneider Wallbox EVLINK PRO AC 22kW, T2S socket, MID, NFC/RFID Reader
Type 2, 22 kW

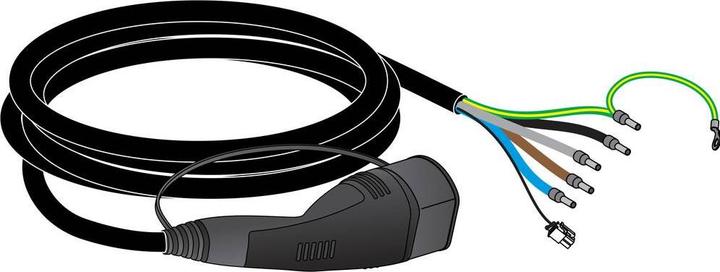

5. Schneider EVP2CNS323C4
6. Schneider Pro AC Wallbox, 22kW, T2S socket, 6mA, IP55, IK10, NFC/RFID Reader EVB3S22N41
EVlink Pro AC Wallbox with Type 2 socket and shutters. Designed for use in semi-public garages or parking lots, suitable for indoor or outdoor wall installation, on the EVlink pole, or in the metal kit. Mode 3 charging according to IEC 61851-1, 3-phase with a maximum charging power of 22 kW, Type 2 socket. Equipped with integrated 6mA DC fault current detection (allows the use of an RCD Type A). Digital inputs: 1 for temporary power limitation, 1 for delayed/suspended charging, 1 for EV presence detection. Access control via NFC/RFID reader, NFC reader 13.56 MHz compatible with Type 1, 2, 4, and 5 badges. RFID reader complies with ISO/IEC 14443 A & B and ISO/IEC 15693 protocols, compatible with Mifare Ultralight, Mifare Classic, Mifare Plus. User information and status indication via a clearly visible LED arc, commissioning of the wallbox via eSetup app via Bluetooth. Communication standards: Bluetooth, Ethernet 2 ports (1 for Daisy Chain), Modbus serial, Modbus TCP, OCPP 1.6J for connection to a backend and the load management system EcoStruxure EV Charging Expert. Optional accessories: Wi-Fi module, modem module, ISO 15118 module, pluggable onto the charging controller. Color of the charging station: Housing: Dark gray RAL 7016 and Black RAL 9005, Front cover: White RAL 9003. Dimensions WxHxD: 317x529x153mm, Weight: 7.5 kg, Material: UV-treated polycarbonate. Impact resistance IK10, protection class IP55, operating temperature -30 to 50°C, storage temperature -40 to 80°C, maximum operating altitude 2000m, relative humidity 5 to 95%, self-consumption max. 10W. Earthing system: TT, TN(S) or TN(C)(S), IT compatible with additional isolation transformer in the power supply. Standards and regulations: CE, E.V. Ready, IEC/EN 61851-1 Ed 3.0, IEC/EN 62196-1 Ed 2.0, IEC/EN 62196-2 Ed 1.0, EN 61000-6-2: 2019, EN 61000-6-3:2007 + A1:2011, IEC 60884-1 and NF-C 61314.
EV chargers
EUR1289,–
Schneider Pro AC Wallbox, 22kW, T2S socket, 6mA, IP55, IK10, NFC/RFID Reader EVB3S22N41
Type 2, 22 kW, 32 A

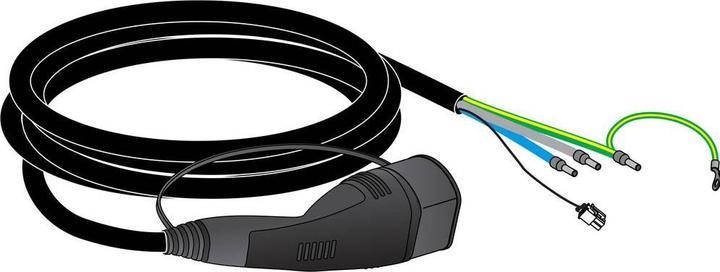

7. Schneider EVP2CNS321C4
The Schneider EVP2CNS321C4 is a powerful electric vehicle charging station designed for the efficient and safe charging of electric vehicles. With a current of 16 amperes and a charging power of 7400 watts, this wallbox allows for a rapid energy supply. It is equipped with a Type 2 connector, ensuring broad compatibility with various electric vehicles. The charging station is suitable for both indoor and outdoor use and offers a cable length of 4 meters, allowing for flexible installation. The Schneider EVP2CNS321C4 complies with the Mode 3 standard for connection to infrastructure, facilitating easy integration into existing charging systems. Manufactured in France, this charging station combines quality and reliability, making it an ideal solution for anyone seeking a practical and efficient way to charge their electric vehicle.
8. Schneider EVB3I22N40MB
The EVlink Pro AC Wallbox from Schneider is a state-of-the-art charging station specifically designed for use in public garages and parking lots. It features a legal-compliant design with a Type 2 socket that includes integrated shutters. This wallbox is suitable for both indoor and outdoor installation and can be mounted on a wall, on an EVlink pole, or in a metal kit. With a charging power of up to 22 kW and support for Mode 3 charging according to IEC 61851-1, it is ideal for fast and efficient electric vehicle charging. The wallbox is equipped with a legal-compliant meter and offers additional safety features such as a Type B-EV residual current protection device. Commissioning is conveniently done via the eSetup app through Bluetooth, and users can read information and status messages from a clearly visible LED arch. The wallbox supports various communication standards, including Bluetooth, Ethernet, and Modbus, and is equipped with access protection via NFC and RFID.
- Legal-compliant design with integrated meter
- Support for Mode 3 charging with up to 22 kW
- Access protection via NFC/RFID reader
- Compatible with load management systems and Open Charge Point Protocol (OCPP)
- Protection class IP55 for outdoor use.
9. Schneider EVP2CNS161C4
The Schneider EVP2CNS161C4 EVlink Wallbox G3 is a reliable and powerful charging station for electric vehicles. With a charging power of 3.7 kW and a current of 16 Amperes, it enables efficient and fast charging. The wallbox is equipped with a Type 2 connector, which is compatible with most electric vehicles. The 4-meter cable length provides flexibility for installation and use. Thanks to its IP54 protection rating, the charging station is protected against dust and splashes, making it ideal for outdoor use. The Schneider EVlink Wallbox G3 is a practical solution for anyone looking for a reliable and user-friendly charging option for their electric vehicle.
