Best Schneider Electric products in the EV chargers category
On this page you'll find a ranking of the best Schneider Electric products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Schneider Electric Charge
Schneider Charge intelligent wall-mounted charging station. Maximum power: 11 kW. Wall-mounted with a 7 m long Type 2 charging cable. Dimensions: 244 mm x 352 mm x 107 mm. Weight: 4.4 kg. Simple and elegant design with easy installation.

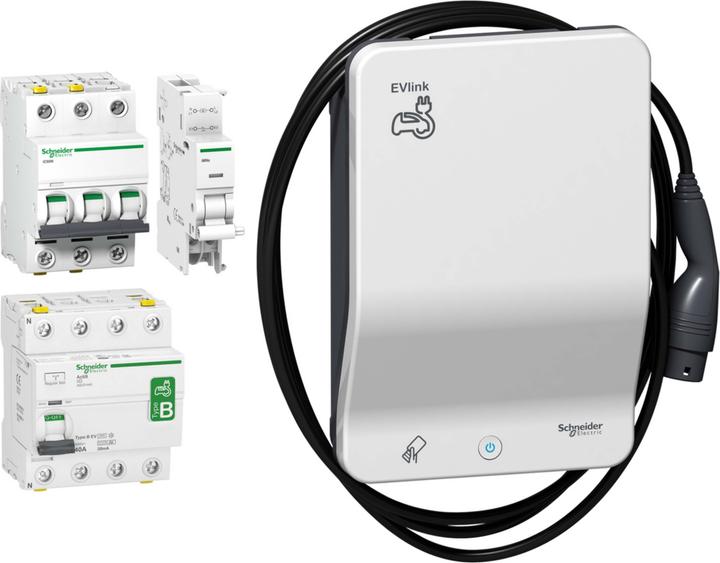

2. Schneider Electric Wallbox EVLink Bundle G4 KITEVB1A22CA
Product bundle EVlink for Charge@Home or Charge@Work with up to 22 kW charging power, consisting of an EVlink Wallbox G4 with a fixed cable and the necessary protection components. The bundle includes the following individual references: 1 x EVB1A22PCRI - EVlink Wallbox G4 22 kW T2 cable RFID, 1 x A9F04340 - Circuit breaker iC60N, 3P, 40A, C characteristic, 1 x A9Z51440 - RCD IID 4P 40A 30mA Type B-EV, 1 x A9A26969 - iMNx undervoltage release 230V AC for iC60/IID.

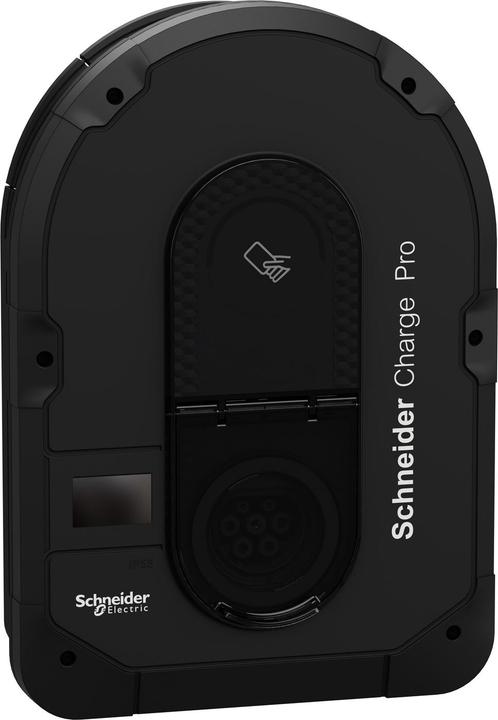

3. Schneider Electric Schneider Charge
The Schneider Charge Pro Wallbox with Type 2 socket delivers up to 22 kW charging power for all electric vehicles according to IEC 61851-1. The wallbox can be mounted indoors or outdoors, on a wall or on a pedestal, and is specifically designed for applications in multi-family homes or for fleets. Charging authorization is managed via an RFID/NFC chip. It features a 6 mA DC residual current detection (RDC-DD), allowing for the use of a preceding RCD Type A. Thanks to the integrated MID meter with a front-facing viewing window, charging processes can be billed in accordance with MID standards. Connection to a billing platform via OCPP can be made via Ethernet. For local charging point monitoring and load management to prevent overload of the main supply as well as for load distribution optimization, the Charge Pro can be connected to the EcoStruxure EV Charging Expert. User information and status messages are provided to the user via an LED arc, and the commissioning of the wallbox is done through the eSetup app. Access control: free access, RFID/NFC: MIFARE DESFire EV1 tag, MIFARE DESFire EV2 tag, MIFARE tag, MIFARE DESFire EV1 RFID card, MIFARE DESFire EV2 RFID card, MIFARE RFID card. Dimensions (WxHxD): 292 x 418 x 136 mm, weight: 3 kg, material: UV-treated polycarbonate, color of the charging station: Black RAL 9005. Impact resistance IK10, protection class IP55, operating temperature -25 to 50 °C, storage temperature -40 to 85 °C, maximum operating altitude 2000 m without derating, relative humidity 5 to 95%. Earthing system: TT, TN(S) or TN(C)(S), IT compatible with an additional isolation transformer in the power supply. Norms and standards: CE, EN 61851, IEC 61851-1, EN 61000-6-1, EN 61000-6-3, IEN 301-489-1, EN 301-489-3, IEC 62955.

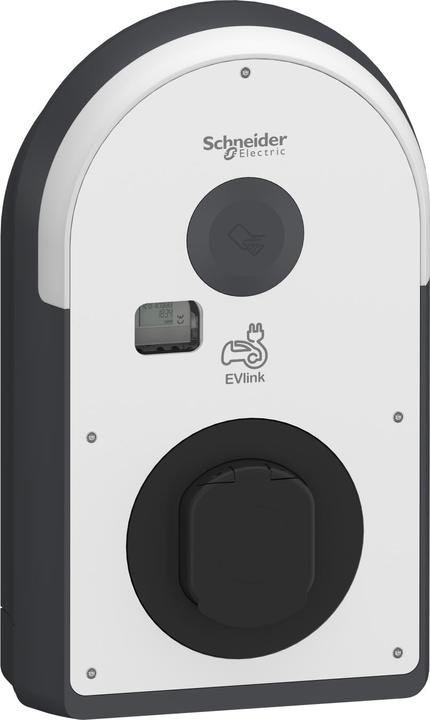

4. Schneider Electric EVB3S22N4B
EVlink Pro AC is the third generation of EVlink chargers. It ensures reliable, stable, and smart charging along with improved protection and connectivity. A seamless user experience for both users and installers. Suitable for semi-public parking facilities, commercial and industrial buildings, workplace charging, and residential complexes. Easy to install, use, maintain, and service due to digital features and enhanced protection. Certified according to IEC 61851-1 ed. 3 standard. This model includes a built-in type B residual current protective device and an under-voltage release.
Note, installation personnel who attach, commission, and maintain the charging station must have the relevant qualifications and authorization to work with electrical systems. This professional electrician is fully responsible for complying with applicable installation rules and regulations. The charging station should not be self-installed.
Features:
Easy to install and use
Versatile network connectivity
Installation on a wall or on a separately sold pedestal.

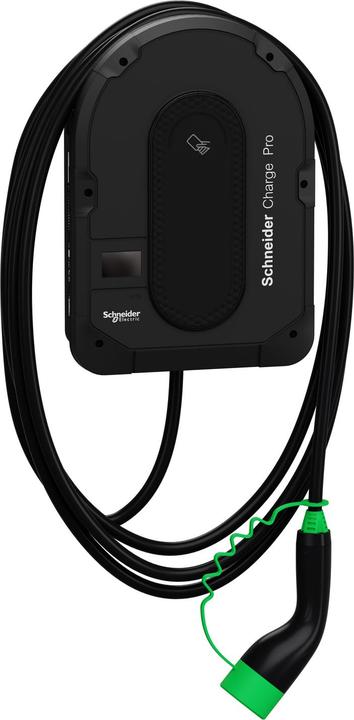

5. Schneider Electric Schneider Charge Pro
The Schneider Charge Pro Wallbox with a 7 m Type 2 charging cable delivers up to 22 kW of charging power for all electric vehicles according to IEC 61851-1. The wallbox can be mounted indoors or outdoors, on a wall or on a pedestal, and has been specifically designed for applications in multi-family homes or for fleets. Charging authorization is managed via an RFID/NFC chip. It features a 6 mA DC fault current detection (RDC-DD), allowing for the use of a pre-installed Type A RCD. Thanks to the integrated MID meter with a front-facing viewing window, charging processes can be billed in accordance with MID regulations. Connection to a billing platform via OCPP can be done via Ethernet. For local charging point monitoring and load management to prevent overload of the house connection as well as for load distribution optimization, the Charge Pro can be connected to the EcoStruxure EV Charging Expert. User information and status messages are provided to the user via an LED arc, and the commissioning of the wallbox is done through the eSetup app. Access control: free access, RFID/NFC: MIFARE DESFire EV1 tag, MIFARE DESFire EV2 tag, MIFARE tag, MIFARE DESFire EV1 RFID card, MIFARE DESFire EV2 RFID card, MIFARE RFID card. Dimensions WxHxD: 292 x 418 x 119 mm, weight: 7 kg, material: UV-treated polycarbonate, color of the charging station: Black RAL 9005. Impact resistance IK10, protection class IP55, operating temperature -25 to 50 °C, storage temperature -40 to 85 °C, maximum operating altitude 2000 m without derating, relative humidity 5 to 95%. Earthing system: TT, TN(S) or TN(C)(S), IT compatible with additional isolation transformer in the power supply. Norms and standards: CE, EN 61851, IEC 61851-1, EN 61000-6-1, EN 61000-6-3, IEN 301-489-1, EN 301-489-3, IEC 62955.

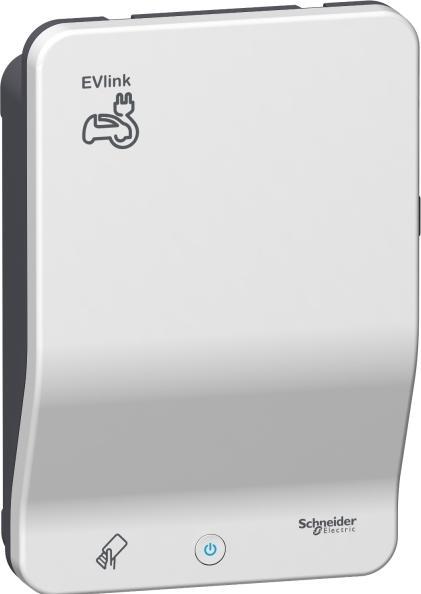

6. Schneider Electric EVlink
Schneider Electric EVlink Wallbox G4 EVB1A22P2RI
Manufacturer: Schneider Electric
Designation: EVlink Wallbox G4 7.4/22kW-T2 RFID
Type: EVB1A22P2RI
Version Connection system side: Other
Number of charging points: 1
Max. power per charging point: 22 kW
Rated connection power: 22 kW
Width: 330 mm
Height: 480 mm
Depth: 170 mm
Mounting type: Wall-mounted
Number of charging sockets type 2: 1
With house connection box (HAK): No
With circuit breaker: No
With communication interface: Yes
With energy meter: No
Function access control: Yes
With load management: Yes
Material of housing: Plastic
Protection class (IP): IP54
Impact resistance: IK10
EVLink Wallbox G4 Smart with socket is a wall-mounted charging station with 1 charging point. It features a maximum charging power of 7.4/22 kW, type 1 x 2, TE 3P+N. Suitable for semi-public garages and parking lots, it can be used indoors or outdoors (IP54). Access control is available with a key switch or RFID. It supports OCPP communication with a backend, Ethernet, and optional WLAN or GPRS. An electricity meter and Modbus for external MID meter are included, with an optional TE household socket.
7. Schneider Electric EVB3S22N40M
EVlink Pro AC Wallbox with Type 2 socket and shutters. Designed for use in semi-public garages or parking lots, suitable for indoor or outdoor wall installation, on the EVlink pole, or in the metal kit. Mode 3 charging according to IEC 61851-1, 3-phase with a maximum charging power of 22 kW, Type 2 socket. Features an integrated MID meter, 3-phase, 6 mA DC fault current detection (allows the use of an RCD Type A). Digital inputs: 1 for temporary power limitation, 1 for delayed/suspended charging, 1 for EV presence detection. Access control via NFC / RFID reader. NFC reader 13.56 MHz compatible with Type 1, 2, 4, and 5 badges, RFID reader complies with ISO/IEC 14443 A & B and ISO/IEC 15693 protocols, compatible with Mifare Ultralight, Mifare Classic, Mifare Plus. User information and status indication via a highly visible LED arc, commissioning of the wallbox via eSetup app via Bluetooth. Communication standards: Bluetooth, Ethernet 2 ports (1 for Daisy Chain), Modbus serial, Modbus TCP, OCPP 1.6J for connection to a backend and the load management system EcoStruxure EV Charging Expert. Optional accessories: Wi-Fi module, modem module, ISO 15118 module, pluggable on the charging controller. Color of the charging station: Housing: Dark gray RAL 7016 and Black RAL 9005, Front cover: White RAL 9003. Dimensions WxHxD: 317x529x153 mm, Weight: 7.5 kg, Material: UV-treated polycarbonate. Impact resistance IK10, Protection class IP55, Operating temperature -30 to 50 °C, Storage temperature -40 to 80 °C, Maximum operating altitude 2000 m without derating, Relative humidity 5 to 95 %, Self-consumption <10 W. Earthing system: TT, TN(S) or TN(C)(S), IT compatible with additional isolation transformer in the power supply. Norms and standards: CE, E.V. Ready, IEC/EN 61851-1 Ed 3.0, IEC/EN 62196-1 Ed 2.0, IEC/EN 62196-2 Ed 1.0, EN 61000-6-2: 2019, EN 61000-6-3:2007 + A1:2011, IEC 60884-1 and NF-C 61314.
8. Schneider Electric Wallbox
Schneider Charge 22 kW Wallbox with Type 2 socket for Mode 3 charging according to IEC 61851-1. Designed for easy installation without special tools and integration into smart homes using the Wiser app for controlling and monitoring the wallbox. Suitable for home use, for indoor or outdoor installation (IP55 / IK10) on the wall. Three-phase with a maximum charging power of 22 kW, including 6 mA DC detection (enabling the use of a Type A RCD). Charging power regulation through the optional Schneider Charge Peak Controller via PLC, including pairing between the Peak Controller and Schneider Charge. Sleek and elegant design with a front LED to indicate status and a side LED to monitor the connection status to the home network. Charging release via Plug’n’Charge or with the help of the Wiser app, and termination by the vehicle. Power connection three-phase (3P+N), 400 V / 32 A, suitable for TN-S, TT, and IT networks. Dimensions WxHxD: 244 mm x 352 mm x 117 mm, weight: 3.2 kg, operating temperature -30 to 45 °C, color white (RAL 9003) and green. Communication with the Wiser app or third-party providers via OCPP 1.6j. Connection to the home network via Ethernet RJ45 or Wi-Fi.
Sustainability
The Green Premium environmental label is Schneider Electric's commitment to delivering products with top-notch environmental performance. Green Premium promises compliance with the latest regulations, transparency regarding environmental impacts, and circular and low CO2 products. The product sustainability assessment guide is a white paper that explains global environmental labeling standards and the interpretation of environmental declarations.
