Junction box
−61%
only 1 piece on sale
EUR11,69 was EUR29,90
OBO Bettermann HW hulmurs elektronikdåse 74lufttaetHalogenfri
Best OBO Bettermann products in the Junction box category
On this page you'll find a ranking of the best OBO Bettermann products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. OBO Bettermann HW hulmurs elektronikdåse 74lufttaetHalogenfri
2. OBO Bettermann UP wall outlet box
Flush-mounted wall outlet box for single cable installation. Oval shape, designed for use in masonry with an installation depth of at least 35 mm. It features 2 entries up to 20 mm, 1 combination entry for 10 and 20 mm, and 1 entry up to 20 mm in the floor.
3. OBO Bettermann Train-
The OBO Bettermann junction and branch box is a high-quality solution for underfloor-covered installation systems, allowing for flexible and precise height adjustment. With a continuous height leveling range from 165 to 220 mm, this product offers easy adaptation to various screed heights. The box can be decoupled after the screed installation, ensuring straightforward installation and maintenance. The robust metal sidewalls are equipped with prefabricated entry openings, facilitating easy integration into underfloor installation channels. Additionally, the mounting protection cover provides extra protection during installation. This junction box is ideal for indoor use and offers a durable and reliable solution for electrical installations.
- Continuous height leveling from 165 to 220 mm
- Decouplable after screed installation
- Metal sidewalls with prefabricated entry openings
- Includes mounting protection cover.
4. OBO Bettermann Cable junction box
OBO Bettermann Cable Junction Box T100ED 06A
Manufacturer: OBO Bettermann
Description: Cable junction box 150x116x67, pastel
Type: T100ED 06A
Filling: other
Shape: rectangular
Rear entry: no
Length: 150 mm
Width: 116 mm
Depth: 67 mm
Stackable: no
Number of entries: 10
Type of enclosure entry: removable stepped membrane
Material: plastic
Halogen-free: yes
Surface protection: untreated
Color: pastel orange
Protection class (IP): IP66
Cover attachment: screwed
Seal-able: no
Rated insulation voltage Ui: 690 V
Function maintenance: E90
With shielding: no
Weather resistant: no
Explosion-proof version: no
For Ex Zone Gas: none
For Ex Zone Dust: none
OBO Bettermann Cable Junction Box T100ED 06A: additional details
Connection box with flexible insert seals. Sufficient wiring space due to diagonally arranged connection unit with fully pre-assembled high-temperature resistant ceramic terminals. Green-yellow marked protective conductor terminal. Mounting on easily accessible outer tabs. Approved for cable systems with electrical function maintenance according to DIN 4102 Part 12 with classes E30, E60, and E90. Ceramic terminals tested according to DIN EN 60998-2-1:2004. Includes 2 x screw anchors MMSplus P 6x35.

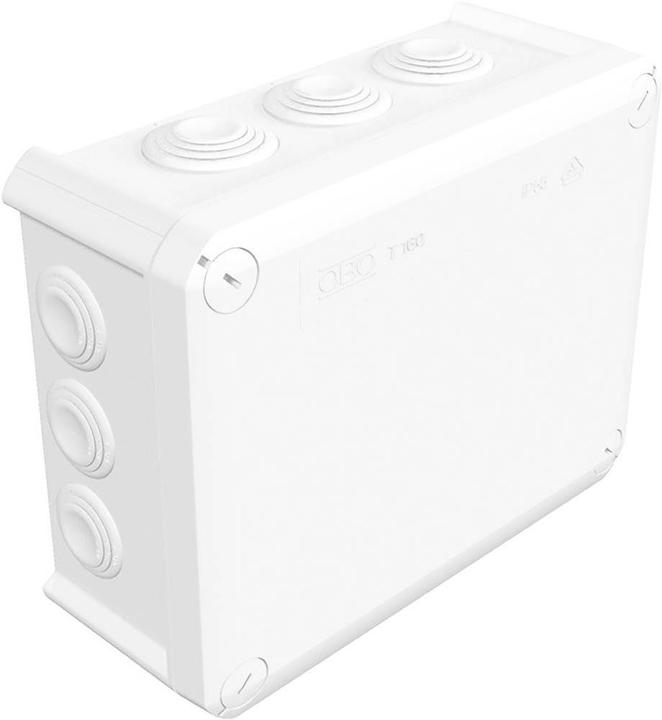

5. OBO Bettermann Junction box (L x W x H) 190
The T-series junction boxes are all UV-resistant. They are made of a thermoplastic polypropylene with insert seals made of ethylene-vinyl acetate (EVA). This allows cables to be installed through the 7x M25 + 5x M32 seals, or the seals can be cut with a knife at the designated points to create an entry opening for cables or pipes. Alternatively, cable glands can be inserted through the openings instead of the seals and secured from the inside with a counter nut. The junction boxes can be mounted on mounting plates using sheet metal screws 3.5 x 9.5 in openings at the bottom. Internal dimensions: 176 x 135 x 67 mm. Lid with labeling field and sealable.

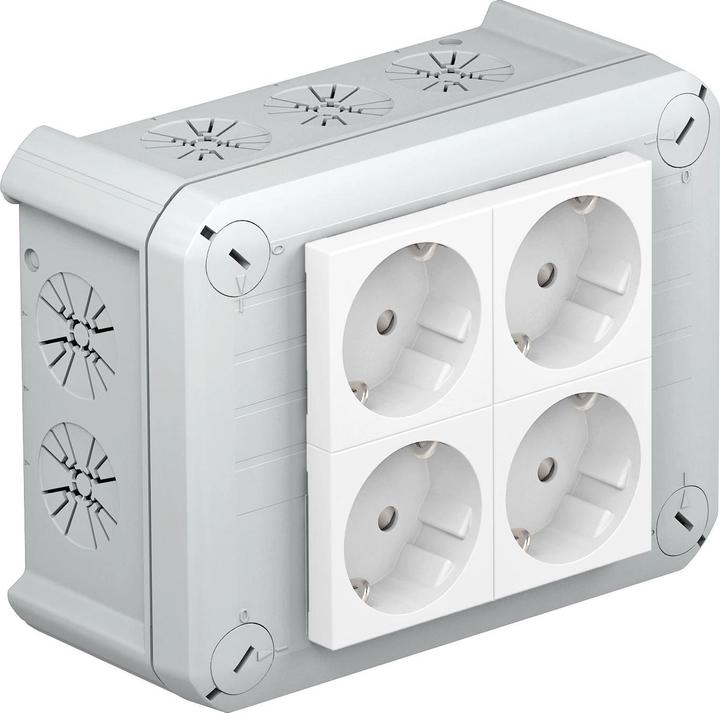

6. OBO Bettermann OBO T 100 4MSD WS Cable junction box 151x117x67 PP 4xsockets 33°ws 2+2 lichtg
Cable junction box for connecting cables and wires in indoor and protected outdoor areas. Rectangular shape with knock-out entries on the sides and bottom. Suitable for wall and ceiling mounting as well as installation on mounting plates. With the option for internal and external fastening when mounted over corner domes. Lid with quick release, sealable with loss protection and 4 module 45 sockets. Made from halogen-free and UV-resistant materials. Cable junction box in accordance with DIN EN 60670. Flame retardant according to DIN EN 60695-2-11, test temperature 650 °C.
Junction box
EUR129,99
OBO Bettermann OBO T 100 4MSD WS Cable junction box 151x117x67 PP 4xsockets 33°ws 2+2 lichtg
7. OBO Bettermann Junction box
The T-series junction boxes are all UV-resistant. They are made of a thermoplastic polypropylene with insert seals made of ethylene-vinyl acetate (EVA). This allows cables to be installed through the 7x M25 + 5x M32 seals, or the seals can be cut with a knife at the designated points to create an entry opening for cables or pipes. Alternatively, cable glands can be inserted through the openings instead of the seals and secured from the inside with a counter nut. The junction boxes can be mounted on mounting plates using sheet metal screws 3.5 x 9.5 in openings at the bottom. Internal dimensions: 176 x 135 x 67 mm. Lid with labeling field and sealable.

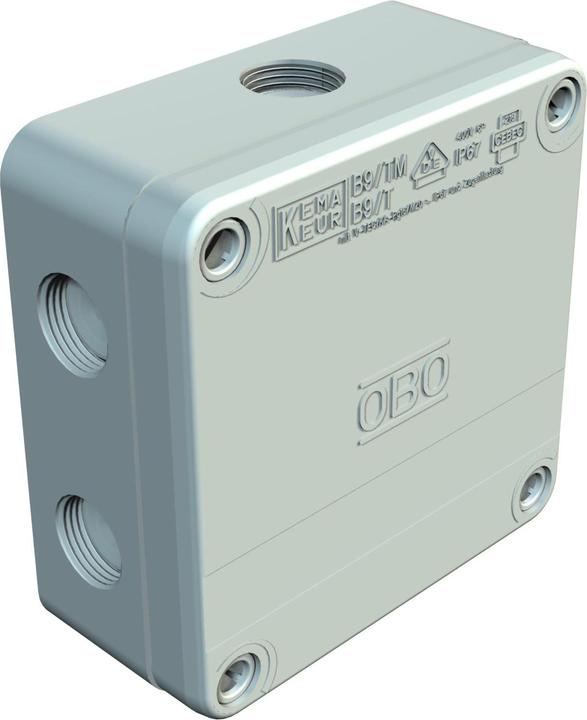

8. OBO Bettermann OBO B 9/T M NL cable junction box with 3 cable glands
The OBO B 9/T M NL cable junction box is a reliable solution for the safe distribution and connection of electrical cables. This junction box is made from two different halogen-free plastic components that are suitable for use in damp environments. With an IP67 protection rating, it offers high protection against the ingress of water and dust, making it ideal for indoor use. The box features two additional entry points at the bottom, equipped with piercing membranes to accommodate cables with a diameter of up to 15 mm. The use of cable glands allows for additional strain relief without the need to remove the membrane, making installation more efficient. The junction box is sealable and offers a rated voltage of 400 V as well as a nominal cross-section of 4 to 6 mm². Installation is done flush-mounted, and the mounting holes are molded with a soft plastic component to ensure easy installation.
- Made from halogen-free plastic components
- IP67 protection rating for optimal protection against water and dust
- Two additional entry points with piercing membranes
- Sealable lid for added security
- Easy installation due to molded mounting holes.

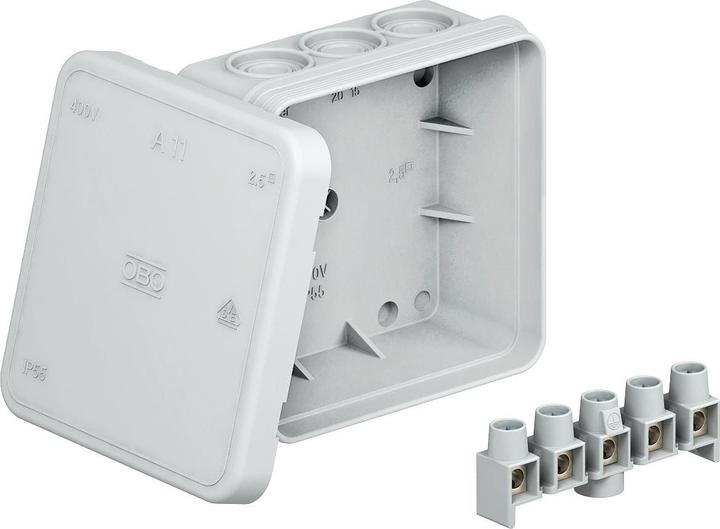

9. OBO Bettermann Cable junction box A 11/5 85x85x40 light gray w. terminal strip
The A 11/5 cable junction box from OBO Bettermann is a reliable solution for the safe distribution of electrical cables indoors. With compact dimensions of 85 x 85 x 40 mm, this junction box offers a practical way to organize and protect cable connections. Made from high-quality plastic, the box is light gray and blends harmoniously into various environments. The integrated terminal block allows for easy and secure cable connections, while the IP54 protection rating ensures that the box is protected against dust and splashes. This makes it ideal for use in dry indoor areas where a reliable cable connection is required. The cable junction box is a practical choice for electrical installations that demand both functionality and safety.
- IP54 protection rating for dust and splash protection
- Integrated terminal block for easy cable connections
- Made from durable plastic
- Suitable for ceiling mounting in indoor areas.

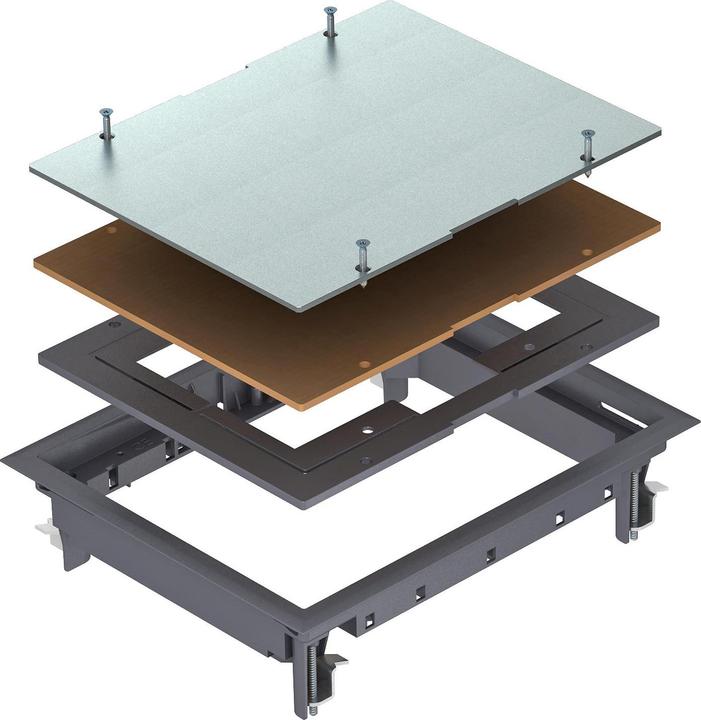

10. OBO Bettermann OBO ZES6-2 U10T 7011 junction box insert for universal mounting
Pull box insert for blind closure of a rectangular mounting opening of nominal size 6 in an underfloor system or raised floor in indoor areas. Carpet protection frame made of polyamide. Floor covering recess preset to 5 mm upon delivery, adjustable to 3, 8, or 10 mm if needed.
