Best BEG products in the Motion sensors category
On this page you'll find a ranking of the best BEG products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

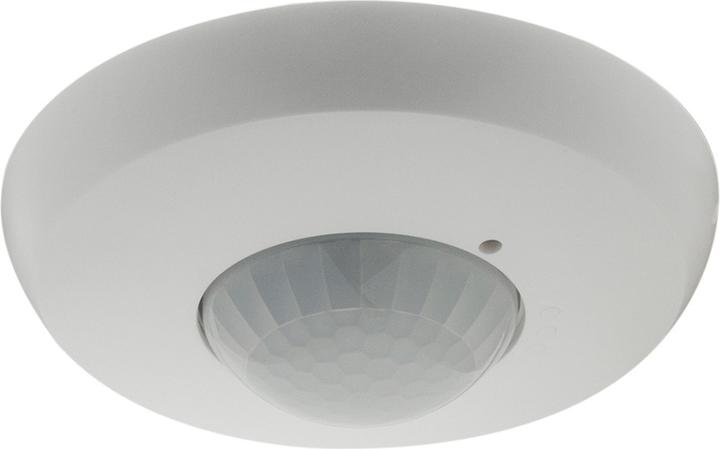

1. BEG 92142 Presence detector PD4-S-AP RAL9010
BEG Brück Electronic Presence Detector PD4-S-AP
Manufacturer: BEG Brück Electronic
Designation: Presence Detector Slave
Type: PD4-S-AP
Design: Motion Detector
Sensor Type: Passive Infrared
With DALI Interface: No
HVAC Control: No
Animal Passage: No
Under-Crawl Protection/Backfield Monitoring: No
Backfield Monitoring: No
Networkable: No
Optimal Mounting Height: 2.5 m
Stairwell Monitoring: Yes
Bypass Switch: No
Max. Range to One Side: 12 m
Max. Presence Area: 32 m²
Max. Frontal Range: 8 m
Detection Field Diameter on Floor: 24 m
Suitable for Wireless Transmission: No
Remote Controllable: No
With Remote Control: No
Adjustable Response Brightness: No
With Signal Unit: No
Teach Function for Response Brightness: No
Dimming Function with Dimming Insert: No
Mounting Type: Surface Mounted
Suitable for Ceiling Mounting: Yes
Suitable for Wall Mounting: No
Material: Plastic
Material Quality: Other
Halogen-Free: Yes
Surface Protection: Untreated
Surface Finish: Matte
Antibacterial Treatment: No
Color: White
RAL Number (Similar): 9010
Transparent: No
Protection Class (IP): IP54
Impact Resistance: IK04
Voltage Type: AC
Frequency: 50..60 Hz
Nominal Voltage: 110..240 V
Switch-Off Delay: 0 s
Switch-On Delay: 0 s
Suitable for C-Load: No
Temperature: -25..50 °C
Number of Switching Zones: 450
Control Current: 1 mA
Alarm Function: No
With Acoustic Sensor: No
Height: 76 mm
Diameter: 101 mm
With Connection Cable: No
Length of Connection Cable: 0 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT Support Available: No
BEG Brück Electronic Presence Detector PD4-S-AP: Additional Details
Slave device with a large detection range, designed to extend the detection range of a master device, sends a switching pulse to the master device upon detecting movement regardless of ambient brightness, compatible with 230 V master devices; for exceptions, please refer to the respective master device.
EAN: 4007529921423.

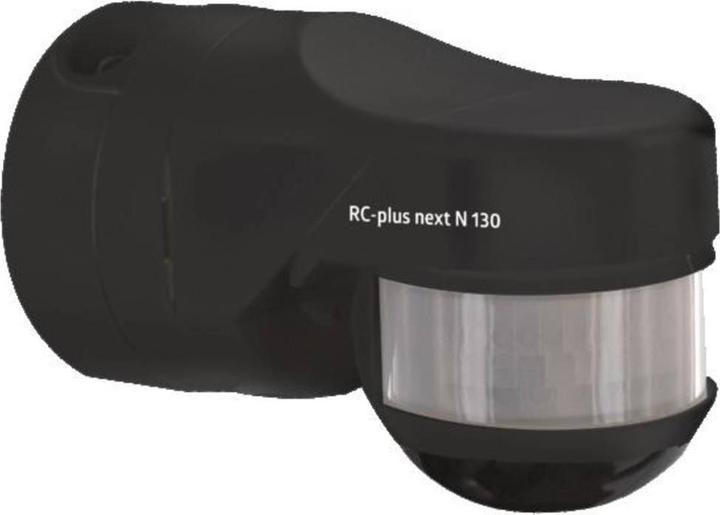

2. BEG 93321 RC-plus next N 130
Motion detector with a 130° field of detection and sneak-by protection. It features mechanical range adjustment and different follow-up times depending on the direction of movement. The device allows for uninterrupted parallel connection of several detectors. Manual switching is possible via a pushbutton, and it has an adjustable ball head. Immediate operation is available with factory settings, and additional functions can be set via the optional remote control.

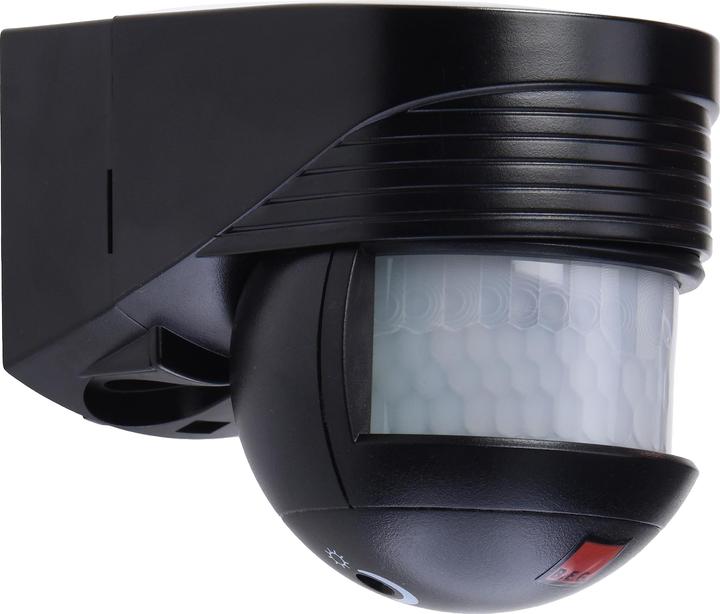

3. BEG Motion detector LC-CLICK-N-200-SW LUXOMAT black 200° LC-CLICK-N-200-SW
The LC-CLICK-N-200-SW motion detector from BEG is a highly advanced device designed for wall mounting, making it ideal for indoor use. With a detection angle of 200 degrees and a range of up to 12 meters, this motion detector provides comprehensive monitoring. The integrated under-crawl protection of 180 degrees ensures that even lower movements are reliably detected. The movable ball head allows for flexible positioning of the sensor, enabling the detection area to be customized. Installation is particularly easy thanks to the plug socket and the option for cable entry from various sides. The motion detector is designed for a maximum power consumption of 1000 watts and has an IP54 protection rating, which protects it from dust and splashes. These features make the LC-CLICK-N-200-SW a practical solution for indoor monitoring.
- Detection angle of 200 degrees for comprehensive monitoring
- Range of up to 12 meters
- Movable ball head for individual adjustment of the detection area
- Easy installation with plug socket and flexible cable entry
- IP54 protection rating for added protection against dust and splashes.
Motion sensors
−8%
EUR54,50 was EUR59,34
BEG Motion detector LC-CLICK-N-200-SW LUXOMAT black 200° LC-CLICK-N-200-SW
12 m

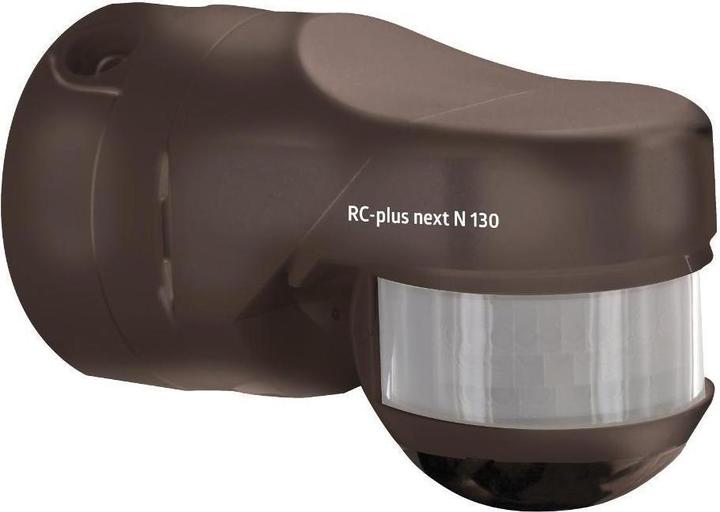

4. BEG Luxomat AP motion detector 93324 RC-plus next N 130' brown old: 97011
Motion detector LUXOMAT RC-plus next N
This motion detector features a UV-resistant polycarbonate housing with a movable spherical head. It allows for simple mounting with a plug-in base, suitable for wall, ceiling, or corner installation. Cable entry is available at the top, bottom, and rear, and immediate commissioning with factory settings is possible. The device can be remote-controlled with an IR remote control or an IR adapter for smartphones.
It offers different run-on times depending on the direction of movement, with a brightness value range of 2-2000 lux and a time setting from 15 seconds to 16 minutes, including pulse mode. The dimensions are 121x71x85 mm, and it operates within a temperature range of -25°C to +50°C. The switching relay is rated for 230V with a switching capacity of 3000W and has an IP54 rating.
The detection range is 130° with sneak-by protection, allowing a maximum detection distance of 20m when walking crosswise to the detection direction.
Technical data
EAN: 4007529933242
Product group: Insulating switchgear/motion detectors
Manufacturer: B.E.G.
Supplier article number: 93324
Colour: Brown.

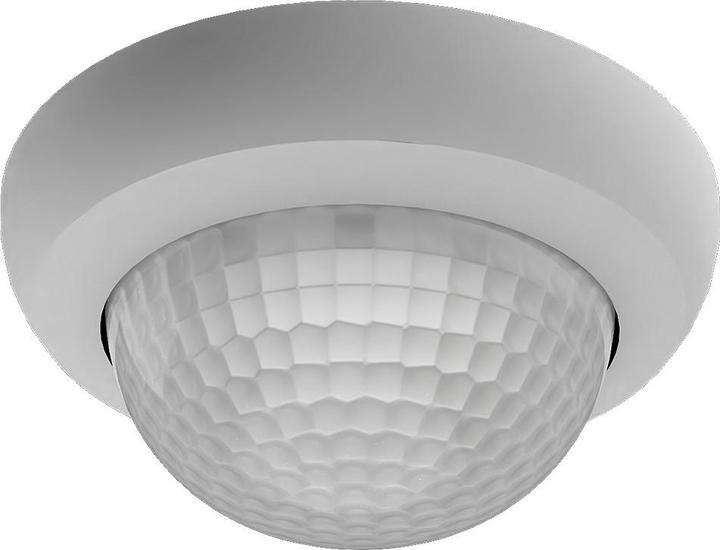

5. BEG B.E.G. 93544
The B.E.G. 93544 presence detector is a highly advanced device designed for reliable motion detection in indoor environments. Equipped with DALI-2 multisensor technology, this presence detector offers precise room occupancy detection and light measurement. The power supply is provided via the DALI bus, allowing for easy integration into existing systems. The powerful localization LED supports quick and secure commissioning, while the individual sensitivity adjustment of the PIR sensor allows for flexible adaptation to various environments. The B.E.G. 93544 is ideal for applications where efficient and precise motion monitoring is required.
- DALI-2 certified product for easy integration into DALI systems
- Mixed light measurement through internal and external light sensors
- Individual sensitivity adjustment of the PIR sensor
- Detection range can be adjusted using cover louvres
- Status LEDs can be activated or deactivated.

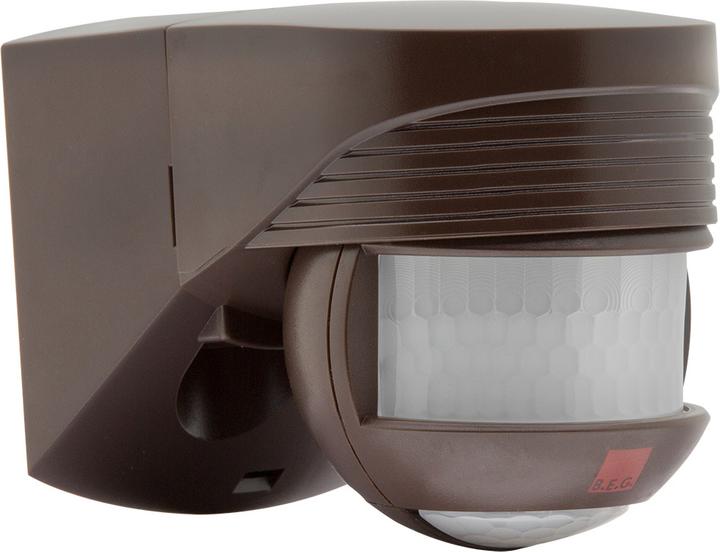

6. BEG 91012 Motion detector LC-200 brown
The BEG 91012 Motion Detector LC-200 is a versatile and reliable device designed for outdoor use. With a detection range of 200 degrees and a reach of up to 12 meters, this motion detector provides comprehensive monitoring. The integrated low-level detection feature of 180 degrees ensures that even lower movements are detected. The movable ball head allows for flexible alignment, enabling the detection area to be customized. Installation is straightforward and uncomplicated, as the motion detector can be mounted on standard flush-mounted boxes, and cable entry is possible from various sides. With an IP54 protection rating, the device is also protected against splashes and dust, making it ideal for outdoor use.
- 200-degree detection angle for comprehensive monitoring
- 180-degree low-level detection for added security
- Movable ball head for individual adjustment of the detection area
- Easy installation with plug socket and flexible cable entry
- IP54 protection rating for outdoor use.
7. BEG Presence detector
BEG Brück Electronic presence detector KNX PD4N-KNXs-BA-UP
Manufacturer: BEG Brück Electronic
Designation: Presence detector KNX flush-mounted, white
Type: PD4N-KNXs-BA-UP
KNX bus system: Yes
Version: Presence detector
Mounting type: Flush-mounted
Material: Plastic
Material quality: Other
Surface protection: Untreated
Surface finish: Matt
Colour: White
RAL number (similar): 9010
With bus coupling: Yes
Extension unit input: Yes
Creep protection/back field monitoring: Yes
Operating mode switch: No
Response brightness adjustable: Yes
Teach function for response brightness: Yes
Optimum mounting height: 2.5 m
Max. range to one side: 12 m
Max. frontal range: 8 m
Detection field diameter on floor: 24 m
Min. switch-on time: 1 s
Max. switch-on time: 1440 min
Switch-on time: 1440 min
Further details: KNX presence detector with integrated KNX BUS coupler, KNX Secure capable, parameterisation from ETS 5 for integration into KNX systems, direction detection, mixed light measurement using internal light sensor, fully automatic operation, 1 x light (for switching), 1 x HVAC block (independent), various blocking functions, status indicators that can be switched off.
8. BEG RC-plus next N 130
The RC-plus next N 130 from BEG is a highly advanced motion detector designed for outdoor use. With a detection range of 130 degrees and a reach of up to 20 meters, it provides reliable motion detection. The motion detector is equipped with an under-creep protection feature that prevents it from being triggered by animals or other objects passing underneath. The mechanical range adjustment allows for precise customization to the specific requirements of the installation site. The movable ball head ensures flexible alignment of the sensor for optimal detection direction. Immediate operation with factory settings simplifies installation, while the option for manual control via a button offers additional flexibility. The RC-plus next N 130 also features easy mounting through a plug socket, making installation on walls, ceilings, or in corners straightforward.
- Continuous parallel circuit detection of multiple detectors
- Different delay times depending on the direction of movement
- Adjustable functions via optional remote control
- Switching at zero crossing for increased safety
- IP54 protection rating for outdoor use.
9. BEG 92622 Indoor sensor insert 180-T complete type RAL9010
The Indoor 180-T with frame is a versatile lighting solution for indoor spaces. With a voltage range of 110 to 240 V AC at 50/60 Hz, it offers flexible application options. Measuring 87 x 87 x 61 mm (with frame), it fits seamlessly into various environments. With a typical power consumption of approximately 1.3 W, it is energy-efficient yet powerful.

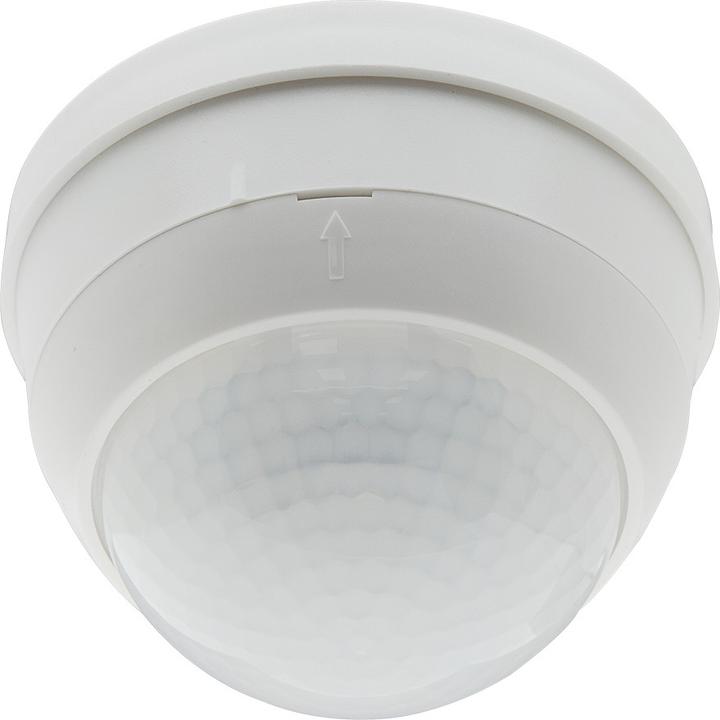

10. BEG Luxomat AP presence detector 360' 92140 PD4-M-2C-AP white
The Luxomat AP presence detector 360' 92140 PD4-M-2C-AP from BEG is a highly advanced presence detector designed for reliable motion detection in indoor environments. With a comprehensive detection range of up to 24 meters and a 360-degree detection angle, this detector provides optimal coverage for various applications. It is ideally suited for surface mounting and can be installed on both walls and ceilings. The detector is equipped with a passive infrared sensor that enables precise motion detection. Additionally, it features a second potential-free contact that can be used to control heating, ventilation, and air conditioning (HVAC) systems. The response brightness and sensitivity are adjustable, allowing for flexible adaptation to different environments. The Luxomat presence detector also includes a forced shut-off and a stair light automation feature, enhancing user convenience.
- Detection range of up to 24 m with a 360-degree detection angle
- Second potential-free contact for HVAC control
- Adjustable response brightness and sensitivity
- Forced shut-off and stair light automation
- Protection class IP54 for use in demanding environments.
