Best selling Motion sensors from Steinel
On this page you’ll find a ranking of the best Motion sensors from Steinel. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Steinel 086190
Steinel IR presence detector PD IR 4360-8
Manufacturer: Steinel
Designation: IR presence detector
Type: PD IR 4360-8
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Without radio
Bidirectional: No
Mounting type: Other
Material: Plastic
Material quality: Other
Colour: White
Transparent: No
With bus coupling: Yes
Extension unit input: No
Operating mode switch: No
Optimum mounting height: 2.8 m
Max. range to one side: 4 m
Max. frontal range: 4 m
Detection field diameter on floor: 4.5 m
Horizontal detection angle: 360°
Number of channels: 2
The Steinel IR presence detector PD IR 4360-8 offers motion detection, presence detection, and light measurement for offices, meeting rooms, passageways, and more. The 360° IR presence detectors comply with sensNORM and are ideal for sensor-based standard requirements in the property sector. It features COM1, KNX, and DALI-2 IPD interfaces, with KNX supporting 2 light outputs including constant light control, logic gate, and other outputs and functions such as day/night switching and sabotage protection.
The range for motion detection is Ø 8 or Ø 24 m, while the presence detector function has a detection range of Ø 6 or Ø 7.5 m. Colour-matching, plug-in cover caps are included. It can be installed flush-mounted, surface-mounted, or on the ceiling. Setting and operation are managed via KNX bus and ETS. The programming mode can be activated remotely using Smart Remote control via an app.
Installation is made easy with a magnetic mounting bracket, and LED feedback ensures safe commissioning. The maximum installation height is 4 m, with the capability for parallel connection of up to 10 sensors. The current consumption is 15 mA at 24V. Available in black or white.
2. Steinel Sensiq S
Steinel, the evolution of perfection. The sensIQ S is as flawless as its larger counterpart. Suitable for both outdoor and indoor use, it is ideal for entrances and loading ramps, with a mounting height of up to 5 meters. It features a 4-fold sensor system for optimal monitoring within a 3x100° detection angle, a range of 20 meters (tangential), and precise range adjustment in 3 independent directions. Remote control and corner wall mount included.
3. Steinel L 810 SC
The Steinel L 810 SC is a high-quality facade light that impresses with its thoughtful design and durable materials. This LED outdoor light combines intelligent design with advanced technology, providing effective lighting both upwards and downwards. The invisible sensor of the light allows for discreet integration into any environment without compromising on top-notch technology. The Bluetooth-based Connect version enables wireless networking and control via an app, making it easy to create groups and name lights. This fixture is ideal for wall mounting and is perfect for illuminating walkways, building facades, garages, patios, and atmospheric garden areas.
Highlights:
- Integrated invisible sensor for discreet integration
- Bluetooth-based Connect version for wireless networking and app control
- Effective LED lighting upwards and downwards.
4. Steinel Motion Detector Surface Mount 300Gr SensIQ S KNX
Steinel motion detector sensIQ S AP ANT KNX
Manufacturer: Steinel
Designation: Motion detector KNX
Type: sensIQ S AP ANT KNX
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system powernet: No
Design: Motion detector
Mounting type: Surface-mounted
Suitable for wall mounting: Yes
Material: Plastic
Material quality: Thermoplastic
Surface protection: Other
Color: Anthracite
RAL number (similar): 7016
Transparent: No
With bus coupling: Yes
Subordinate input: Yes
Creeping protection/return field monitoring: Yes
Animal detection: No
Staircase monitoring: No
Adjustable response brightness: Yes
Teach function for response brightness: Yes
Optimal mounting height: 2 m
Max. range to one side: 20 m
Max. frontal range: 20 m
Detection field diameter on floor: 8 m
Vertical detection angle: 180°
Horizontal detection angle: 300°
Number of channels: 2
Min. switch-on duration: 60 s
Max. switch-on duration: 15 min
Width: 114 mm
Height: 74 mm
Steinel motion detector sensIQ S AP ANT KNX: Additional details
The evolution of perfection. The sensIQ S is as flawless as its larger counterpart. Suitable for both outdoor and indoor use, ideal for entrances and loading ramps, with a mounting height of up to 5 m, a 4-fold sensor system for optimal monitoring with a 3x100° detection angle, 20 m range (tangential), and precise range adjustment in 3 independent directions. Remote control and corner wall mount included.
Motion sensors
−5%
EUR141,07 was EUR148,56
Steinel Motion Detector Surface Mount 300Gr SensIQ S KNX
20 m
5. Steinel Infrared sensor SensIQ S EVO
Steinel, the evolution of perfection. The sensIQ S is just as perfect as its larger counterpart. Suitable for both outdoor and indoor use, it is ideal for home entrances and loading ramps, with a mounting height of up to 5 meters. It features a 4-fold sensor system for optimal monitoring within a 3x100° detection angle, a range of 20 meters (tangential), and precise range adjustment in 3 independent directions. Remote control and corner wall mount are included.
6. Steinel Infrared sensor IS 345 MX KNX
The specialist for high-bay warehouses and the highest monitoring quality. High-bay warehouses often have narrow aisles and very high ceilings, which are too high for most sensors. We have the perfect solution: The infrared motion detector IS 345 MX Highbay has been specifically designed for mounting heights of up to 14 meters and for precise detection between narrow shelving aisles. Up there, it literally ensures monitoring quality at the highest level. In the future, you can confidently think in larger scales when it comes to sensors! Now also available in flush-mounted version.
7. Steinel Presence detector Dual HF KNX
The Dual HF KNX presence detector from Steinel is a state-of-the-art solution for automatic lighting control in indoor spaces. With its DUAL-HF technology, it offers a dual directional characteristic that allows for precise detection of movements within a radius of up to 20 meters. This presence detector is particularly suitable for hallways and long corridors and can be installed at a mounting height of up to 3.5 meters. The temperature-independent detection ensures that the sensor operates reliably under varying conditions. Additionally, the HF sensor technology penetrates materials such as glass, wood, and lightweight walls, increasing installation flexibility. The Dual HF KNX is equipped with a digital BUS interface that allows for the control of up to four lighting channels as well as heating, ventilation, and air conditioning (HVAC) systems. These features make it an ideal choice for modern smart home applications.
- DUAL-HF technology with dual directional characteristic for precise motion detection
- Temperature-independent detection for reliable operation under various conditions
- HF sensor technology penetrates materials like glass and wood
- Digital BUS interface for controlling up to 4 lighting channels and HVAC
- Suitable for mounting heights up to 3.5 m, ideal for hallways and long corridors.
8. Steinel Infrared sensor IS 3360 MX KNX
Dizzy-free. High range. Reliable. In industrial halls and commercial properties, things often get busy. It's good that the IS 3360 MX Highbay makes even high ceilings no problem. The high-range motion detector has an extra-large detection area and remains highly attentive even when mounted at heights of up to 14 meters. Extremely reliable, this IS 3360 MX Highbay.
9. Steinel 064846
Steinel IR Presence Detector IR QuattroHD
Manufacturer: Steinel
Designation: IR Presence Detector Flush-mounted
Type: IR QuattroHD
Bus System KNX: Yes
Bus System KNX Wireless: No
Bus System Wireless Bus: No
Bus System LON: No
Bus System Powernet: No
Other Bus Systems: Without Wireless
Bidirectional: Yes
Mounting Type: Flush-mounted
Material: Plastic
Material Quality: Thermoplastic
Surface Protection: Other
Color: White
RAL Number (similar): 9003
Transparent: No
With Bus Coupling: Yes
Extension Input: Yes
Leakage Current Protection/Backfield Monitoring: Yes
Operating Mode Switch: Yes
Staircase Monitoring: No
Teaching Function for Reaction Brightness: Yes
Self-learning Switch-off Delay: No
Optimal Mounting Height: 2.8 m
Max. Range to One Side: 12 m
Max. Range to the Other Side: 12 m
Detection Field Diameter on the Floor: 9 m
Vertical Detection Angle: 160°
Horizontal Detection Angle: 360°
Number of Channels: 4
Min. Switch-on Duration: 10 s
Max. Switch-on Duration: 1092 min
Designed for the finest detection in the largest detection area among our infrared presence detectors. Ideal for large office spaces or classrooms. The IR Quattro HD-2 offers 360° detection and 5,200 switching zones. Wireless configuration and networking via Bluetooth. Pyrosensors can be individually controlled. Suitable for flush mounting as well as for surface-mounted and recessed variants. Measured parameters include presence function, brightness, temperature, and humidity. Maximum mounting height is 10 m. Range: 81 m² (radial), 576 m² (tangential).

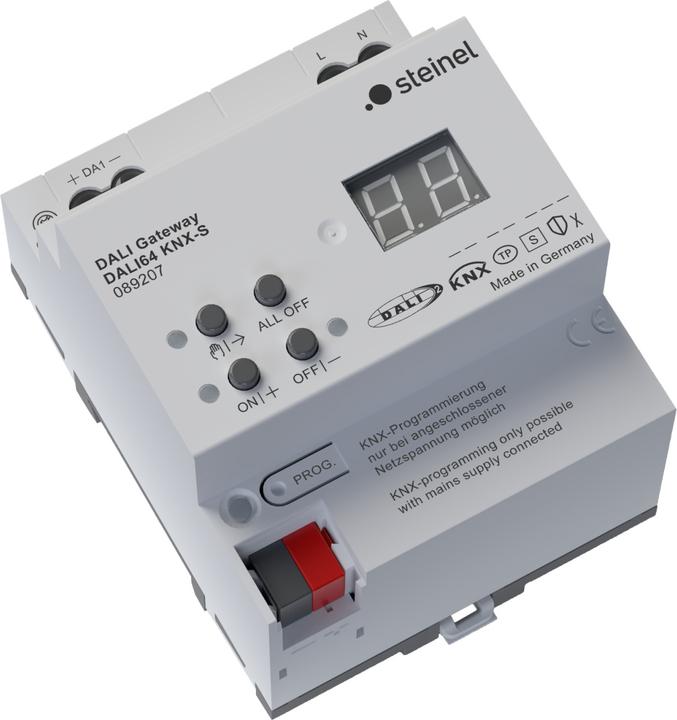

10. Steinel KNX-S system component
The KNX-S system component from Steinel is a state-of-the-art solution for controlling lights and other applications in KNX installations. It enables the integration of DALI devices and offers a variety of features that ensure flexible and efficient light control. With the ability to control up to 64 DALI participants in a maximum of 32 groups, this device is ideal for complex lighting systems. The DALI-2 certification guarantees high compatibility and reliability. Additionally, the KNX-S system component allows for the adjustment of color temperatures and light colors, enabling personalized lighting tailored to different needs and moods. Installation is straightforward on a DIN EN 60715 rail, making it easy to set up in distribution boards. With features like the HCL mode for human-centered lighting and the option for manual operation, this product provides a user-friendly and versatile solution for modern light control.
- DALI-2 certified for high compatibility
- Control of up to 64 DALI participants
- Adjustment of color temperature and light color
- HCL mode for automatic daylight progression
- Easy installation on DIN EN 60715 rail.
