1. Jumo SENSOR PT100 L= 50
The Jumo temperature sensor of type Pt100 is a high-precision measuring instrument designed for temperature measurement over a wide range of -50 to 400 °C. With a probe length of 50 mm and a width of 6 mm, this sensor is ideal for various applications in industry and laboratories. The probe is made of aluminum die-cast, which gives it high robustness and durability. The temperature sensor is calibrated according to factory standards and comes with a corresponding certificate, ensuring the accuracy and reliability of the measurements. This sensor is an excellent choice for anyone needing precise temperature measurements.
- Measurement range from -50 to 400 °C
- Calibration according to factory standards with certificate
- Robust construction made of aluminum die-cast
- Suitable for industrial and laboratory applications.
2. Jumo Temperature sensor Plug-in resistance thermometer with connection cable
Application areas include climate and refrigeration technology, heating, stove and apparatus construction, as well as laboratory technology. The transition of the connection cable is strain-relieved. In measuring applications, a PT 100 temperature sensor according to DIN EN 60 751 is included as standard.

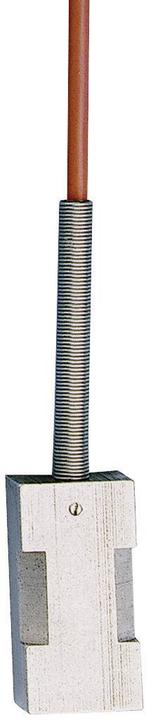

3. Jumo Temperature sensor contact resistance thermometer
The indirect temperature measurement prevents disturbances of the medium in terms of flow. On the other hand, pressure and chemical influences also have no effect on the lifespan of the resistance thermometer. The measurement object is hardly affected due to the low thermal mass. A Pt 100 temperature sensor according to DIN EN 60 751, Class B, is standardly used in a two-wire connection for the measurement application.
4. Jumo Resistance thermometer channel
Various device versions made of plastic with different protection classes are available for the respective measurement task. In the measuring application, a Pt100 temperature sensor according to DIN EN 60751, Class B, is standardly used in a two-wire configuration. Versions with Pt500, Pt1000, Ni1000, as well as various NTCs are also possible. From the terminal connections, further extensions in three- and four-wire technology are feasible. An option to integrate a measuring transducer is also available.
5. Jumo Pt100 probe with DIN connector,50mm
Sensor type: Pt100
Sensor length: 50mm
Sensor diameter: 8mm
Temperature detected min: -50°C
Temperature detected max: +270°C
Connection type: Screw
Probe material: Stainless steel
Number of cables: 2
Accuracy: Class B
PT100 probes with DIN connector. This series of Pt100 probes allows temperature measurements under pressure in engines, compressors, plant engineering, and shipbuilding. They can be easily connected with standard DIN connectors. Temperature range from -50°C to +300°C. Probe length from 50 to 250mm. Temperature measurement with pressure up to 25 bar. PT100, 2-wire, class B. Process connection: G1/2. Protection class IP65. Stainless steel.
6. Jumo Temperature sensor resistance thermometer PT 100 with connection head
The Jumo temperature sensor of type PT 100 is a highly precise resistance thermometer designed for a wide range of temperature measurement applications. With a measurement range of -50 to 400 °C, this sensor is ideal for industrial processes, laboratory applications, and other environments where accurate temperature measurements are required. The sensor is made of high-quality stainless steel, making it robust and durable. The probe length of 250 mm and probe width of 6 mm allow for easy integration into various systems. The connection head ensures a secure connection and ease of handling. The sensor is calibrated to factory standards and comes with a corresponding certificate, ensuring the reliability and accuracy of the measurements.
- Measurement range of -50 to 400 °C for versatile applications
- Made of robust stainless steel for durability
- Factory-standard calibration with certificate
- Easy integration due to compact probe dimensions.
7. Jumo Temperature sensor contact resistance thermometer with connection cable
The version with a hole allows for screw mounting on any surface, such as on heating plates.
8. Jumo SENSOR PT100 L= 150
Sensor type = Pt100
Sensor length = 150mm
Sensor diameter = 6mm
Temperature detected min. = -50°C
Temperature detected max. = +400°C
connection type = screw
Probe material = stainless steel
Process connection = BSP 1/2
Size of cable inlet = M20
Number of cables = 2
Accuracy = Class B
Response time = 14 s
Resistance thermometer Pt100 with connection head. Screw-in resistance thermometer with lead-sealable connection head Form J Various installation lengths available Two versions available - 400°C type: with continuous protection tube - 200°C type: with stepped protection tube for air measurement Process connection G1/2 Protection tube: Stainless steel 1. 4571, Ø 7 or 6mm.
