Best Voltcraft products in the Multimeter category
On this page you'll find a ranking of the best Voltcraft products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Voltcraft VC171 Digital Multimeter
The Voltcraft Hand Multimeter VC 171 is your multimeter for electrical and electronic measurement tasks in the compact VC 100 series.
Delta Measurement: For measuring deviations from a specified value. This allows you to focus on positive and negative changes without having to constantly calculate.
Duty Cycle: Also known as the duty ratio, it allows you to determine the percentage value between ON (pulse) and OFF in phase control systems, switch-mode power supplies, and other digitally switched devices.
Sharp Display: An impressive, easily readable EBTN display in bright environments as well as in darkness. With a display diagonal of 5.6 cm (2.2 inches), all digits and symbols are presented significantly larger, reducing reading errors.
Display and Button Protection: Discreetly integrated edges protect the display, rotary switch, and all buttons. A meticulously produced 2-component housing with integrated soft rubber protection not only provides a good grip but also protects the measuring device during tougher applications.
Tip-Resistant: The wide soft rubber base provides significantly more stability when the stand is extended.
Non-Slip: Whether lying down or standing with connected measuring leads, the device stays in position. When stored without measuring leads, the rubberized edge protection prevents slipping even when the device is lying on the display side.
Flashlight Function: The built-in LED light makes it easier to find your way in the dark to the fuse box.
Non-Contact Voltage Detection: An NCV sensor is integrated into the front of the housing. It detects the electromagnetic field generated by a live wire. This helps locate the position that leads to a break in a pinched extension cord, for example.
2. Voltcraft DOV1254F LA Digital-Oszilloskop 125 MHz 4-Kanal 1.25 GSa/s 100 Mpts 1
High-quality, innovative, and compact. The DOV oscilloscope series from Voltcraft impresses with a whole range of technical highlights and maximum user comfort: An analog-to-digital converter with 12-bit resolution is part of the standard equipment, along with USB, LAN, and HDMI interfaces. At the center is a 7-inch touch display with a resolution of 1024 x 600 pixels. It responds not only to touches but also to gestures, making cumbersome menu navigation largely unnecessary.
Outstanding technical specifications. All digital DOV oscilloscopes from Voltcraft operate with a maximum sampling rate of 1.25 GSa/s. The real-time capture rate is 50,000 wfms/s, and the segmented capture rate is 700,000 wfms/s, allowing for quick and accurate capture of irregular signals. The horizontal sampling speed ranges from 1 ns/div to 1000 s/div (1-2-5 step).
Numerous trigger functions. One of the strengths of the DOV series from Voltcraft lies in its extensive trigger functions. Even difficult-to-trigger signals can be captured thanks to trigger types such as edge, video, pulse, slope, runt, window, timeout, Nth, logic, RS232/UART, I2C, SPI, CAN, and LIN triggers.
Specifications of the Voltcraft DOV1254F LA. The DOV1254F LA features a bandwidth of 125 MHz and four analog inputs. The signal recording length is 100 M, and for clear display and evaluation, real-time signal waveform display on the PC is possible. The four inputs CH1 to CH4 and the 16-channel logic analyzer serve as trigger sources. Users can choose between capture modes: Sample, Peak, High Resolution, Average, and Segmentation. The vertical sensitivity is adjustable from 200 µV/div to 10 V/div.
Integrated arbitrary function generator. For specific troubleshooting, an arbitrary waveform generator (AWG) with a sampling rate of 160 MSa/s, a vertical resolution of 14 bits, and a maximum frequency of 30 MHz is integrated.
Multimeter
EUR972,40
Voltcraft DOV1254F LA Digital-Oszilloskop 125 MHz 4-Kanal 1.25 GSa/s 100 Mpts 1
CAT II

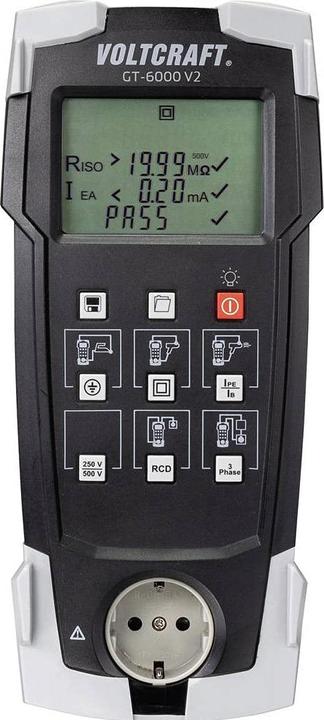

3. Voltcraft Device tester GT-6000 V2
Battery operated portable tester
RCD circuit breaker test
Automated testing for class I and II / III devices
Test of 3-phase electrical devices
Tripping time measurement of fixed RCDs and portable RCDs (PRCDs).
4. Voltcraft Table multimeter
The Voltcraft VC-7200BT is a digital dual-channel multimeter in tabletop format with 5 1/2 digits, offering a wide range of functions for measurement results (statistics, limit values, dB/dBm, REL). The VC-7200BT features a 10.16 cm (4 inch) display. It records up to 150 measurement values per second. This device is ideal for anyone seeking high performance, numerous functions, and automatic measurements.
Precise RMS Measurements
The true RMS measurement function allows for accurate measurement of asymmetrical voltages and currents that deviate from the basic sine waveform. Asymmetrical voltages typically occur in power controllers, switched-mode power supplies, pulse chargers, and electronic speed controllers in model building.
Factory Calibration
Calibration according to manufacturer standards and Voltcraft quality assurance. The calibration ensures high product quality and compliance with tolerance limits.

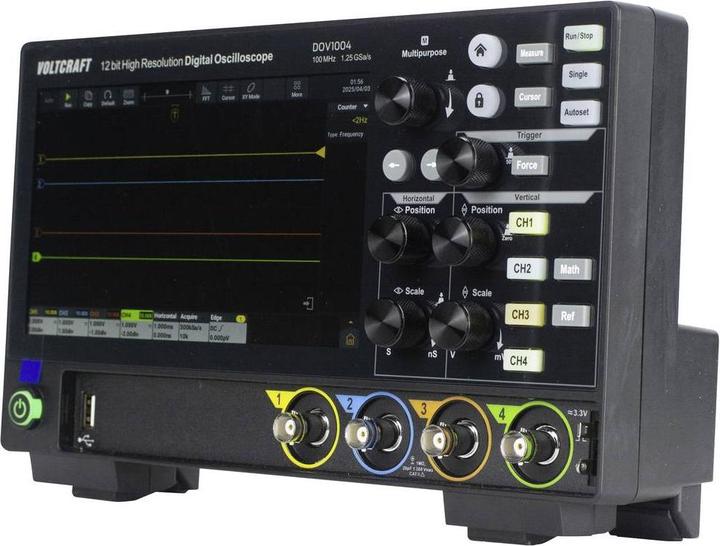

5. Voltcraft DOV1004 Digital-Oszilloskop 100 MHz 4-Kanal 1.25 GSa/s 50 Mpts 12 Bit
High-quality, innovative, and compact. The DOV oscilloscope series from Voltcraft impresses with a host of technical highlights and maximum user comfort: a 12-bit resolution analog-to-digital converter is part of the standard equipment, along with USB, LAN, and HDMI interfaces. At the center is a 7-inch touchscreen with a resolution of 1024 x 600 pixels. It responds not only to touches but also to gestures, making cumbersome menu navigation largely unnecessary.
Outstanding technical specifications. All digital DOV oscilloscopes from Voltcraft operate with a maximum sampling rate of 1.25 GSa/s. The real-time capture is at 50,000 wfms/s, and the segmented capture is at 700,000 wfms/s, allowing for quick and accurate capture of irregular signals. The horizontal sampling speed ranges from 1 ns/div to 1000 s/div (1-2-5 steps).
Numerous trigger functions. One of the strengths of the DOV series from Voltcraft lies in its extensive trigger functions. Even difficult-to-trigger signals can be captured thanks to trigger types such as edge, video, pulse, slope, runt, window, timeout, Nth, logic, RS232/UART, I2C, SPI, CAN, and LIN triggers.
Specifications of the Voltcraft DOV1004. The DOV1004 features a bandwidth of 100 MHz and four analog inputs. The signal recording length is 50 M, and for clear display and analysis, real-time signal waveform display on the PC is possible. The four inputs CH1 to CH4 serve as trigger sources, and users can choose between sampling modes: sample, peak, high resolution, average, and segmentation. The vertical sensitivity is adjustable from 500 µV/div to 10 V/div.
Delivery package with accessories. The Voltcraft DOV1004 comes with a USB Type-C power supply, USB cable, four test probes, and two probe adjustment sets. Additionally, the package includes software with an English manual on CD, a quick start guide, and the safety data sheet.
Multimeter
EUR612,56
Voltcraft DOV1004 Digital-Oszilloskop 100 MHz 4-Kanal 1.25 GSa/s 50 Mpts 12 Bit
CAT II
6. Voltcraft USB oscilloscope head with arbitrary DDS function generator
In conjunction with a Windows-compatible computer with a USB interface, you will receive a fully equipped memory oscilloscope with the additional advantage that measurement data can be stored and processed further. The device features four independent channels, allowing signals to be captured at frequencies up to 70 MHz. The screen interface is designed to resemble that of a conventional oscilloscope. The Auto-Set function automatically adjusts the settings to the respective measurement signal, and the extensive trigger functions make operation easier. The FFT analysis function enables spectral analyses. Additionally, the integrated arbitrary DDS function generator allows for the generation of standard signals or freely definable signals up to a maximum of 25 MHz. Frequency generation is entirely digital, ensuring high accuracy and stability of the frequency. Special features: Digital Storage Oscilloscope (DSO), spectrum analyzer, function generator.
7. Voltcraft VC-55 LCD Two-pole voltage tester calibrated (ISO) CAT III 1000 V
The two-pole voltage tester is manufactured and tested according to EN 61243-3/VDE0682. The voltage indication is provided through bright LEDs, which are divided into ranges of 12 - 690 V, and additionally as a true RMS value on the LCD display. Reliable measurement results with ISO calibration. ISO calibration is required when the measuring device is used for measurement tasks in an ISO9001 certified environment. An ISO certification is also helpful and often a prerequisite for experts, acceptance points, or testing laboratories.
Multimeter
EUR139,–
Voltcraft VC-55 LCD Two-pole voltage tester calibrated (ISO) CAT III 1000 V
CAT IV 600V, CAT III 1000V
8. Voltcraft Digital Oscilloscope DIGITAL OSCILLOSCOPE DSO 6204F
Settings can be adjusted as usual using the control knobs or directly on the screen. Moving and zooming is as intuitive as on a smartphone or tablet.
Color temperature view: With changing frequencies, recurring waveforms are displayed in rainbow colors according to their frequency.
Bus decoding: SPI, I²C, RS232, and CAN bus signals can be decoded. Decoded values can be displayed in binary, decimal, hex, or ASCII and can be recorded in event tables. Values from decoded CAN bus signals are color-coded, making it easier to distinguish between Data, Data Length Code, and Frame information. CAN bus checksums also change color in case of errors.
Documenting and processing data: All measurement results and screen contents can be transferred to a PC via USB or network for documentation purposes. When saving to USB drives, the filename can be conveniently entered on the touch display.
Function generator with touch operation: The 25 MHz function generator can be operated via the touch panel or traditionally using buttons. Sine, square, ramp, and pulse waveforms can be called up. An additional 46 arbitrary waveforms, including exponential, sine functions, steps, and noise, are predefined. Custom arbitrary shapes can be saved.
Clone function: Waveforms at the oscilloscope input can be cloned to the function generator. The selection of the section to be cloned is conveniently made via the touchscreen.
Prepared for battery operation: With the optionally available Li-Ion battery, the range of applications is significantly expanded. The oscilloscope with the optional battery is also intuitively operable on the go and allows for 3 hours of continuous use without additional power supply. Battery operation is also helpful in the lab for isolating from mains potential.
9. Voltcraft DSO-2202H + AFG Handheld Oscilloscope 200MHz 2-channel 1 GSa/s 8 kpts 8 Bit Handheld 1pce.
The Voltcraft DSO-2202H + AFG Digital Oscilloscope 3 in 1 impresses with a bandwidth of 200 MHz, 2 channels, and an 8.89 cm LCD color display. The maximum sampling rate is 1 GS/s, and the recording capacity is 8 K. The Voltcraft Digital Oscilloscope operates with 8-bit vertical resolution. The USB port also serves for data storage.
Multimeter
EUR399,35
Voltcraft DSO-2202H + AFG Handheld Oscilloscope 200MHz 2-channel 1 GSa/s 8 kpts 8 Bit Handheld 1pce.
CAT II 400V

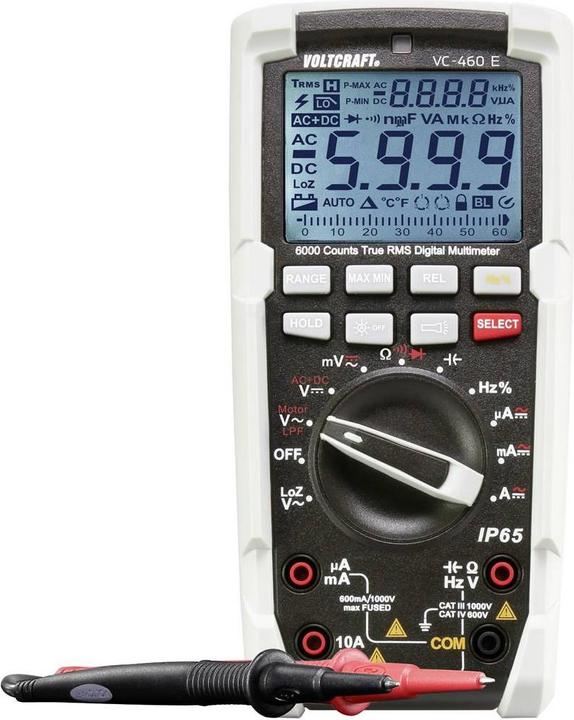

10. Voltcraft Hand multimeter digital calibr
Extremely robust multimeter. The Voltcraft VC-400 series is ideally suited for electricians, installers, and service technicians working in harsh environments. A range of features makes this device the top choice for daily use.
Tough and durable: A two-component housing with a surrounding soft rubber protection shields the measuring device from all sides, as well as the display from damage when dropped on hard surfaces. It can withstand falls from heights of up to 2 meters. Its rubberized casing also ensures a secure grip.
Water and moisture protection (IP65): The multimeter is designed so that rain, snow, or even a water jet will not cause any malfunction. It can be used and stored in locations with high humidity, such as operational areas, machine rooms, and not entirely dry garages, without any issues.
Dust and dirt proof: The housing, sockets, and all controls are designed to be completely dust-tight. Even after many years, the multimeter remains as functional as on the first day.
Non-slip when lying down and opened: The Voltcraft VC-400 series maintains a non-slip contact with the surface due to its rubberized back. When opened, the device remains securely in place thanks to the integrated rubber surface in the stand.
Accurate measurements through True RMS measurement: The True RMS measurement allows for precise measurement of asymmetrical voltages and currents that deviate from the basic sine wave shape. Asymmetrical voltages are often found in power controllers such as dimmers, speed controllers, switched-mode power supplies, pulsed chargers, or electronic speed controllers in model building. Conventional average-value measuring devices can show significant measurement deviations in these tasks.
Automatic display lighting: An integrated brightness sensor automatically activates the display lighting at dusk. Special attention has been paid to the contrast of the display.
