Best Dönges products in the Personal security category
On this page you'll find a ranking of the best Dönges products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

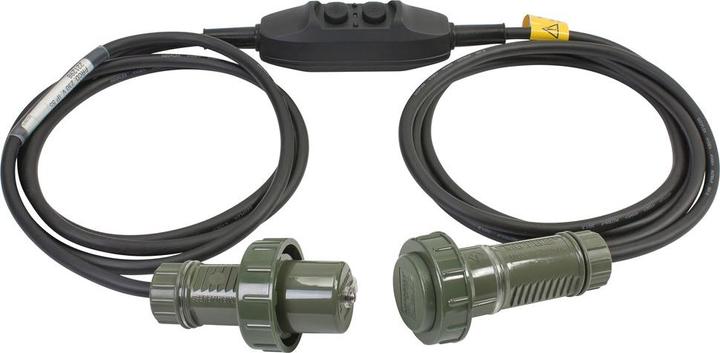

1. Dönges Personal protection cable PRCD-S, 4.5 m
The PRCD-S personal protection cable from Dönges is a high-quality safety solution specifically designed for use in extreme environmental conditions. With a total length of 4.5 meters, this cable offers flexible handling and is ideal for various work environments. The PRCD-S personal protection switch is made of robust solid rubber, making it particularly resistant to mechanical influences. The VDE and GS certification ensures that the product meets the highest safety standards. The cable is equipped with a Schuko plug and a coupling, both made of solid rubber, to ensure optimal protection class. These features make the PRCD-S a reliable choice for anyone working in high-risk areas.
- Solid rubber construction for high durability
- VDE and GS certified for maximum safety
- Protection class IP55 (PRCD-S) and IP44 (Schuko plug)
- Suitable for use in extreme environmental conditions
- Rated differential current of 30 mA for additional protection.
2. Dönges Personal protection cable THW version, PRCD-S+, 4.5 m
The PRCD-S is a portable residual current device that switches all poles and is designed as an intermediate device with electronic fault current evaluation (PRCD = Portable Residual Current Device, S = safety). It is particularly suitable as a protective distributor for all portable electrical devices.
The PRCD-S detects foreign voltage on the protective conductor but does not interrupt the protective conductor connection. This allows the foreign voltage to be released through its own upstream protective devices, such as RCDs and circuit breakers.
It is equipped with a highly flexible special rubber cable H07RN-F3G2.5 according to DIN VDE 0282.
Features:
- Residual current device
- Under-voltage release
- Protective conductor detection
- Protective conductor monitoring
- Foreign voltage detection
- Protection against foreign voltage on the protective conductor
Selection criteria:
Version: PRCD-S+
Length: 4.5 m
Technical data:
Input: 1 x Schuko plug IP68
Output: 1 x Schuko socket IP68
Voltage: 230 V
Load capacity: 16 A
Rated residual current: 30 mA
Cable: H07RN-F3G2.5
Protection class: IP55
Weight: 1.5 kg
Article number: JD270897.
3. Dönges Personal protection cable THW version, PRCD-S+, 2 m
The PRCD-S is a portable residual current device that switches all poles and is designed for use as an intermediate device with electronic fault current evaluation (PRCD = Portable Residual Current Device, S = safety). It is particularly suitable as a protective distributor for all portable electrical devices.
The PRCD-S detects foreign voltage on the protective conductor but does not interrupt the protective conductor connection. This allows the foreign voltage to be released through its own upstream protective devices, such as RCDs and circuit breakers.
Equipped with a highly flexible special rubber cable H07RN-F3G2.5 according to DIN VDE 0282.
Features:
- Residual current protective device
- Under-voltage release
- Protective conductor detection
- Protective conductor monitoring
- Foreign voltage detection
- Protection against foreign voltage on the protective conductor
Selection criteria:
Version: PRCD-S+
Length: 2 m
THW item number: 5925T23933
Technical data:
Input: 1 x Schuko plug IP68
Output: 1 x Schuko socket IP68
Voltage: 230 V
Load capacity: 16 A
Rated residual current: 30 mA
Cable: H07RN-F3G2.5
Protection class: IP55
Weight: 920 g
Article number: JD5925T23933
Shop number: 270896.
4. Dönges Personal protection cable PRCD-S, 3-way distributor, 3 m
The PRCD-S personal protection cable from Dönges is a high-quality safety solution specifically designed for use in extreme environmental conditions. This cable provides effective protection against electrical fault currents and is ideal for use on construction sites or in other demanding work environments. The PRCD-S features a fully rubber-coated Schuko plug and a robust 3-way coupling, also made of solid rubber. This construction ensures high resilience and durability. The cable has a total length of 3 meters and is divided into two sections, each 1.5 meters long. The PRCD-S is VDE and GS certified, highlighting its safety and reliability. Additionally, a practical plastic case is included for secure storage and easy transport.
- Fully rubber Schuko plug for increased robustness
- 3-way coupling with protective covers
- VDE and GS certified for added safety
- Protection class IP55 for the PRCD-S, IP44 for the Schuko plug
- Suitable for use in extreme environmental conditions.
5. Dönges Personal protection cable PRCD-S+ DIN 14660, IP55
Very often, portable electrical equipment must be used in firefighting operations. This includes any equipment powered by electricity, except for battery-operated devices. Primarily, generators are used for power supply during operations. In exceptional cases or due to specific operational situations, another power source, such as a household network, may also be utilized. In this case, the connection must be made via a personal protection switch. The DIN 14660:2020-06 standard defines the requirements that a personal protection device must meet to be used in firefighting operations. Our new personal protection cable with built-in PRCD-S+ fully complies with the specifications of DIN 14660. It thus provides the necessary safety in handling electrical equipment in all situations.
Features:
- Residual current protection device
- Under-voltage release
- Protective conductor detection
- Protective conductor monitoring
- Foreign voltage detection
- Protection against foreign voltage on the protective conductor
Selection criteria:
Protection class: IP55
Length: 3 m
Technical data:
Input: 1 x Schuko plug IP44
Output: 1 x Schuko socket IP68
Voltage: 230 V
Load capacity: 16 A
Rated residual current: 30 mA
Cable: H07RN-F3G2.5
Standard: DIN 14660:2020-06
Weight: 920 g
Article number: JD14660-B.
6. Dönges Personal protection cable, PRCD, 2 m, IP54
For operation on the power generator, 2-pole without protective conductor recognition. Equipped with black rubber cable H07RN-F3G1.5.
Selection criteria:
Version: PRCD
Length: 2 m
Protection class PRCD: IP54
Technical data:
Input: 1 x plug Schuko IP68
Output: 1 x coupling Schuko IP68
Voltage: 230 V
Rated differential current: 30 mA
Load capacity: 16 A
Cable: H07RN-F3G1.5
Protection class: IP55
Weight: 780 g
Attention: Fig. similar
Item number: JDPSS230-K1.5.
7. Dönges Personal protection cable, IP54, PRCD, 5 m
For operation on the power generator, 2-pole without protective conductor recognition. Equipped with black rubber cable H07RN-F3G1.5.
Selection criteria:
- IP54
- Version: PRCD
- Length: 5 m
- Protection class PRCD: IP54
Technical data:
- Input: 1 x plug Schuko IP68
- Output: 1 x coupling Schuko IP68
- Voltage: 230 V
- Rated differential current: 30 mA
- Load capacity: 16 A
- Cable: H07RN-F3G1.5
- Protection class: IP55
- Weight: 1.4 kg
Item number: JDPSS230-K.
8. Dönges Personal protection cable, PRCD-S, IP68
For operation on the power generator, 2-pole without protective conductor recognition. Equipped with black rubber cable H07RN-F3G1.5.
Selection criteria:
Version: PRCD-S
Length: 4.5 m
Protection class PRCD: IP68
Technical data:
Input: 1 x plug Schuko IP68
Output: 1 x coupling Schuko IP68
Voltage: 230 V
Rated differential current: 30 mA
Load capacity: 16 A
Cable: H07RN-F3G1.5
Protection class: IP55
Weight: 1.8 kg
Item number: JDPSS230-K-DW.
