Best Proxxon products in the Routers + Disc cutters category
On this page you'll find a ranking of the best Proxxon products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Proxxon Handpiece MHX/E
Replacement unit without accessories. DC voltage motor. Quiet and smooth when working, handy. With streamlined design for comfortable. Works in 2 gripping positions: Finger and whole hand. Excellent ball bearing spindle. To change the tips, just lock them with the button. 150 cm coiled cable with reverse polarity plug. Connection via low voltage power supply (12-18V): as power source we recommend control unit SGX. Safe wet operation possible. Diameter 35mm.
2. Proxxon Micro profiling unit MP 400
For profiling, grooving, milling, chamfering, trimming, and cutting out in wood and suitable types of plastic. Driven by a powerful dust-proof motor with toothed belt drive. Cutter height adjustment is made by means of a handwheel with a graduation of 0.05 mm per scale line. Stable table made of aluminum with longitudinal and angular stop, as well as milling guard and downholder. Dust extraction via vacuum cleaner connection.
3. Proxxon MICRO milling machine MF70
The precise vertical milling machine for the finest work. For working with extremely small milling cutters. Stable machine base made of cast iron, vertical guide and cross table. With backlash-free, re-adjustable dovetail guide in all axes. Jib housing made of die-cast aluminium, with 24-pole special motor (balanced). For vibration-free operation at high speeds. Tool holding fixture with Micromot system collets (steel, hardened, triple slotted). Table with 3 continuous T-slots. A sliding ruler facilitates the positioning of the cross slide.

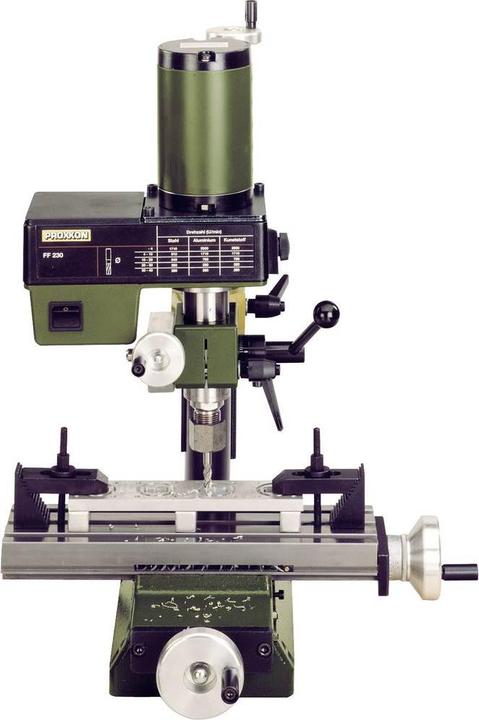

4. Proxxon Ff 230
Quill with drilling depth indicator via scale ring on the drill lever (1 division = 1 mm). Powerful PM motor. The Poly-V belt drive ensures high torque, especially in the lower speed range. Tool holder with collets (includes one each of 6, 8, and 10 mm). Cross table made of steel with 3 T-slots (Micromot standard 12 x 6 x 5 mm). For milling operations, the drill head and column as well as the quill can be clamped using a knurled screw.
5. Proxxon Mf 70
Micro-milling machine MF 70/CNC-ready. It features stepper motors for the X (transverse), Y (longitudinal), and Z (vertical) axes instead of handwheels. This machine is ideal for users who already own a control unit or wish to purchase one from market suppliers. It comes with stepper motors and reference switches, each with a 2.2 m connection cable and one standard connector (SUB-D 9POL) for the X, Y, and Z axes. Please note that it does not include a CNC control unit or CNC software. The technical design is similar to the MICRO-Mill MF 70, but it has a larger slot table and slightly longer X (transverse) and Y (longitudinal) traverse paths. The package includes Micromot collets (steel, hardened, 3-slotted) in sizes 1, 1.5, 2, 2.4, 3, and 3.2 mm. The steel step clamping claws shown are also included.
