Best Helios products in the Ventilation fan category
On this page you'll find a ranking of the best Helios products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

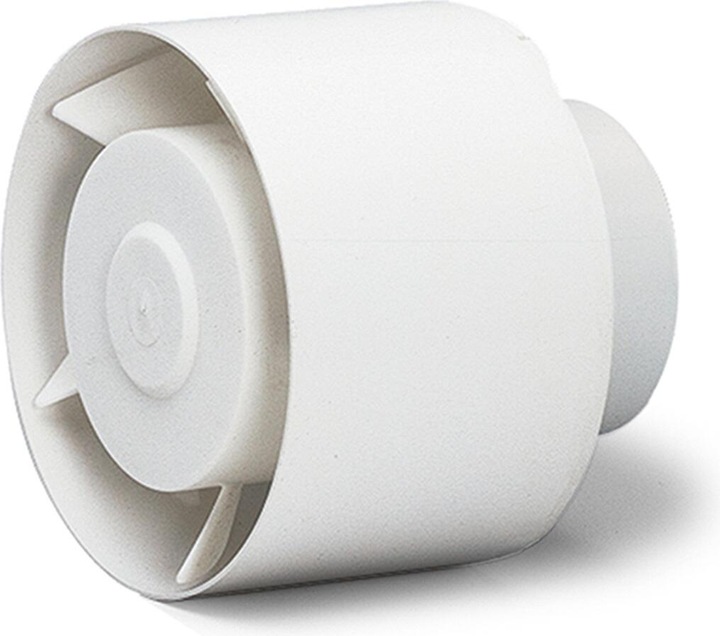

1. Helios Fan insert
The Helios fan unit ELS-VEZ 60 is an efficient solution for ventilation in indoor spaces such as bathrooms, toilets, and kitchens. With an air flow rate of 60 m³/h, this fan ensures effective air circulation and contributes to improving indoor air quality. The fan unit is equipped with a run-on switch that allows for a start delay of about one minute and provides a run-on time of five to six minutes, depending on the duration of operation and temperature. This ensures that air continues to circulate even after the fan is turned off, which is particularly beneficial in humid environments. The unit is designed for mains operation and operates at a voltage of 230 V with a frequency of 50 Hz. With a noise level of 40 dB, the fan unit is also quiet in operation, making it ideal for use in living spaces.
- Run-on switch for improved air circulation
- Start delay of approximately 1 minute
- Run-on time of 5 to 6 minutes
- Energy-efficient with a power consumption of 19 watts.

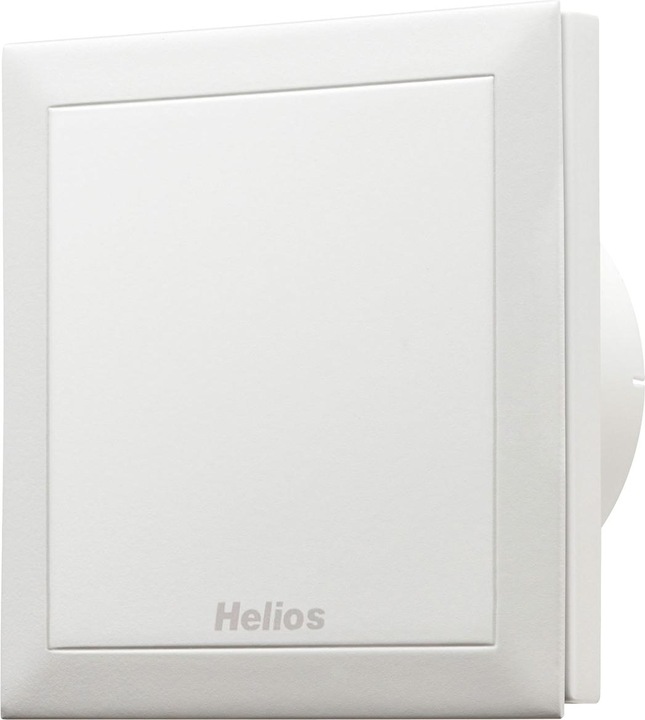

2. Helios DN100 M1/100 F
MiniVent M1 small fan, with 2 power levels (90/75 m³/h) and humidity control. The run-on time can be set to approximately 6, 12, 18, or 24 minutes, and the electronic function can be adjusted to either the high or low power level. With its excellent design, the MiniVent M1 blends harmoniously into any environment, even in stylishly designed spaces. The closed, aesthetically pleasing facade completely prevents visibility into the dirty fan opening. It comes standard with a tightly closing backdraft damper. Thanks to ultraSilence technology, the noise level is at 25 dB(A) at a volume flow of 75 m³/h. Universally applicable for the ventilation of bathrooms, toilets, and other small rooms.

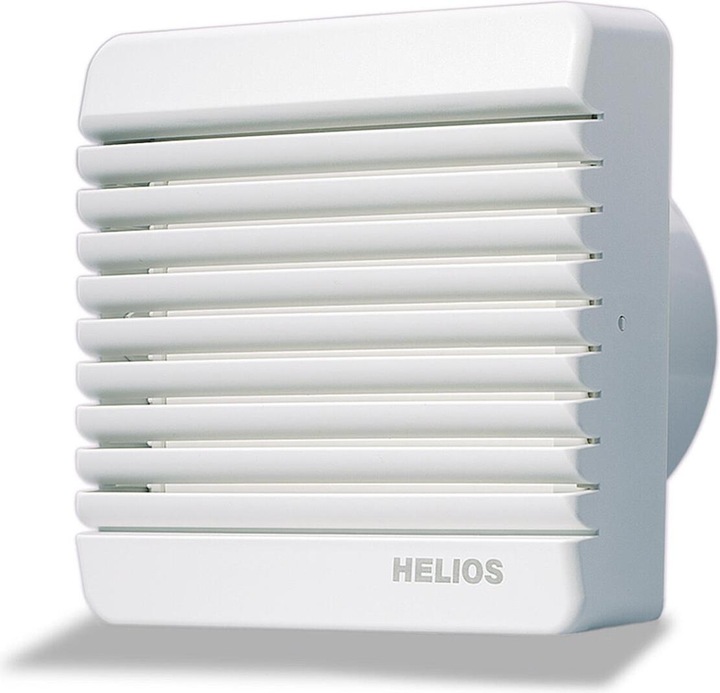

3. Helios Wall fan
Helios HVR 150/2 RE Heliovent fan is a flush-mounted room fan designed for installation in walls, shafts, and windows. It can be used in openings with NW 150 for the ventilation of small to medium-sized rooms. The fan features a plastic housing with a louvred grille to cover the intake opening. It is equipped with a high-performance axial impeller with 8 plastic blades. The single-phase AC capacitor motor has an enclosed design, is maintenance-free, and includes thermal contacts built into the winding. The speed can be controlled by voltage reduction, and it has sealed, low-noise ball bearings with long-term lubrication. The fan is also reversible.
4. Helios HELI ELS-GUBA flush-mounted housing with fire protection shut-off damper
UP housing made of plastic with fire protection shut-off element 90, metal exhaust nozzle with automatic backdraft damper and shut-off in case of melting solder activation. Exhaust nozzle available directed upwards, rotatable to the left or right. Can be converted for rear air outlet in any position using accessory set -ARS, No. 8185. Reusable flap cleaning cover. Otherwise as ELS-GU. Connection DN80 mm. Application area for ventilation of kitchen, bathroom, or toilet. Also suitable for two-room ventilation of bathroom and toilet with accessory set -ZS, No. 8186. UP installation in ceiling or wall, also outside of 90 shafts. Connection to main line using steel pipe. One or two devices per floor up to 20 floors. The backdraft damper in fire protection housings also fundamentally meets the requirements of a cold smoke shut-off damper. For residential kitchens, a fan unit with 100 m³/h is recommended. ELS-GUBA.
Ventilation fan
EUR63,36
Helios HELI ELS-GUBA flush-mounted housing with fire protection shut-off damper

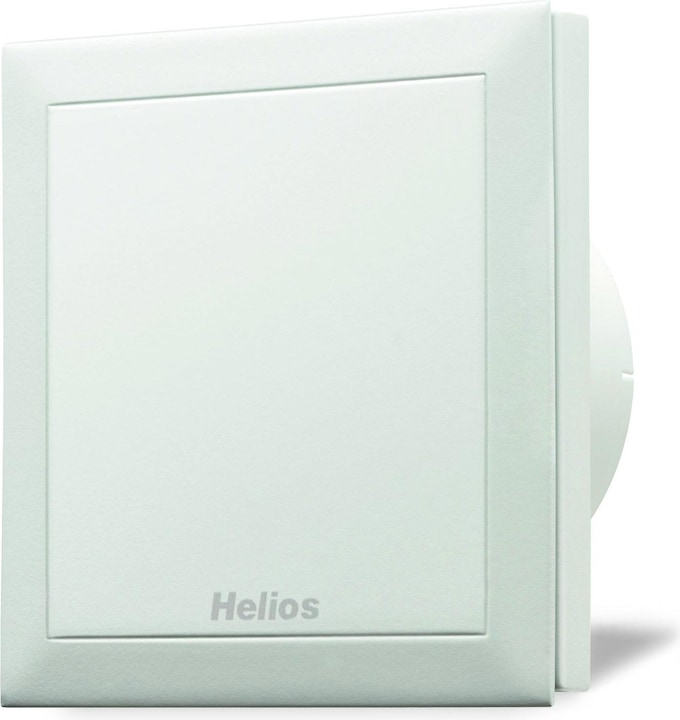

5. Helios M1/100 Toilet fan Minivent DN100 two-stage without overrun
MiniVent M1 small fan, standard model with 2 power levels (90/75 m³/h). With its excellent design, the MiniVent M1 harmoniously integrates into any environment, including sophisticated spaces. The closed, elegantly shaped facade completely prevents visibility into the dirty fan opening. It comes standard with a tightly closing backdraft damper. Thanks to the new ultraSilence technology, the noise level is just 25 dB(A) at a flow rate of 75 m³/h. It is universally applicable for ventilating bathrooms, toilets, and other small rooms.

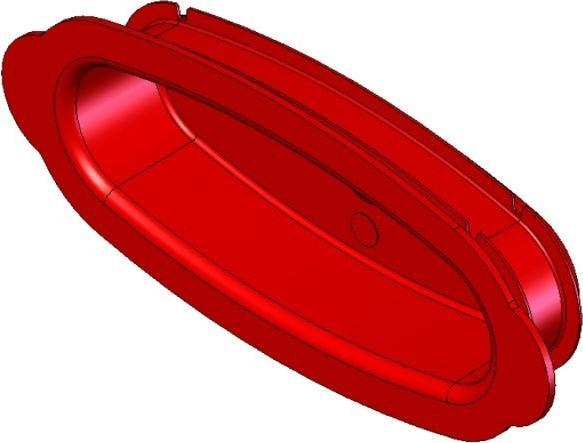

6. Helios Apparatebau FlexPipe sealing cap FRS-VD 51 1 PA = 10 PCE
Helios FRS-VD 51 FlexPipe.

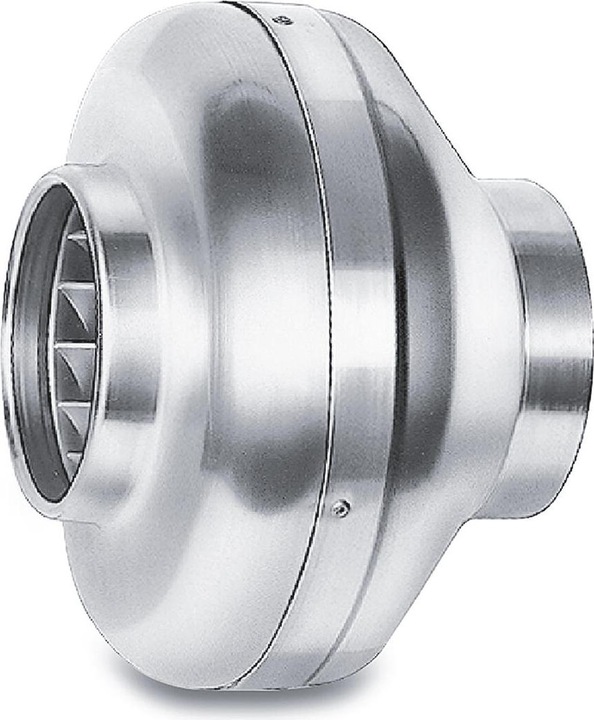

7. Helios Radial tube fan
Helios Ventilatoren radial tube fan RR 315
Manufacturer: Helios Ventilatoren
Designation: Radial tube fan
Type: RR 315
Material of housing: Steel, treated
Air volume unloaded: 1310 m³/h
Supply voltage: 230 V
Power consumption: 0.224 kW
With thermal protection: Yes
DC motor: No
Indirect drive: No
Electrical connection: Terminals
Protection class (IP): IP44
Max. air temperature: 70 °C
Motor with 2 speeds: No
Suitable for electronic control: Yes
Suitable for frequency control: No
Suitable for low current control: No
Suitable for transformer control: Yes
Pole-changing: No
Length: 257 mm
Diameter of housing: 402 mm
Duct diameter: 315 mm
Connection: Flange
Helios Ventilatoren RR 315 centrifugal tube fan is designed for direct mounting in the duct system. It is suitable for conveying medium and small air volumes against high resistance. The housing is made of galvanized sheet steel with round connection pieces adapted to standard pipes. The radial impeller features backward curved blades made of galvanized sheet steel, pressed directly onto the motor and dynamically balanced as a unit. It operates with low noise and high efficiency. The fan includes a single-phase AC external rotor motor with an enclosed design, maintenance-free, built-in thermal contacts, sealed, and low-noise ball bearings with long-term lubrication. Power control can be achieved by means of an electronic controller or step transformer. EAN: 4010184059202.
8. Helios Mini fan
MiniVent M1/100 F black small fan, with 2 power levels (90/75 m³/h) and humidity curve control. Run-on time can be set to approx. 6, 12, 18, 24 minutes, the electronic function can be set to either the high or low power level. With its excellent design, MiniVent M1/100 F black blends in harmoniously anywhere - even in rooms with a sophisticated design. The closed, elegant façade completely prevents the dirty fan opening from being seen and is equipped with a tightly closing return air shut-off damper as standard. Thanks to the new ultraSilence technology, the noise level is 25 dB(A) at 75 m³/h volume flow. Universally applicable for the ventilation of bathrooms, WCs and other small rooms.
9. Helios HELI RR100A Radial Tube Fan 41W 230V 1ph 50Hz D=100mm
The HELI RR100A radial duct fan is a powerful and efficient fan specifically designed for direct installation in duct systems. With a diameter of 100 mm, it is ideal for moving medium and small volumes of air, even against high resistance. The housing is made of galvanized steel sheet, ensuring durability and stability. The fan is equipped with a radial impeller made of backward-curved plastic blades to guarantee quiet operation and high efficiency. The single-phase external rotor motor is maintenance-free and allows for flexible speed control through voltage reduction. Additionally, integrated thermal contacts provide extra safety. The sealed, low-noise ball bearings with long-term lubrication contribute to the longevity of the device and minimize maintenance efforts.
- Direct installation in duct systems for optimal air movement
- High-quality housing made of galvanized steel sheet
- Quiet operation due to special impeller design
- Maintenance-free external rotor motor with integrated thermal contacts
- Speed control possible through voltage reduction.
10. Helios HELI ELS-VNC 60 Fan insert with facade, coded. According to
The HELI ELS-VNC 60 fan unit from Helios is a highly advanced ventilation fan designed for automatic and periodic ventilation of spaces with irregular usage. With an air flow rate of 60 m³/h, this fan provides efficient air circulation, which is particularly beneficial in hotels and holiday apartments. The programmable after-run and interval operation functions allow for individual customization to meet the specific needs of users. The fan is equipped with ultraSilence® technology, ensuring quiet operation, while the maintenance-free, ball-bearing energy-saving motor offers high energy efficiency. The integrated plug connection simplifies electrical installation, and the Class II protective insulation provides additional safety. The fan unit comes with a flat interior facade in alpine white and is suitable for installation in wet rooms.
- Programmable after-run and interval operation for individual customization
- UltraSilence® technology for quiet operation
- Maintenance-free, ball-bearing energy-saving motor
- Integrated plug connection for easy electrical installation
- Permanent filter with filter cleaning indicator for improved hygiene.
