Best selling Door hinge
Here's a ranking of the best products in this category. To give you a quick overview, we've also added some key information about the products.

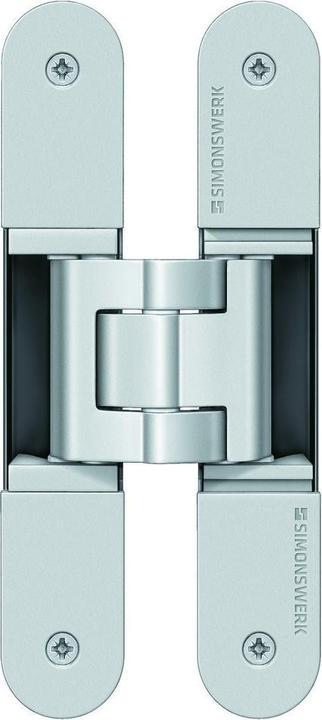

1. Simonswerk Tectus TE 340 3D
Object hinges Tectus TE 340 3D stainless steel look, 160 mm.

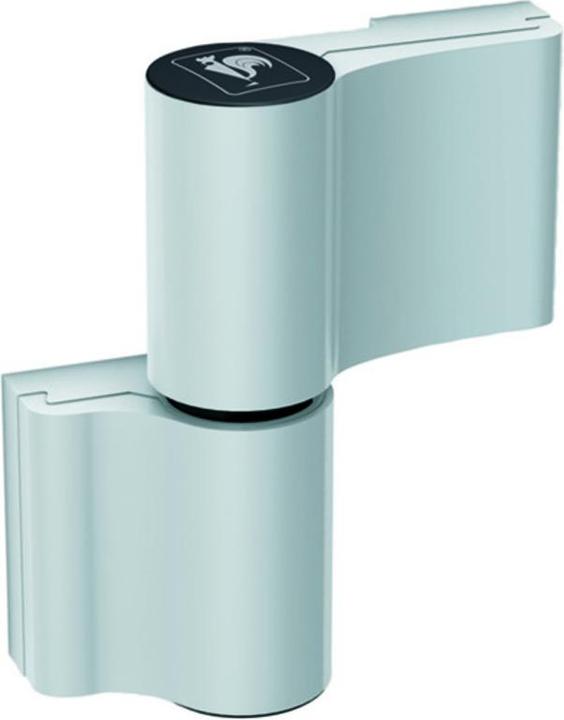

2. Dr. Hahn door hinge
Hahn Door Hinge 4 AT Two- and Three-Part
New with these door hinges is the half-measure zero, where the frame hinge part has been minimized in terms of space requirement. This new variant is particularly useful in situations where there is limited space on the frame side. The fastening is done through the hinge part. Whether using anchor screws, screw anchors, or mounting plates, all available Hahn fastening materials can be used for installation.
Available for all common aluminum profiles. Combination options and fastening variants for inward and outward opening doors - even with change profiles and corner post constructions. Variants for doors with extreme construction widths as well as doors with narrow frame profiles. Load capacity up to 220 kg (three-part) or 180 kg (two-part) - depending on profile construction and application situation. Adjustable in 6 directions. Usable DIN left/right. Opening angle > 180°. CE certified according to EN 1935:2002, hinge class 14.
Technical / Application:
Suitable for aluminum shells up to a height of 23 mm. Horizontal adjustment stepless ± 2.5 mm for faster processing. Height adjustment stepless + 3 / - 2 mm without lifting and lowering the leaf. Seal pressure adjustment ± 0.5 mm on the installed door leaf.
Fastening: Mounting plates 15 mm.
Scope of delivery: including mounting plates.
Type: Series 4 AT, two-part. Material: Aluminum silver anodized. Pivot point (mm): 20. Design: with mounting plates 15 mm. Center distance (mm): 65. Brand: Hahn. Factory number: M90110000. Content (ST): 1.

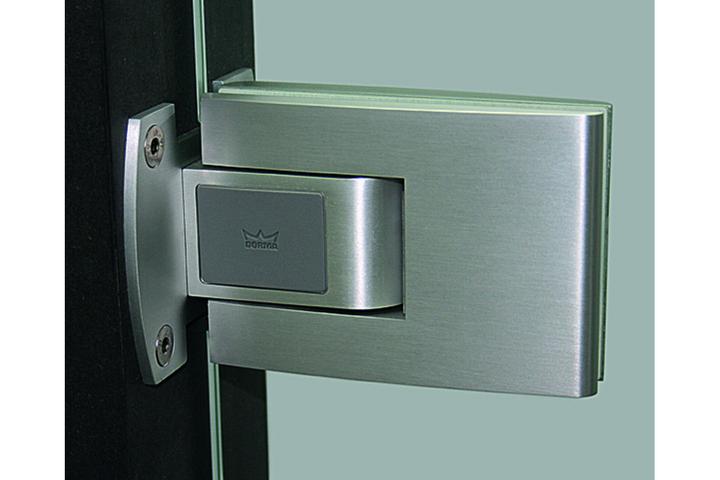

3. Dormakaba Swing door hinges TENSOR
Band with spring-assisted self-closing function without damping. Max. torque 12 Nm (with 2 bands). Application area: single or double-leaf interior doors. Suitable for humid environments (not for sauna applications). Versions available for wall or frame mounting (with surface-mounted or recessed mounting plate) as well as for mounting on glass side panels. Max. side panel width 1500 mm. Locking point at 90° opening angle relative to the zero position. Quick and easy zero position adjustment. TÜV testing and monitoring regarding quality and production process with confirmed 500,000 movement cycles. Not suitable for hinged doors.
Locking point: 90°. Glass thickness (mm): 8, 10, and 12. Material: Aluminum with stainless steel effect. Mounting type: Glass-wall. Max. leaf width (mm): 1000. Max. leaf height (mm): 2500. Type: Tensioner. Max. load capacity (kg): 65. Leaf width from (mm): 700. Brand: DORMA-Glas. Contents (PAA): 1.

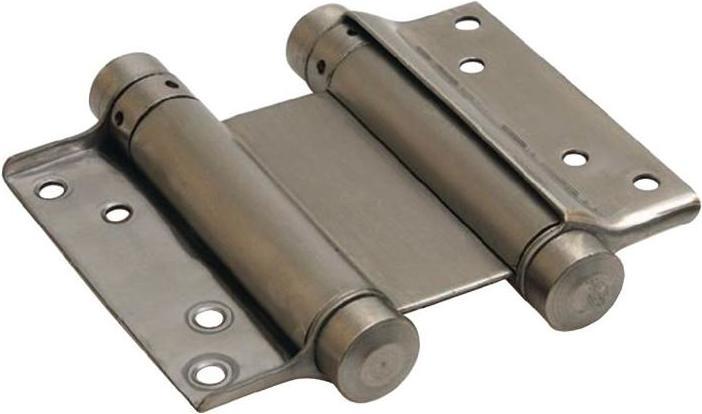

4. Deni Swing door hinges stainless steel Size 36 Length 150 mm Door thickness 35-40 mm
Can be used both sides · steel · packed in pairs
Content amount: 2 piece per Cardboard box.
Door hinge
EUR519,–
Deni Swing door hinges stainless steel Size 36 Length 150 mm Door thickness 35-40 mm

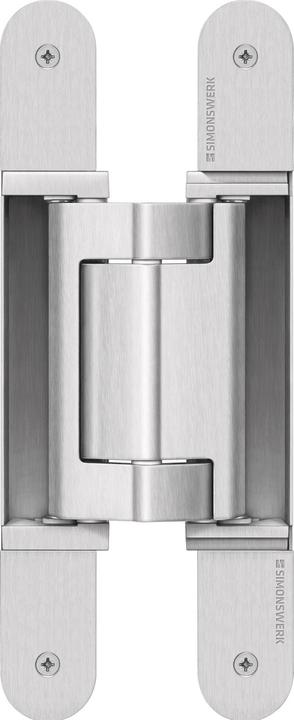

5. Simonswerk Object tapes TECTUS TE 640 3D A8
The TECTUS TE 640 3D A8 concealed hinges from Simonswerk are specifically designed for flush doors and offer an innovative solution for door hardware. These hinges are completely concealed and are suitable for both wooden and steel frames. They feature a maintenance-free sliding bearing technology that ensures smooth functionality. With an opening angle of up to 180°, they allow for flexible use and are suitable for both left and right door installations. The identical milling for the frame and leaf parts simplifies installation and provides a uniform appearance. A standout feature is the three-dimensional adjustability, which allows for adjustments in side, height, and pressure to ensure precise door alignment. These characteristics make the TECTUS TE 640 3D A8 an ideal choice for heavy object doors with overlays of up to 8 mm.
- Maintenance-free sliding bearing technology for long-term reliability
- Opening angle up to 180° for maximum flexibility
- Three-dimensional adjustability for precise adjustments
- Suitable for leaf weights of up to 160 kg.

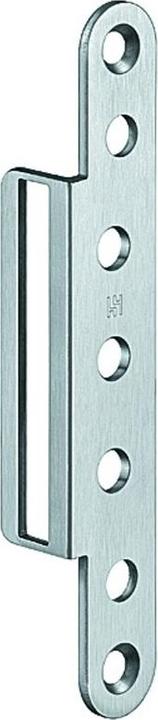

6. Simonswerk Cover angle VX 75
The VX 75 cover angle from Simonswerk is a high-quality hinge specifically designed for use on wooden frames. This product allows for an optical adjustment of the VX mounting elements to the hinges, creating a harmonious and aesthetic connection between the components. The cover angles are available in two types: Type KK with a square angle and square end, and Type KR with a square angle and rounded end. This flexibility in design allows the cover angle to be adapted to various requirements and preferences. The use of stainless steel as the material ensures durability and resilience, while the matte brushed surface provides an appealing look. The cover angles are sold separately from the mounting elements and offer an ideal solution for demanding applications in interior construction.
- Made from high-quality stainless steel for increased durability
- Available in two types: square and rounded for flexible design options
- Specifically designed for optical adjustment to wooden frames and hinges.

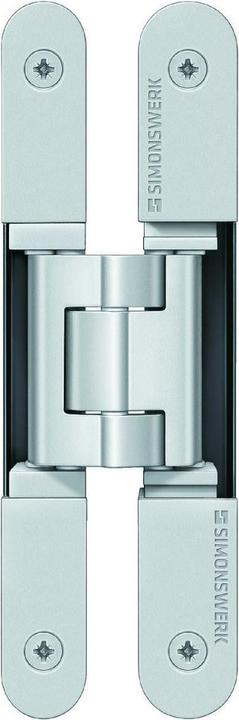

7. Simonswerk TECTUS TE 240 3D object hinges
The TECTUS TE 240 3D hinge system from Simonswerk is an innovative solution for door fittings that allows for seamless integration into wooden or steel frames. These hinges are specifically designed for flush and rebated interior doors and offer a concealed installation that is both aesthetically pleasing and functional. The maintenance-free sliding bearing technology ensures smooth functionality and durability. With a maximum opening angle of up to 180°, these hinges provide flexible usage and are suitable for both left and right-handed applications. The 3D adjustability allows for precise adjustments in three dimensions, significantly simplifying installation and alignment.
- Maintenance-free sliding bearing technology for long-term reliability
- Maximum opening angle of 180° for optimal accessibility
- 3D adjustability: +/- 3 mm in width and height, +/- 1.5 mm in pressure
- Suitable for double doors weighing up to 60 kg.

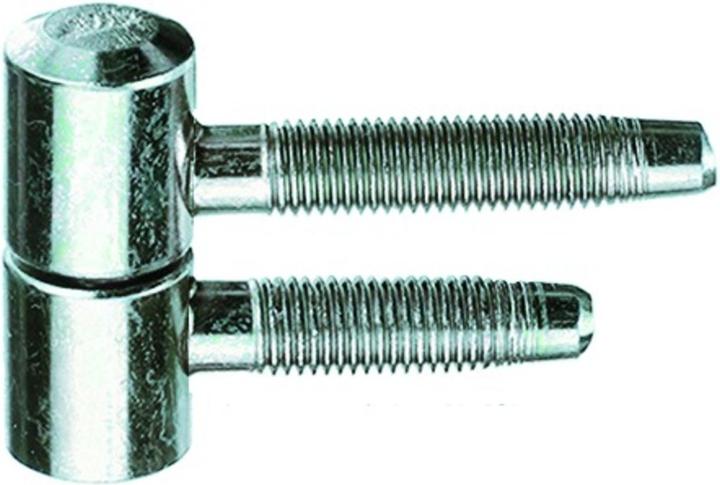

8. Anuba Drill-in tapes model B (CH standard)
The Anuba model B (CH standard) concealed hinges are high-quality window fittings specifically designed for use in windows and furniture. These fittings are characterized by their robust steel construction, ensuring high durability and reliability. They are available in various types suitable for different applications, including flush doors, frame doors, and windows with butt hinges. The concealed hinges are designed for easy installation while providing secure functionality. With an appealing design and a galvanized surface, they are not only functional but also aesthetically pleasing. These fittings are an ideal choice for anyone who values quality and safety.
- Made from high-quality steel for enhanced durability
- Versatile for use in windows, flush doors, and frame doors
- Easy installation due to thoughtful design
- Galvanized surface for additional corrosion protection.
9. GAH Construction hinge type K04 2-part for welding Stainless steel round head 120/30/9/60 mm
The K04 construction hinge from GAH-Alberts is a high-quality, two-part hinge specifically designed for metal construction. Made from robust stainless steel, it offers a reliable and durable solution for various applications. The hinge is suitable for welding, ensuring a strong and permanent connection. With a material thickness of 3 mm and a thoughtful design, it is ideal for use in demanding environments. The precise dimensions and the ability to install the hinge on either the left or right side make it versatile. This product is an excellent choice for professionals who value quality and functionality.
- Made from high-quality stainless steel for durability and corrosion resistance
- Two-part design allows for easy assembly and adjustment
- Suitable for use in metal construction and other industrial applications
- Weldable design for a secure and lasting connection.
Door hinge
EUR20,37
GAH Construction hinge type K04 2-part for welding Stainless steel round head 120/30/9/60 mm

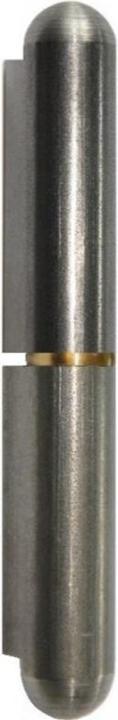

10. Briner Welding band rolls type 20
Fixed steel pin, brass intermediate ring.
