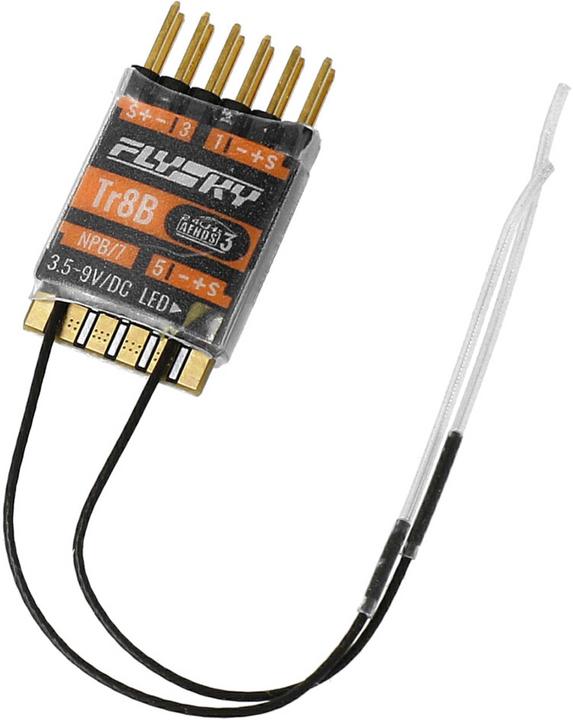

The Tr8B receiver based on AFHDS 3 protocol(third-generation automatic frequency hopping digital system)is micro receiver with 8 PWM channels. It features two button antennas, bidirectional data transmission and data returning. It supports 2 Newport function interfaces. Support battery voltage detection function

Product Designation: Tr8B

• Compatible Transmitters: Transmitters with AFHDS 3 protocol, such as PL18 or NB4 series

• Compatible Models : Indoor aircraft, gliders, cars, boats, fixed-wing aircraft or robots.

• PWM Channel: 8

• RF: 2.4GHz ISM

• 2.4G Protocol: AFHDS 3

• Antenna: Two antennas (ipex4)

• Maximum Power: < 20dBm (e.i.r.p.) ?EU?

• Input Power: 3.5-9V/DC

• Working Current: < 30mA?5V?

• Data Output: PWM/PPM/i-BUS2/i-BUS/S.BUS

• Temperature Range: -10? ~ +85?

• Humidity Range: 20% ~ 95%

• Online Update: Yes

• Distance: >1000m (Air distance without interference)

• Dimensions: 19.5*14.6*3mm (Excluding pins and antennas)

• Weight: 0.9g (Excluding pins and antennas) 2g (Including 4*3 pins and two antennas)

• Certifications: CE, FCC ID: 2A2UNTR8B00

FS058.
