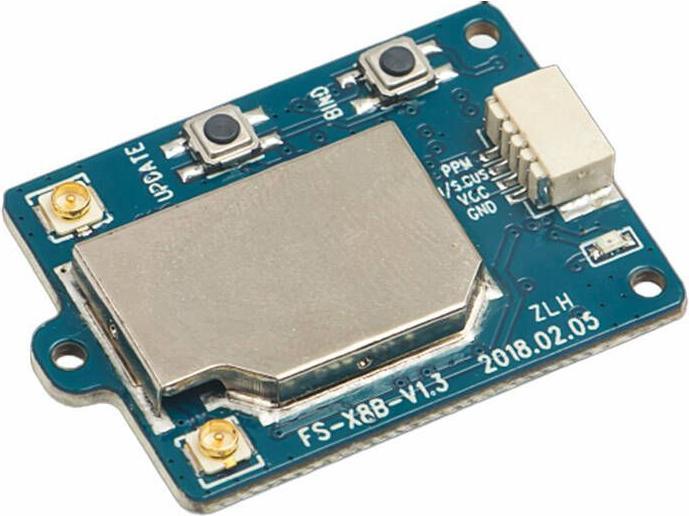

FlySky FS-X8B receiver, 8 channels AFHDS 2A

The FlySky FS-X8B receiver is an advanced wireless communication device operating at 2.4GHz, using the AFHDS 2A protocol. It offers a range of 500 to 1,500 meters, a dual antenna for increased signal stability, and support for RSSI function. It operates over a wide voltage range of 4.0-8.4V and temperatures of -10℃ to +60℃. Equipped with PPM, i.bus, and s.bus ports, it enables online updates. Its compact size (32x22x7.5mm) and low weight (3.7g) make it ideal for small RC models, while CE, MIC, RCM, and FCC ID: N4ZX8B00 certifications guarantee compliance with international standards.

Manufacturer: FlySky
Product model: FS-X8B
PWM channel: None
Wireless frequency: 2.4 GHz
Wireless protocol: AFHDS 2A
Range: 500 - 1500m (in air)
Antenna type: Dual antenna (93mm * 2)
Power supply: 4.0-8.4V
RSSI: Supported
Data port: PPM / i.bus / s.bus
Temperature range: -10 ℃ - + 60 ℃
Humidity range: 20% - 95%
Online update: Yes
Dimensions: 32 x 22 x 7.5 mm
Weight: 3.7g
Certifications: CE, MIC, RCM, FCC ID N4ZX8B00.
