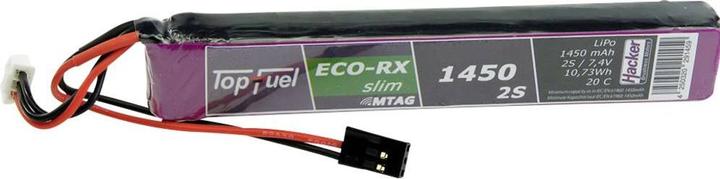

TopFuel LiPo 20C ECO-X 1450mAh 2S Slim RX MTAG

Product Description and Features

High-quality and durable LiPo battery. Due to its slim design, it is perfectly suited for narrow fuselages.

Ideal for powering receivers in all models where weight and size matter.

Battery Connections:

• JR Connector
• XH Balancer Plug

Internal Chip for Battery Telemetry:
The passive MTAG chip stores battery data such as type, number of cells, capacity, C-rate, or battery ID. These values can be read out with an external NFC sensor and transferred to the transmitter telemetry if needed.

The built-in MTAG chip allows for manual or automatic counting and storage of charge cycles. When using multiple identical batteries in series or parallel operation, more effective active battery management becomes possible.

Note: It is up to the user whether to utilize the MTAG function or not. The TopFuel battery can be used without MTAG like any regular battery.

Technical Specifications:

• Battery Type: LiPo
• Configuration: 2S
• Cells: 2S
• Nominal Voltage [V]: 7.4V
• Capacity [mAh]: 1450
• C-Rate: 20C
• Balancer Connector: XH

Dimensions and Weights:

• Length [mm]: 125
• Width [mm]: 14
• Height [mm]: 20
• Weight [g]: 70.5.
