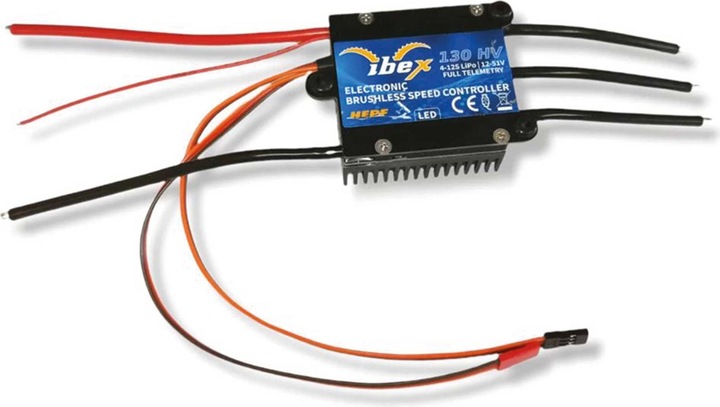

With the IBEX product line, we present advanced speed controllers for sensorless brushless motors, exclusively for use in RC aircraft models. Featuring integrated telemetry and various options for user configuration, these controllers offer high efficiency, low weight, and precise motor control.

Features

• Compact dimensions combined with powerful motor control.
• Overvoltage and undervoltage protection, overtemperature protection, motor lock protection.
• Configurable current limit.
• Optically isolated throttle input.
• Safety shutdown in case of loss of throttle signal.
• Configurable acceleration, timing, electromagnetic brake, etc.
• Low noise generation due to high-frequency switching.
• Reverse function available when operating with Jeti Duplex System.
• Automatic telemetry detection: Duplex EX, Hott, MSB, S.Bus2, Powerbox.
• Telemetry (depending on the RC system): voltage, current, power, capacity, temperature, RPM, energy.
• Recording of minimum and maximum telemetry values.
• Propeller positioning using optional Hall sensor.
• Detection of motor parameters via temperature sensor (with some Hemotec motors).
• Configuration via the transmitter (Jeti/Graupner) or an external terminal (JETIBOX/SMART-BOX).
• Firmware updates via USB interface.
• Languages: CZ/DE/EN/FR/IT.

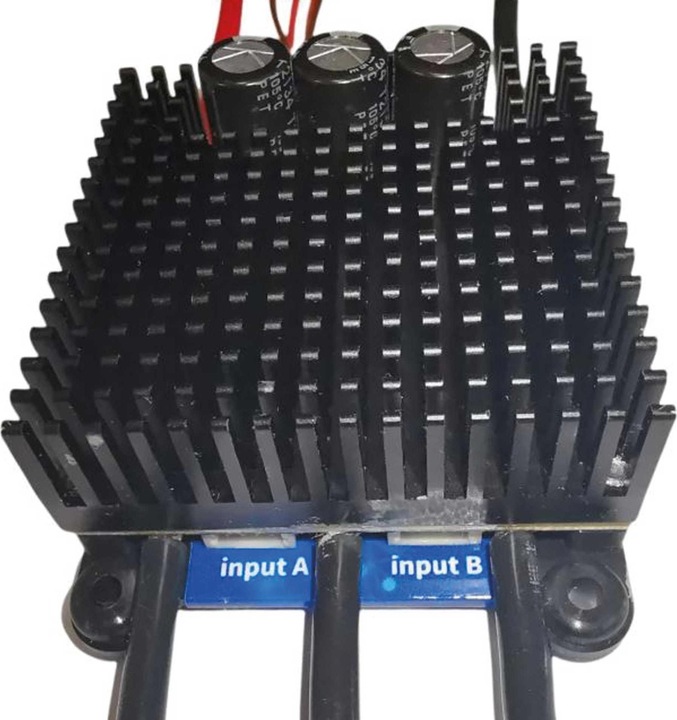

External connections for

• Propeller positioning.
• Motor temperature.
• Motor ID (motor parameters for controller).
• RPM out.
• Controller active (configurable).

Telemetry values (vary depending on transmission system)

• Current.
• Voltage.
• Capacity.
• RPM.
• Power.
• Temperature.
• Motor temperature (when connected to IN A).
• Status.

Supported telemetry protocols

• Jeti.
• Graupner.
• Futaba S-B.
• Multiplex.
• Powerbox.

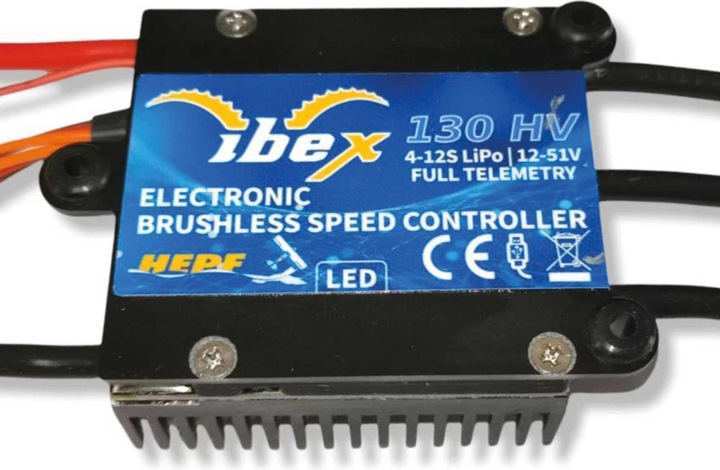

IBEX130.
