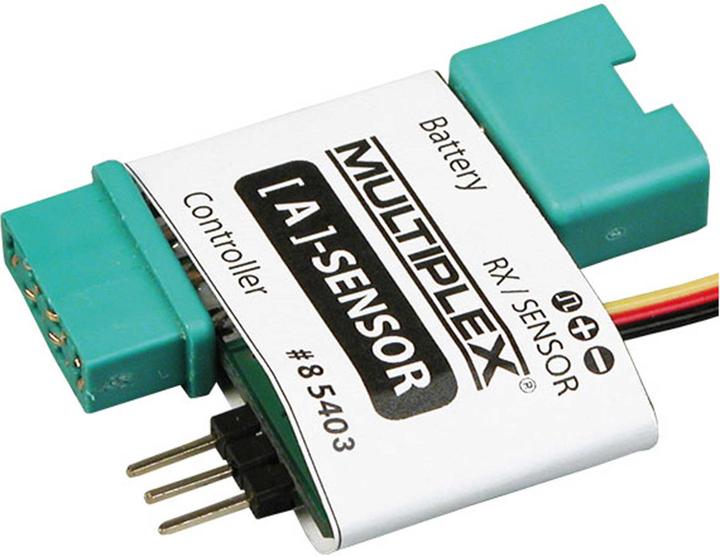

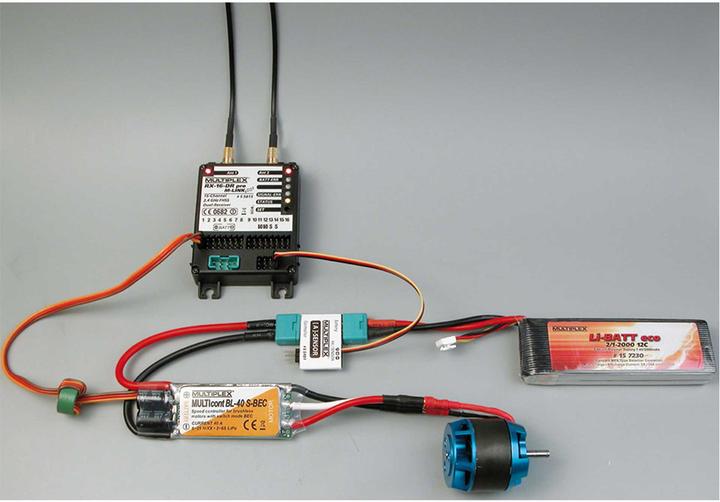

Measure currents up to 35 A. Equipped with an M6 connector system, the sensor is placed between the battery and the load to measure, for example, the current of the electric drive. After activating the charge counter with the MULTImate or via the PC program "Sensor DataManager," you will no longer fly based on a timer but according to the actual remaining charge of the drive battery. The current sensor thus serves as your electronic fuel gauge. It can be activated or configured using MULTImate or "Sensor DataManager":

• Address (display line on the sender) where the current is displayed
• Upper alarm: Upper current value at which an alarm is triggered on the sender
• Lower alarm: Lower current value at which an alarm is triggered on the sender
• Option: Additional output of minimum, average, or maximum current
• Option address: Address (display line on the sender) where the option value is displayed
• Address: Address (display line on the sender) where the battery capacity, extracted capacity, or remaining capacity is displayed
• Battery capacity: Capacity of the connected battery
• Display: What should be displayed: battery capacity, extracted capacity, or remaining capacity
• Alarm: Capacity value at which an alarm should occur

Technical specifications:

• Max current: 35 A
• Resolution: 0.1 A
• Dimensions of housing (L x W x H): 33 x 31 x 7 mm
• Weight: approximately 12 g.
